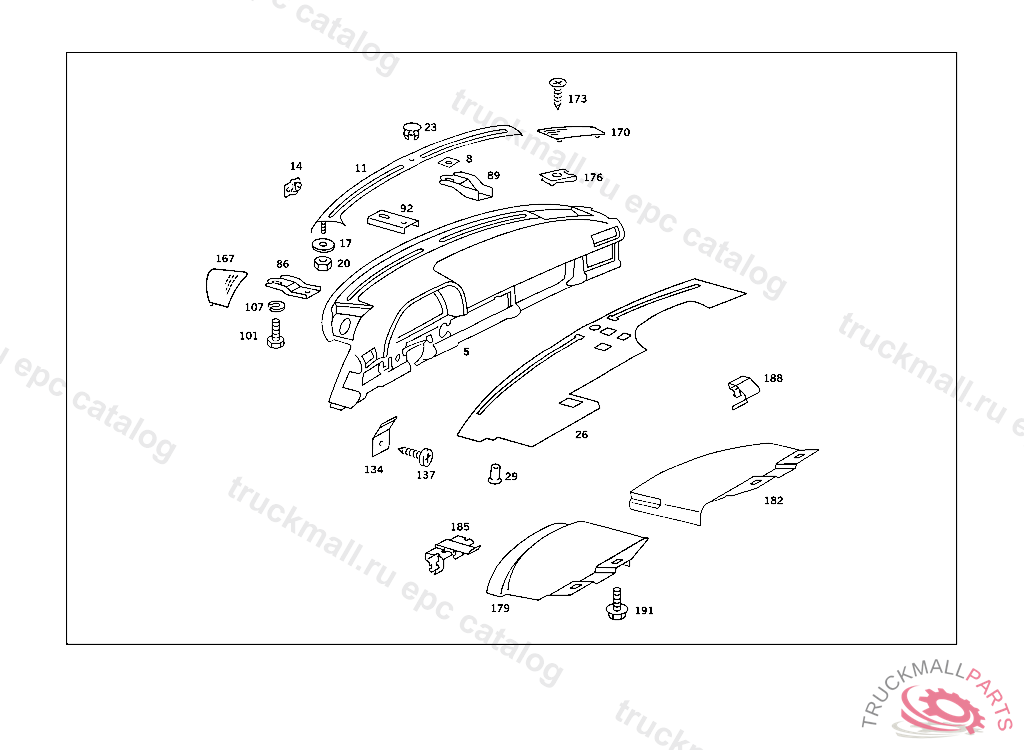

Поз.
Артикул
Описание
5
INSTRUMENT PANEL
5
INSTRUMENT PANEL
8
PLATE
11
COVERING
14
LOCK GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
17
WASHER , Replaced By: N009021004207
17
WASHER COVERING TO CYCLONE AIR TRAP
20
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
23
PLUG DOOR HANDLE TO REAR DOOR
86
SCREW
89
COMBINATION BOLT INSTRUMENT PANEL TO FRONT PANEL PILLAR
89
SCREW PUMP TO BRACKET
92
SCREW , Replaced By: N304017008016
101
NUT CLAMP TO BRACKET
101
NUT , Replaced By: N913019006000
101
NUT , Replaced By: N913012006001
107
WASHER
134
SHEET METAL SCREW , Replaced By: N000000000453
134
SHEET METAL SCREW MODULE TO HOUSING
137
WASHER
137
WASHER , Replaced By: N000125004319
137
WASHER BRACKET TO SUPPORT
167
COVERING , Replaced By: A1266802417
167
COVERING BELOW INSTRUMENT PANEL,LEFT
167
COVERING
170
COVERING BELOW INSTRUMENT PANEL, RIGHT
170
COVERING BELOW INSTRUMENT PANEL, RIGHT
170
COVERING BELOW INSTRUMENT PANEL, RIGHT
170
COVERING , Replaced By: A1266802517
176
CLIP COVERING TO FIRE WALL INSULATION
179
SCREW CONTROL UNIT TO END DUCT
