Поз.
Артикул
Описание
5

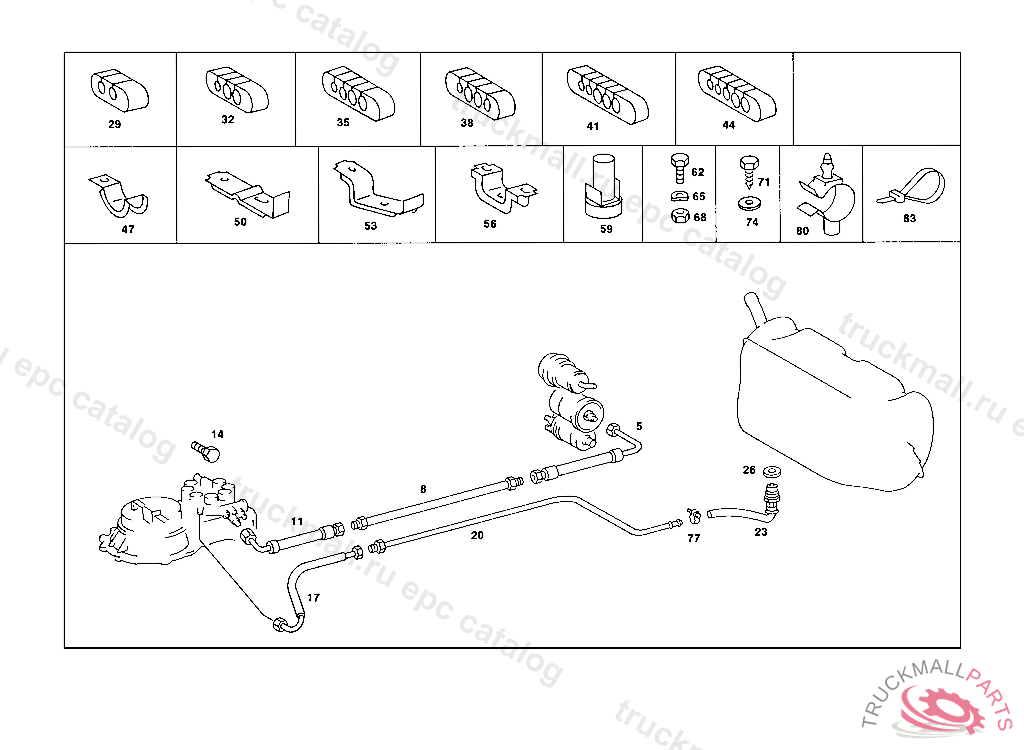

FUEL HOSE FROM FUEL FILTER TO FEED LINE
5
FUEL HOSE FROM FUEL FILTER TO FEED LINE,A 079438
8
LINE FEED LINE,A 281436
8
LINE , Replaced By: A1264704064, +001A1264704164, +001A1264760284
11
FUEL HOSE FROM FEED LINE TO ENGINE
11
FUEL HOSE FROM FEED LINE TO ENGINE
14
SCREW COVER PLATE TO COVER PLATE M 6 X 10
14
SCREW , Replaced By: N304017006034
17
FUEL HOSE FROM ENGINE TO RETURN LINE
17
FUEL HOSE FROM ENGINE TO RETURN LINE
20
LINE RETURN LINE,A 281435
20
LINE , Replaced By: A1264704164, +001A1264704064, +001A1264760284
23
FUEL HOSE , Replaced By: A1264704675
23
FUEL HOSE RETURN LINE
26
SEAL RINGTO 000 553 03 05,000 553 18 05,
29
RUBBER SECTION20 MM, ORDER BY THE METER
32
DAMPING STRIP FUEL LINES TO BODY
35
DAMPING STRIP FUEL LINES TO BODY,A 281435
38
DAMPING STRIP FUEL LINES TO BODY
41
DAMPING STRIP
44
DAMPING STRIP FUEL LINES TO VEHICLE FLOOR
47
CLAMP
50
CLAMP FUEL LINES TO BODY 93 MM,A 281436
50
CLAMP FUEL AND BRAKE LINES TO FRAME FLOOR UNIT
53
CLAMP
53
CLAMP FUEL LINES TO COWL
53
CLAMP FUEL & BRAKE LINES TO LEFT SIDE MEMBER
56
CLAMP , Replaced By: A1129950222
56
CLAMP
59
SCREW LINES UNDER FUEL TANK
62
SCREW COVER PLATE TO COVER PLATE M 6 X 10
62
SCREW , Replaced By: N304017006034
62
SCREW SHUT-OFF VALVE TO BRACKET
65
SPRING WASHER LICENSE PLATE TO BRACKET
68
NUT BALL PIVOT TO LEVER
71
SHEET METAL SCREW VALVE TO WINDOW SILL
71
SHEET METAL SCREW , NOT USED
74
RUBBER RING SIGNAL LAMP TO ROOF
74
RUBBER RING EMERGENCY LANTERN TO CAB
77
HOSE CLAMP HOSE FASTENING 9/13MM
80
CLAMP , Replaced By: A0004760436
80
CLAMP , Replaced By: A0004760436
80
BRACKET LINE MOUNTING 11 MM
83
LOOM TIE , Replaced By: A0019974390
83
LOOM TIE TO MOUNT PLASTIC PIPING
