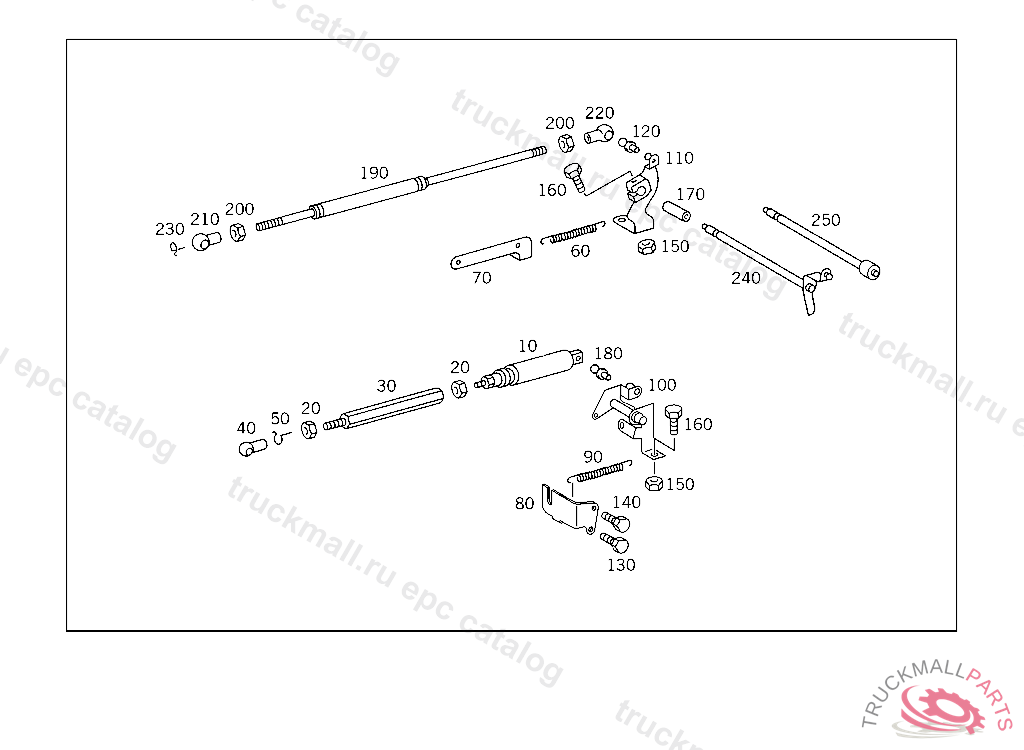

Поз.
Артикул
Описание
60
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
70
BRACKET
110
LEVER CONTROL LEVER
120
BALL PIVOT , Replaced By: A3129910120
120
BALL PIVOT
150
NUT , Replaced By: N304032006004
160
SCREW LEVER TO THROTTLE VALVE SHAFT
170
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
180
BALL PIVOT GOVERNOR SHAFT LEVER
180
BALL PIVOT GOVERNOR SHAFT LEVER
190
ROD SPRING-LOADED
200
NUT
210
BALL SOCKET AT CONTROL LEVER
220
BALL SOCKET PULL ROD TO LEVER
230
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
240
SHAFT (CONTROL SHAFT)
