Поз.
Артикул
Описание

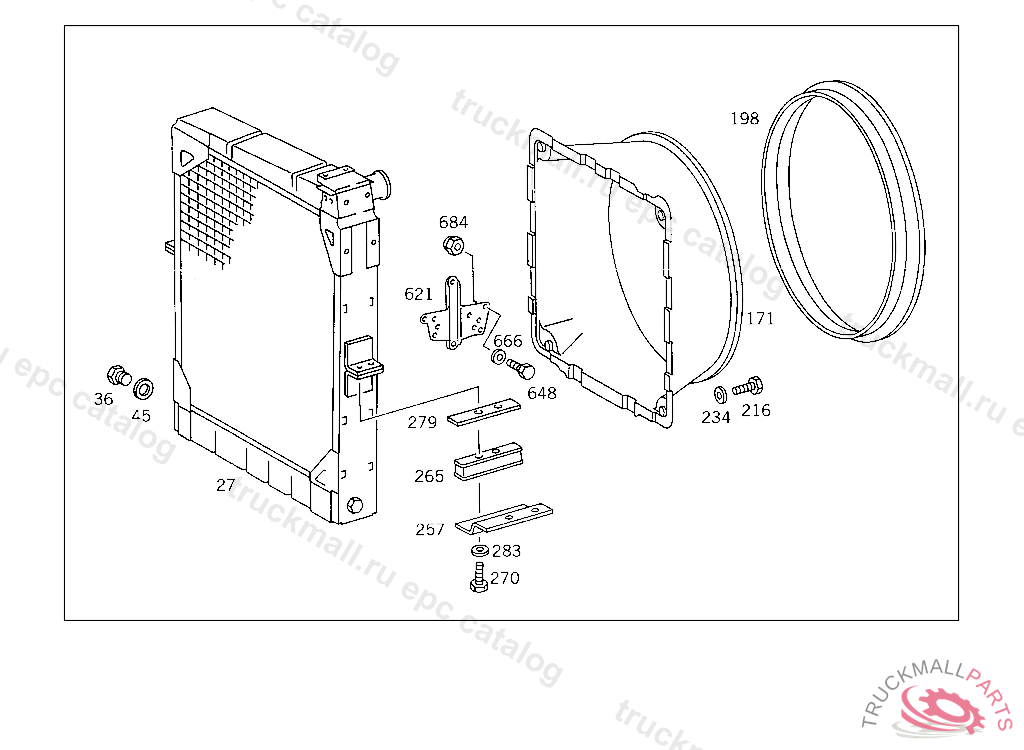

27
RADIATOR WATER BEHR
27
RADIATOR WATER BEHR
27
RADIATOR WATER BEHR
27
RADIATOR WATER
27
RADIATOR"BEHR", NOT USED
27
RADIATOR
27
RADIATOR WATER BEHR
27
RADIATOR , Replaced By: A0015015501
36
SCREW PLUG , Replaced By: N007604014101
36
SCREW PLUG WATER DRAIN
45
SEAL RING FUEL LINE TO FEED PUMP
171
FAN SHROUD RADIATOR
198
BOOT FAN SHROUD TO FAN RING
198
BOOT FAN SHROUD TO FAN RING
216
SCREW PUMP TO BRACKET
216
SCREW , Replaced By: N304017006018
216
SCREW , Replaced By: N304017006016
216
SCREW COVER PLATE TO COVER PLATE M 6 X 12
234
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
257
SUPPORT RADIATOR,LEFT
257
SUPPORT RADIATOR,RIGHT
265
RUBBER MOUNTING RADIATOR
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
270
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW , Replaced By: N304017010028
270
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
270
SCREW EXHAUST PIPE TO BRACKET
279
SHIM RUBBER MOUNTING TO BRACKET
279
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
279
SHIM RUBBER MOUNTING TO BRACKET
283
WASHER , Replaced By: N000125010532
283
WASHER RADIATOR TO RUBBER MOUNTING
621
BRACKET OIL DIPSTICK GUIDE TUBE
648
SCREW REDUCTION VALVE TO BRACKET
648
SCREW , Replaced By: A0079900801
666
WASHER , Replaced By: N000125008443
666
WASHER EXHAUST MUFFLER TO STRAP
684
NUT , Replaced By: N913004008001
684
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
CLAMP , Replaced By: N916017011000
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR , Replaced By: A3815010801
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
BRACKET RADIATOR MOUNTING,4 428844
999
SUPPORT RADIATOR
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
CONNECTOR AT WATER PUMP
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
FLANGE ENGINE BREATHING
999
LINE HEATING AND BREATHING
