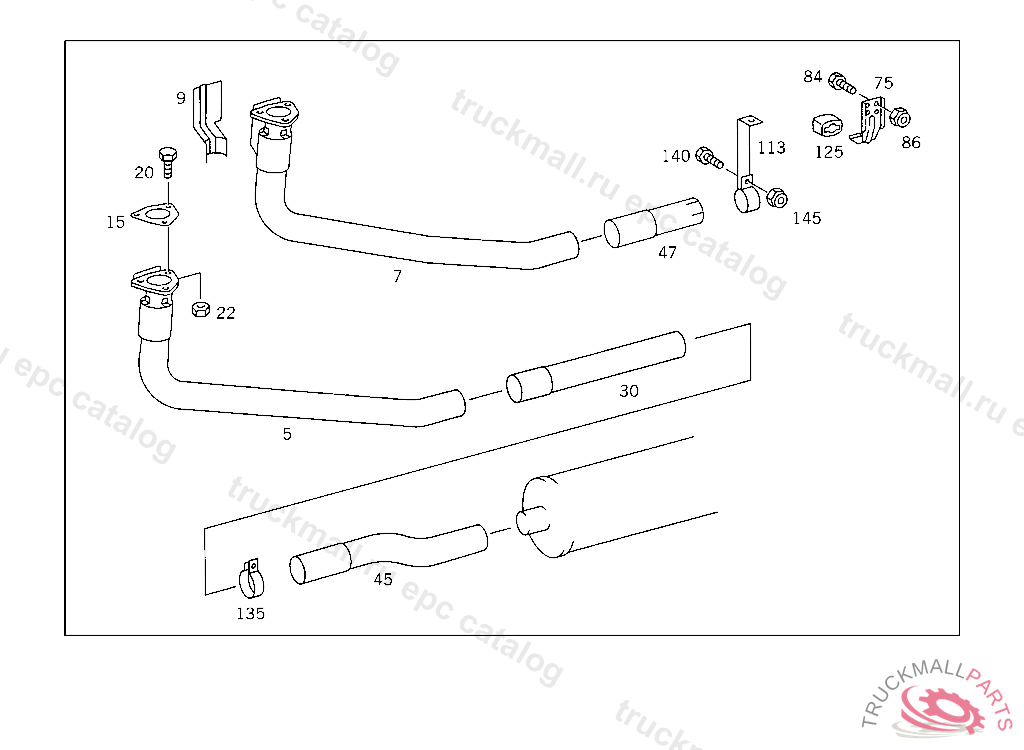

Поз.
Артикул
Описание
5
EXHAUST PIPE , Replaced By: A3814900319
5
EXHAUST PIPE FRONT
9
PROTECTIVE PLATE FRONT EXHAUST PIPE
15
FLANGE GASKET , Replaced By: A4424920080
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
22
NUT STRAP TO SUPPORT,5 149419
30
CONNECTOR INTERMEDIATE PIECE,FRONT
45
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER
75
SUPPORT EXHAUST
75
SUPPORT REAR EXHAUST PIPE TO FRAME
84
SCREW BRACKET TO CROSS CONNECTION STRUT
84
SCREW , Replaced By: N304017008034
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
NUT , Replaced By: N913004008001
125
DAMPING PAD PARTICLE FILTER
135
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
140
SCREW , Replaced By: N304017008034
140
SCREW BRACKET TO CROSS CONNECTION STRUT
145
NUT , Replaced By: N913004008001
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
BRACKET , Replaced By: A3814923841, +001N071555075502
999
SUPPORT , Replaced By: A3604910016
999
CONNECTOR , Replaced By: A3024920509
