Поз.
Артикул
Описание

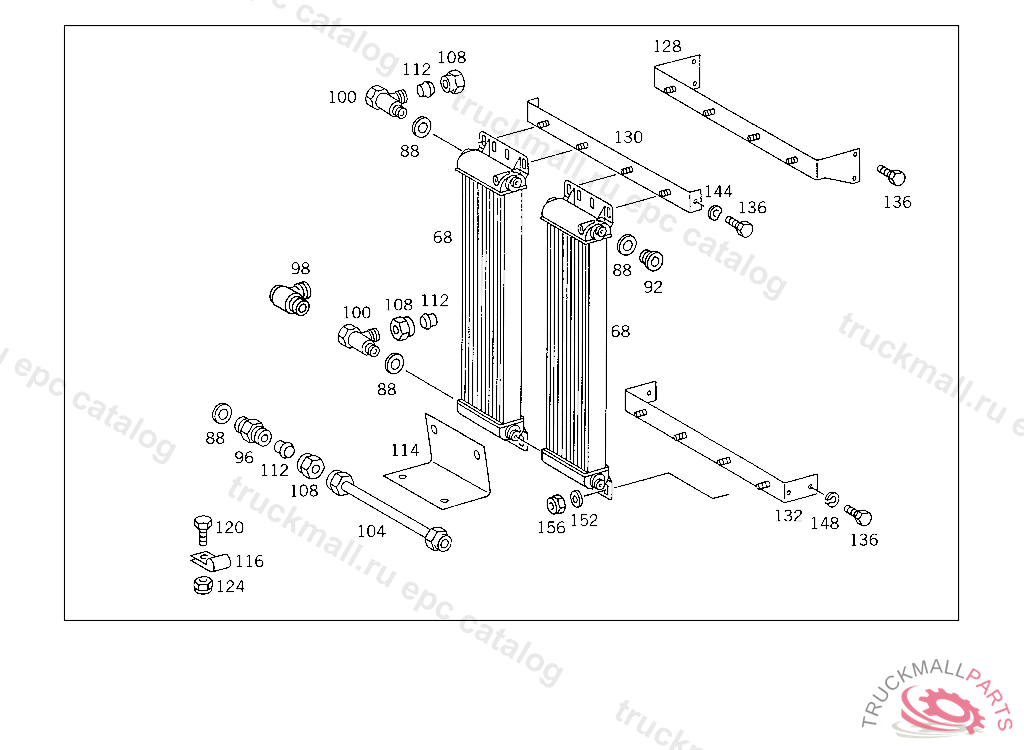

68
RADIATOR OIL,5 360279
68
RADIATOR OIL,5 360280
88
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
92
SCREW PLUG OIL COOLER,5 360280
92
SCREW PLUG , Replaced By: N000908026008
92
SCREW PLUG , Replaced By: A0009973532
96
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
98
ELBOW FITTING SUCTION LINE TO OIL PUMP
100
SCREW CONNECTION SUCTION LINE TO OIL PUMP
104
OIL PIPE OIL COOLER CONNECTION
104
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
104
LINE , Replaced By: A0004291601
108
UNION NUT LINE CONNECTION, Replaced By: N000000006243
108
NUT LINE CONNECTION
112
SEAL CONE LINE CONNECTION
112
GLAND , Replaced By: A0019901267
114
BRACKET LINE TO RADIATOR,5 393906
116
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
116
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
SCREW , Replaced By: N304017006016
120
SCREW PUMP TO BRACKET
124
NUT PUMP TO BRACKET
124
NUT , Replaced By: N913004006001
128
BRACKET OIL COOLER TO RADIATOR
128
BRACKET OIL COOLER TO BRACKET
130
BRACKET OIL COOLER TO RADIATOR
132
BRACKET OIL COOLER TO BRACKET
132
BRACKET OIL COOLER TO RADIATOR
132
BRACKET OIL COOLER TO RADIATOR
136
SCREW CLAMP TO BRACKET AND TO PIPE
136
SCREW PUMP TO BRACKET
136
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
136
SCREW PIPE CLAMP
136
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
136
SCREW LICENSE PLATE TO BRACKET
136
SCREW , Replaced By: N304017006020
136
SCREW , Replaced By: N304017006016
136
SCREW , Replaced By: N304017008039
136
SCREW , Replaced By: N304017008021
136
SCREW , Replaced By: N304017008016
136
SCREW CAB FLOOR COVERING M 6X25
144
SPRING WASHER SHIFTING CYLINDER TO YOKE
144
SPRING WASHER LICENSE PLATE TO BRACKET
148
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
148
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
152
WASHER HIGH PRESSURE HOSE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
152
WASHER , Replaced By: N009021006208
156
NUT , Replaced By: N913004008001
156
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LINE , Replaced By: A0005516456
999
RADIATOR ,4 706542
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
RADIATOR OIL, NOT USED
999
SCREW PLUG , Replaced By: N007604014101
999
FITTING , Replaced By: A0029906171
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
CLAMP FAN SHROUD TO FAN RING
999
FILTER OIL FILTER
999
BRACKET , Replaced By: A3812700241
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3604293140
999
LINE , Replaced By: A3815001472
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3832710140
999
BRACKET OIL LINES TO ENGINE
999
BRACKET OIL LINE TO CRANKCASE
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
SUPPORT RADIATOR MOUNTING,4 428845
999
CONNECTOR , Replaced By: A6205010223
999
BRACKET CABLE HARNESS TO LEAK LINE
999
BRACKET OIL FILTER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PANELLING CIRCULATING AIR
999
FITTING OIL FILTER
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BALL SOCKET ROD TO BALL PIVOT
999
LINE FEED, OIL COOLER
999
LINE RETURN, OIL COOLER
999
PIPE , Replaced By: A6152701396
999
PIPE , Replaced By: A6152701496
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
BRACKET OIL COOLER TO RADIATOR
999
RADIATOR
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
BRACKET OIL LINES TO ENGINE
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
PIPE , Replaced By: A6172704996
999
LINE , Replaced By: A0005516156
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE HEATING PIPE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
