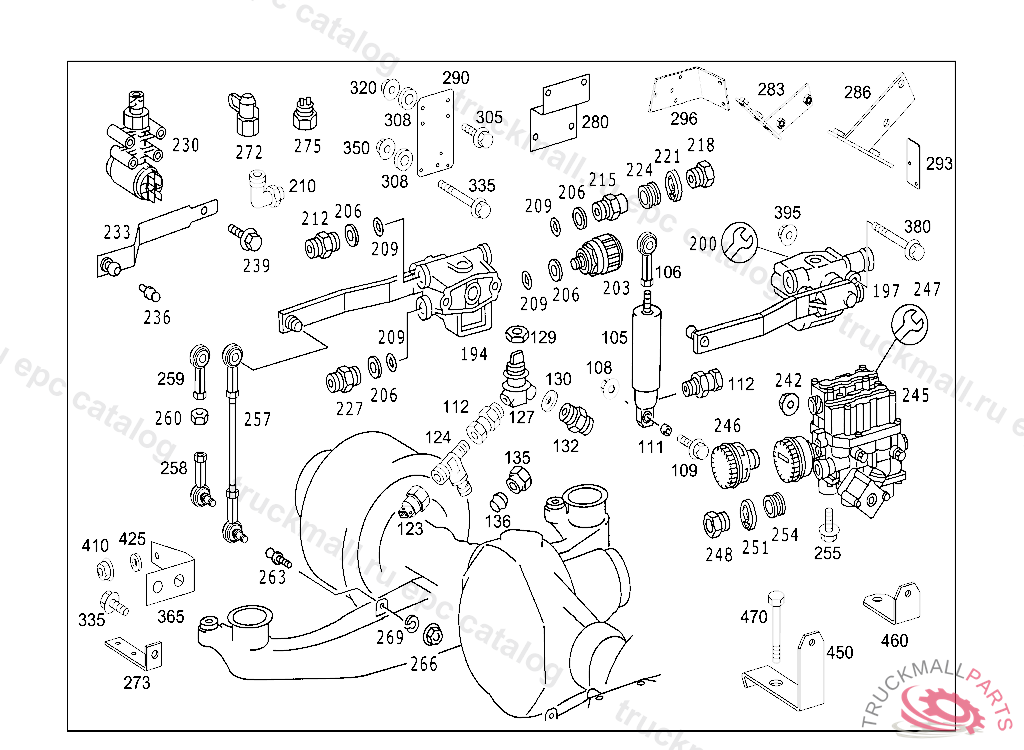

Поз.
Артикул
Описание
105
CYLINDER REAR AXLE PNEUMATIC SUSPENSION
106
CONICAL CUP (SOLENOID VALVE)
108
NUT HORN TO BRACKET M8
109
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
111
BUSHING LEVEL ADJUSTMENT VALVE TO BRACKET
112
CONNECTOR M10X1 (VOSS 230)
123
SWITCH LOCKING VALVE,CONNECTIONS: "12"
124
T-FITTING FROM PRESSURE REGULATOR TO T-FITTING
127
VALVE (3/2-WAY SOLENOID VALVE)
129
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
130
SEAL RING LINE CONNECTION
132
SCREW-IN FITTING , Replaced By: A0029978472
135
UNION NUT
136
GLAND , Replaced By: A0019901667
194
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
197
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
200
REPAIR KIT
203
FILTER
206
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
206
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
209
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
210
FITTING TWO-WAY VALVE,CONNECTIONS: "1","2"
212
FITTING LINE CONNECTION, Replaced By: N000000006446
212
SCREW-IN FITTING LINE CONNECTION
215
FITTING LINE CONNECTION
218
SCREW. UNION SCREW , Replaced By: A0009973734
221
LOCK , Replaced By: A0009945448
224
SEAL RING , Replaced By: A0009940747
227
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
230
SENDER UNIT FRONT AXLE
230
TRAVEL SENSOR SELF-LEVELLING DEVICE
233
ROD AT FRONT AXLE
233
ROD
236
BALL PIVOT
239
HEXAGON HEAD BOLT
242
NUT HORN TO BRACKET M8
245
VALVE (SOLENOID VALVE)
246
MUFFLER TRAILER CONTROL VALVE
247
247
247
REPAIR KIT (SOLENOID VALVE),K 186868
247
247
248
SCREW. UNION SCREW LINE CONNECTION
251
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
254
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
257
ROD , Replaced By: A3073200289
257
ROD LEVEL ADJUSTMENT VALVE CONTROL
257
ROD OPERATING ROD TO FRONT AXLE NAKATA
257
ROD OPERATING ROD TO FRONT AXLE, ONLY APPLICABLETO 382.058: D 308941,D 313183,D 316393,D 316398,D 316403,D 316405,D 316411,D 316568,D 316572,D 316575,D 316580,D 316584,D 316588,D 316593, D 316596,D 316869,D 316870,D 316871,D 316873,D 316876,D 316878,D 316880,D 316882,D 316884,D 316886,D 316888,D 316890,D 316892.
258
JOINT REAR AXLE PNEUMATIC SUSPENSION
259
BALL SOCKET REAR AXLE PNEUMATIC SUSPENSION
260
NUT
263
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
266
NUT HORN TO BRACKET M8
269
LOCK WASHER RAIL TO BATTERY SUPPORT
272
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
272
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
275
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
280
283
283
305
SCREW BRACKET TO CAB REAR PANEL M 8X20
305
SCREW , Replaced By: N910143008002
335
SCREW ON STOP M 8X65
335
SCREW , Replaced By: N910143008010
335
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
350
NUT ENGINE MOUNTING M8
350
NUT HORN TO BRACKET M8
999
GUIDE SIGN VALVE TO CAB
