Mercedes
›
BUS
›
O 500 R / 1830 / 30
›
382.177
›

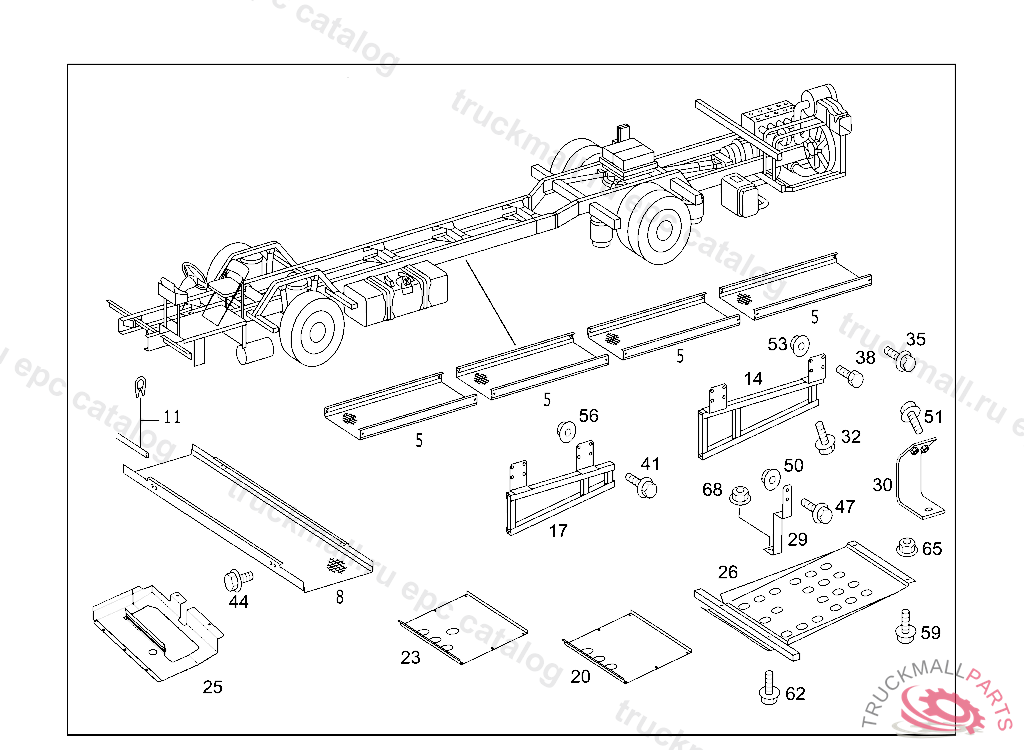

52 CHASSIS SHEET METAL
›
030 CHASSIS SHEET METAL IL. 1
Mercedes A3825240501 -
O 500 R / 1830 / 30 382.177
52 CHASSIS SHEET METAL - 030 CHASSIS SHEET METAL IL. 1
Поз.
Артикул
Описание
14
A3825200235
FRAME UNDERRUN PROTECTION,RIGHT
14
A3825200135
FRAME UNDERRUN PROTECTION,LEFT
20
A3825240501
PROTECTIVE PLATE
25
A3825004635
32
N910143008020
SCREW SPEED SENSOR TO REAR AXLE
35
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
38
A3829900401
SCREW ENGINE MOUNTING TO SIDE MEMBER M12X1,5X35 MM,D 665599
38
N910105012010
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
53
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
59
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
59
N910105006002
HEXAGON HEAD BOLT
65
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
