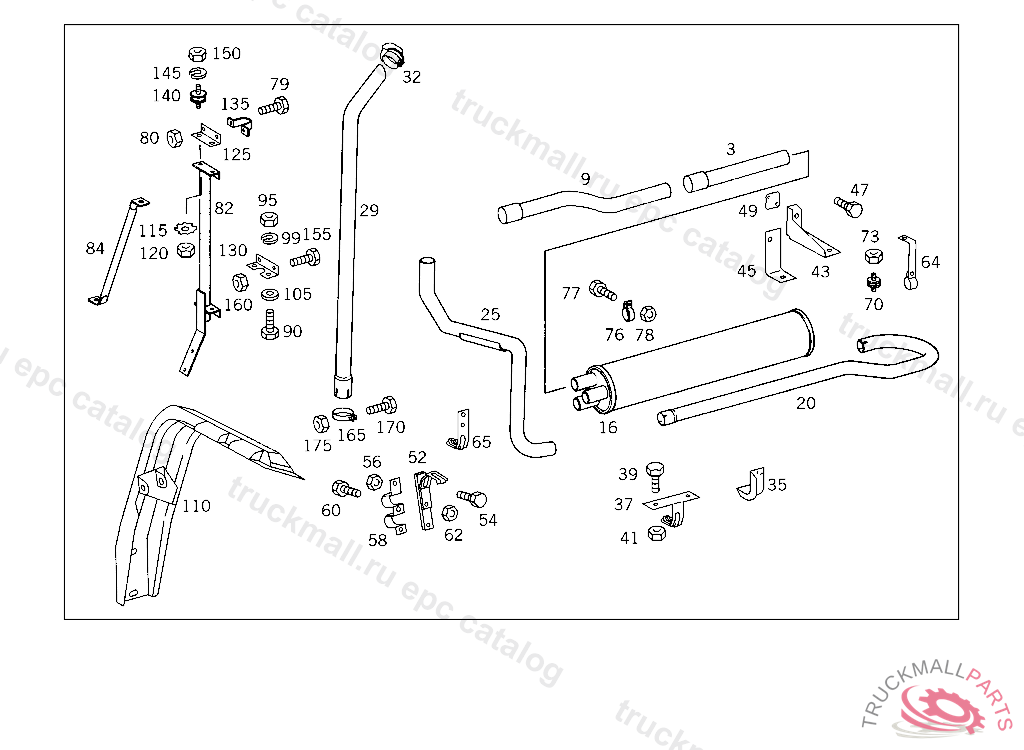

Поз.
Артикул
Описание
3
FRONT EXHAUST PIPE INTERMEDIATE PIECE,FRONT,4 726045
3
CONNECTOR INTERMEDIATE PIECE,FRONT
3
CONNECTOR INTERMEDIATE PIECE,FRONT
3
EXHAUST PIPE , Replaced By: A3814921801
9
FRONT EXHAUST PIPE AT MUFFLER
9
FRONT EXHAUST PIPE AT MUFFLER
9
FRONT EXHAUST PIPE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A3834920701
9
FRONT EXHAUST PIPE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A3834922201
16
EXHAUST MUFFLER
16
EXHAUST MUFFLER
16
EXHAUST MUFFLER
20
REAR EXHAUST PIPE LATERAL,4 726044
20
REAR EXHAUST PIPE LATERAL,4 726044
25
EXHAUST PIPE TOP CENTRAL
25
EXHAUST PIPE TOP CENTRAL,4 726044
25
EXHAUST PIPE TOP CENTRAL,4 726044
25
EXHAUST PIPE TOP CENTRAL
25
REAR EXHAUST PIPE , Replaced By: A3834900521
29
CONNECTOR (TAIL PIPE)
29
CONNECTOR (TAIL PIPE)
29
REAR EXHAUST PIPE ,4 726044, Replaced By: A3834920907, +001A0004900463
29
CONNECTOR (TAIL PIPE)
32
FLAP END PIECE TO EXHAUST PIPE,4 697327
35
SUPPORT REAR EXHAUST MUFFLER, FROM CHASSIS 4 912418 ALSO INSTELLAD ON 4 826907,4 835188,4 838921,4 830653,4 840379,4 840933,4 841852,4 842413,4 842955
35
SUPPORT REAR EXHAUST MUFFLER, FROM CHASSIS 4 912418 ALSO INSTELLAD ON 4 826907,4 835188,4 838921,4 830653,4 840379,4 840933,4 841852,4 842413,4 842955
37
SUPPORT REAR EXHAUST MUFFLER
37
SUPPORT REAR EXHAUST MUFFLER
39
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
39
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
41
NUT STRAP TO BRACKET
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
43
SUPPORT EXHAUST PIPE TO SIDE MEMBER,4 393597
43
SUPPORT EXHAUST PIPE TO SIDE MEMBER,4 393597
43
SUPPORT EXHAUST PIPE TO SIDE MEMBER,4 726044
43
SUPPORT EXHAUST PIPE TO SIDE MEMBER,4 726044
45
SUPPORT EXHAUST PIPE TO SIDE MEMBER,4 3935984 726044
47
SCREW SUPPORT TO FENDER
47
SCREW , Replaced By: N304017008018
49
BASE PLATE SUPPORT TO SIDE MEMBER,4 726044
52
BRACKET FRONT EXHAUST MUFFLER
52
BRACKET REAR EXHAUST MUFFLER, FROM CHASSIS 4 912418 ALSO INSTELLAD ON 4 826907,4 835188,4 838921,4 830653,4 840379,4 840933,4 841852,4 842413,4 842955
52
BRACKET REAR EXHAUST MUFFLER, FROM CHASSIS 4 726045-4 912417 EXCEPT FOR 4 826907,4 835188,4 838921,4 839653,4 840379,4 840933,4 841852,4 842413,4842955
52
BRACKET FRONT EXHAUST MUFFLER
52
BRACKET FRONT EXHAUST MUFFLER
52
BRACKET FRONT EXHAUST MUFFLER
52
BRACKET FRONT EXHAUST PIPE,4 726044
52
BRACKET REAR EXHAUST MUFFLER, FROM CHASSIS 4 912418 ALSO INSTELLAD ON 4 826907,4 835188,4 838921,4 830653,4 840379,4 840933,4 841852,4 842413,4 842955
52
BRACKET FRONT EXHAUST MUFFLER
54
SCREW , Replaced By: N304017008034
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
58
CLAMP FRONT EXHAUST PIPE TO BRACKET,4 726045
58
CLAMP UPPER EXHAUST PIPE TO FENDER
58
CLAMP FRONT EXHAUST PIPE TO BRACKET,4 726045
58
CLAMP UPPER EXHAUST PIPE TO FENDER
58
CLAMP FRONT EXHAUST PIPE TO BRACKET,4 726045
58
CLAMP FRONT EXHAUST PIPE TO BRACKET,4 726044
60
SCREW , Replaced By: N304017008034
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
64
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
64
BRACKET , Replaced By: A3834927941
64
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
64
BRACKET , Replaced By: A3814922241
64
BRACKET EXHAUST PIPE,4 3935984 726044 TO BE ADAPTED DURING ASSEMBLY
64
BRACKET , Replaced By: A3834923441
64
BRACKET EXHAUST PIPE,4 3935984 726044 TO BE ADAPTED DURING ASSEMBLY
65
BRACKET EXHAUST PIPE,4 726044
70
RUBBER BUFFER EXHAUST MUFFLER
70
RUBBER BUFFER BRACKET TO SUPPORT
73
NUT STRAP TO BRACKET
73
NUT STRAP TO BRACKET
73
NUT , Replaced By: N910113010000
76
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
76
CLAMP EXHAUST PIPE,4 726045
76
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
77
SCREW SUPPORT TO CROSS MEMBER M 10X28
78
NUT STRAP TO BRACKET
78
NUT , Replaced By: N910113010000
79
SCREW , Replaced By: N304017008034
80
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
NUT , Replaced By: N913004008001
82
BRACKET EXHAUST PIPE SUSPENSION
82
BRACKET EXHAUST PIPE SUSPENSION,4 726044
82
BRACKET EXHAUST PIPE SUSPENSION
84
BRACKET STRUT
84
BRACKET STRUT,4 726044
84
BRACKET STRUT
90
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726044
90
SCREW SUPPORT TO CROSS MEMBER M 10X28
90
SCREW SUPPORT TO CROSS MEMBER M 10X28
95
NUT STRAP TO BRACKET
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
99
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
105
WASHER RADIATOR TO RUBBER MOUNTING
105
WASHER , Replaced By: N000125010532
110
SUPPORT LEFT FRONT FENDER
115
TOOTHED WASHER BRACKET TO EXHAUST PIPE BRACKET
120
NUT BRACKET TO EXHAUST PIPE BRACKET
125
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726044
130
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726045
130
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726044
130
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726045
135
CLAMP UPPER EXHAUST PIPE TO FENDER
135
CLAMP UPPER EXHAUST PIPE TO BRACKET,4 726044
135
CLAMP UPPER EXHAUST PIPE TO FENDER
140
RUBBER BUFFER BRACKET TO SUPPORT
140
RUBBER BUFFER BRACKET TO SUPPORT
140
RUBBER BUFFER BRACKET TO SUPPORT
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
150
NUT BRACKET TO SUPPORT AND TO END PIECE
150
NUT BRACKET TO SUPPORT AND TO END PIECE
150
NUT BRACKET TO SUPPORT AND TO END PIECE
150
NUT BRACKET TO SUPPORT AND TO END PIECE
155
SCREW , Replaced By: N304017008034
155
SCREW SUPPORT TO CROSS MEMBER M 10X28
155
SCREW , Replaced By: N304017008034
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N910113010000
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT , Replaced By: N913004008001
165
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
170
SCREW , Replaced By: N304017008034
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
NUT , Replaced By: N913004008001
999
DAMPING PAD
999
DAMPING PAD , Replaced By: A3814920082
999
CONNECTOR , Replaced By: A3024920509
999
CONNECTOR REAR
999
CONNECTOR , Replaced By: A3604921907
999
CONNECTOR
999
EXHAUST PIPE REAR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
EXHAUST PIPE REAR
999
SUPPORT , Replaced By: A3604910016
999
SUPPORT EXHAUST
999
SUPPORT EXHAUST PIPE TO SIDE MEMBER
999
SUPPORT EXHAUST PIPE
999
FRONT EXHAUST PIPE AT MUFFLER
999
BRACKET EXHAUST PIPE
999
FRONT EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER
999
REAR EXHAUST PIPE REAR,4 613839
999
SUPPORT REAR EXHAUST PIPE TO FRAME,4 613840
999
REAR EXHAUST PIPE , Replaced By: A3814926804
999
SUPPORT REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3814926304
999
BRACKET EXHAUST
999
BRACKET EXHAUST
999
BRACKET , Replaced By: A3814922241
999
BRACKET EXHAUST PIPE
999
BRACKET , Replaced By: A3834927941
999
REAR EXHAUST PIPE , Replaced By: A3814926504
999
REAR EXHAUST PIPE , Replaced By: A3814927004
999
REAR EXHAUST PIPE TAIL PIPE,4 613840
999
REAR EXHAUST PIPE REAR,4 613840
999
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
REAR EXHAUST PIPE ,4 191699
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
BRACKET
999
CONNECTOR , Replaced By: A3604921507
999
CONNECTOR , Replaced By: A3604921907
999
BRACKET TAIL PIPES TO BRACKET
999
BRACKET EXHAUST
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3814923841, +001N071555075502
999
SUPPORT EXHAUST,4 613840
999
BRACKET EXHAUST
999
SUPPORT EXHAUST PIPE,4 613840
999
BRACKET , Replaced By: A3834927941
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
BRACKET , Replaced By: A3814922214
999
BRACKET , Replaced By: A3834927941
999
REAR EXHAUST PIPE REAR,4 613839
999
REAR EXHAUST PIPE , Replaced By: A3814926804
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET
