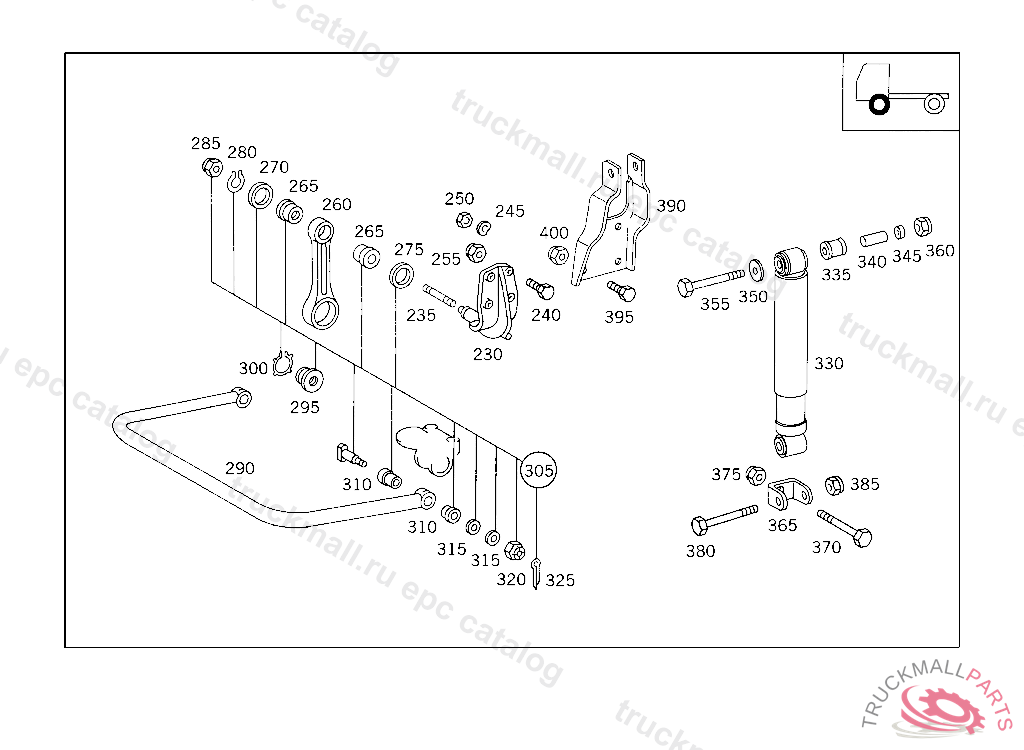

Поз.
Артикул
Описание
230
BEARING BRACKET , Replaced By: A3873200478, +002N000961014008, +002N000961014063, +004N000961014065
230
CONSOLE ,4 207081, Replaced By: A3873200578, +002N000961014008, +002N000961014063, +004N000961014065
230
CONSOLE ,4 207081, Replaced By: A3873200578, +002N000961014008, +002N000961014063, +004N000961014065
230
CONSOLE LINK TO LEFT SIDE MEMBER,4 207082
230
CONSOLE LINK TO RIGHT SIDE MEMBER,4 207082
235
STUD BOLT
240
SCREW EXHAUST PIPE TO BRACKET 14X1.5X50
240
SCREW MOUNTING TO CONSOLE M 14X55
240
SCREW , Replaced By: A9429901304
240
SCREW APPARATUS SUPPORT TO FRAME
240
SCREW , Replaced By: N308676014003
240
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
245
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
250
NUT BRACKET TO SIDE MEMBER,K 035196
255
NUT , Replaced By: N910113014000
255
NUT STEERING SUPPORT TO FRAME
255
NUT , Replaced By: N910113014001
255
NUT BRACKET TO SIDE MEMBER
260
LINK ,4 707917, Replaced By: A3873230816, +001A3873230185
260
LINK TORSION BAR TO CONSOLE
265
BUSHING SHACKLE TO BEARING BRACKET
270
SPACER WASHER SHACKLE TO BEARING BRACKET
275
WASHER SHACKLE TO BEARING BRACKET,965965
275
SPACER WASHER SHACKLE TO BEARING BRACKET
280
LOCK RING SHACKLE TO BEARING BRACKET,965965
285
NUT SUPPORT TO SIDE MEMBER
290
TORSION BAR FRONT AXLE
295
RUBBER MOUNTING TORSION BAR TO SHACKLE,4 707917
295
RUBBER MOUNTING TORSION BAR TO SHACKLE,4 707918
300
LOCK RING SHACKLE TO TORSION BAR
305
REPAIR KIT TORSION BAR MOUNTING,4 707917 DELIVER ADDITIONALLY:2X 000471 032000,2X 000125 033001 UP TO IDENT NO. 965965
305
REPAIR KIT TORSION BAR MOUNTING,4 707918
310
BUSHING TORSION BAR TO BEARING BRACKET
315
DISC SPRING TORSION BAR TO BEARING BRACKET
320
NUT TORSION BAR TO BEARING BRACKET
325
COTTER PINROCKINGER TYP 260 G140
330
SHOCK ABSORBER , Replaced By: A0043234500
330
SHOCK ABSORBER
330
SHOCK ABSORBER , Replaced By: A0043230000
330
SHOCK ABSORBER
335
RUBBER BUFFER , Replaced By: A0003232885
335
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
335
RUBBER BUFFER , Replaced By: A0003233144
335
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
340
RUBBER BUFFER , Replaced By: A0003232885
340
SPACER TUBE , Replaced By: A0003232550
340
BUSHING , Replaced By: A0003233150
340
SPACER RINGTO 002 323 86 00,003 323 03 00,
340
BUSHINGTO 004 323 52 00
355
SCREW , Replaced By: N000960016250
360
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
360
NUT COMBINATION CYLINDER TO BEARING BRACKET
360
NUT , Replaced By: N913004020003
360
NUT CROSS MEMBER TO REINFORCEMENT
365
BRACKET
365
BRACKET SHOCK ABSORBER TO FRONT AXLE
370
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: N000960020084
370
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
375
SCREW , Replaced By: N000960020084
375
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
380
SCREW , Replaced By: N000960016250
385
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
385
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
SCREW SHACKLE TO CONSOLE
999
REPAIR KIT , Replaced By: A3873200528
999
SPRING LEAFNO.12
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707918, Replaced By: A3893200128
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707618, Replaced By: A3875860232
999
PIN , Replaced By: A6203200228
