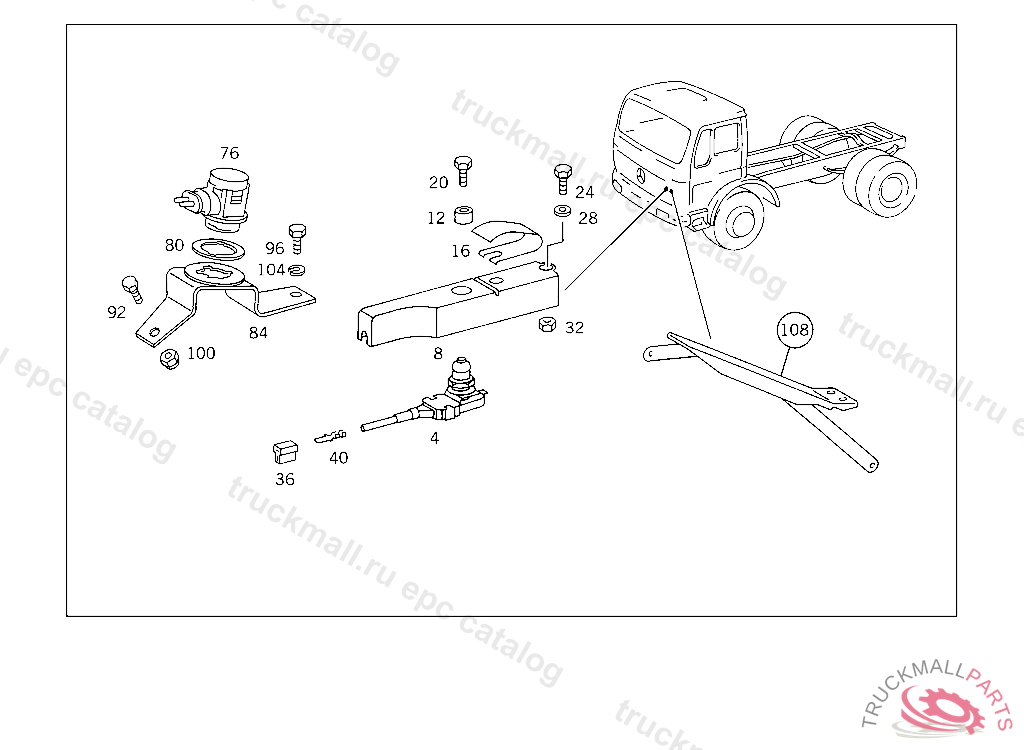

Поз.
Артикул
Описание
4
SWITCH KICK-DOWN SWITCH
8
SHELL KICK-DOWN SWITCH
12
SPACER TUBE KICK-DOWN SWITCH
16
SPRING KICK-DOWN SWITCH
20
SCREW VALVE TO BRACKET M 8X55
20
SCREW , Replaced By: N304017008043
24
SCREWM 8X40
28
WASHER , Replaced By: N000125008443
28
WASHER EXHAUST MUFFLER TO STRAP
32
NUT
36
PLUG HOUSING 3-POLE
40
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
40
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
76
KICK-DOWN SWITCH. SWITCH KICK-DOWN
80
SEAL RING KICK-DOWN SWITCH
84
BRACKET KICK-DOWN SWITCH,4 935352
84
BRACKET KICK-DOWN SWITCH
84
BRACKET KICK-DOWN SWITCH,4 935351
84
BRACKET KICK-DOWN SWITCH
84
BRACKET KICK-DOWN SWITCH
92
SCREW REDUCTION VALVE TO BRACKET
92
SCREW , Replaced By: N304017008016
92
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
SCREW , Replaced By: A0079900801
96
SCREW CLAMP TO BRACKET AND TO PIPE
100
NUT , Replaced By: N913004008001
100
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
108
ACCELERATOR PEDAL PARTS KIT
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER, 415 5 014668 416 5 000515 417 4 972023
999
STOP ACCELERATOR PEDAL
999
ACCELERATOR PEDAL , Replaced By: A6583000004
