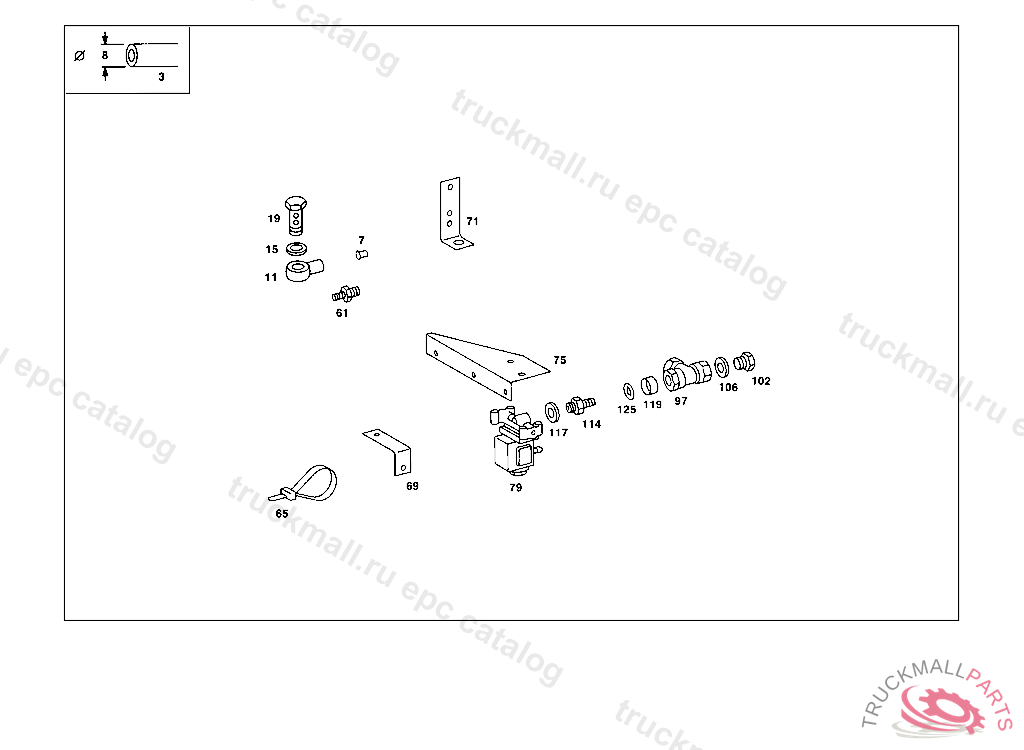

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
SLEEVE LINE CONNECTION
7
SLEEVE , Replaced By: N915062006000
11
BANJO UNION HEATING CONNECTION,K 169122
15
SEAL RING LINE CONNECTION
19
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
61
FITTING , Replaced By: N915059004000
61
FITTING LINE CONNECTION TO FIRE WALL,5 726664
65
LOOM TIE LINE MOUNTING
69
BRACKET TRAILER PLUG SOCKET
71
BRACKET PRESSURE REGULATOR BRACKET TO SUPPORT
75
VALVE P.T.O.
79
BRACKET SOLENOID VALVE
97
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
97
VALVE TWO-WAY VOSS
102
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
106
SEAL RING LINE CONNECTION
114
FITTING , Replaced By: A0009977172
114
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
117
SEAL RING LINE CONNECTION
119
SEAL LOCKING VALVE TO SOLENOID VALVE, NOT USED
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SLEEVE LEAK LINE
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
BANJO UNION , Replaced By: N000000000364
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION
999
UNION NUT
999
HOLLOW SCREW , Replaced By: N915036012101
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
999
SCREW BRACKET TO SIDE MEMBER
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING , Replaced By: A0009970171
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING FUEL LINE TO FEED PUMP
999
BULKHEAD FITTING , Replaced By: A0019973872
999
UNION NUT , Replaced By: N915017008100
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901667
999
SCREW , Replaced By: N304017008040
999
SCREW DISTRIBUTOR TO CAB
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW , Replaced By: N000933006151
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW PLUG , Replaced By: N000908012009
999
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
999
BRACKET 3/2-WAY VALVE,5 198435
999
BRACKET EXHAUST BRAKE,COMPRESSED AIR OPERATED
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
BRACKET SOLENOID VALVE
999
BRACKET AIR COMPRESSOR, 4 375136
999
ANGLE LINE MOUNTING
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
FITTING , Replaced By: A0029905971
999
FITTING 3/2-WAY VALVE
999
LOOM TIE , Replaced By: A0019978390
999
FITTING (PARTS KIT),LINE RUPTURE
999
BALLTO 003 429 22 44
999
LOOM TIE , Replaced By: A0019978490
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING TRANSMISSION
999
SEAL CONE
999
REPAIR KIT , Replaced By: A0012608357
999
REPAIR KITTO 001 997 34 36,002 997 58 36,
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
BUSHING , Replaced By: N915062004000
999
BUSHING , Replaced By: N915062004000
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
BANJO UNION , Replaced By: N915052006013
999
BANJO UNION , Replaced By: N915052004007
999
BANJO UNION , Replaced By: N915052004006
999
HOLLOW SCREW , Replaced By: N915047008100
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
REPAIR KITHERION,94171034/0711/24V,94172034/0711
999
MAGNET , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
VALVE DISC , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
VALVE BODYTO 002 429 95 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
VALVE , Replaced By: A0004291182
999
VALVE , Replaced By: A0004290782
999
GASKETTO 003 429 22 44
999
VALVE , Replaced By: A0002607957
