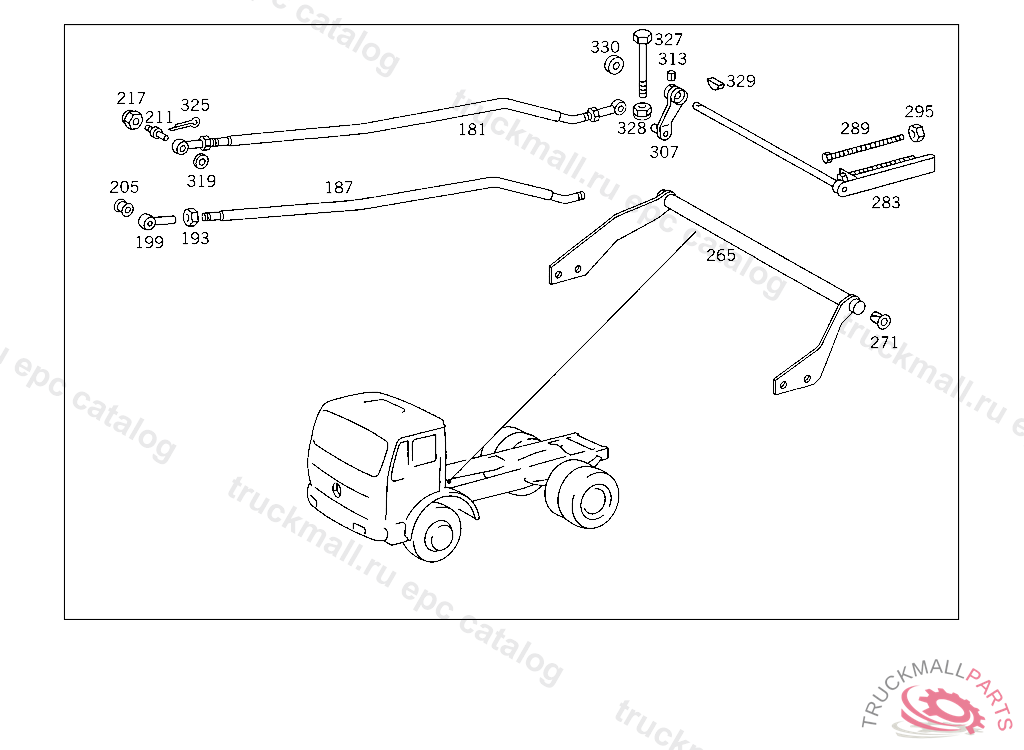

Поз.
Артикул
Описание
181
ROD PULL ROD
187
ROD PULL ROD
193
NUT BALL PIVOT TO LEVER
199
END PIECE
205
BUSHING CONTROL PRESSURE
211
PIN CONTROL LEVER
217
NUT PUMP TO BRACKET
217
NUT , Replaced By: N913004006001
265
BEARING TUBE MOUNTING
271
BUSHING MOUNTING
271
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
283
SHAFT MOUNTING
283
SHAFT MOUNTING
289
SCREW APPARATUS PLATE M 6X150
295
NUT BALL PIVOT TO LEVER
307
LEVER MOUNTING
307
LEVER MOUNTING
313
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
313
CLAMPING SLEEVE , Replaced By: N308752004001
319
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
319
WASHER COMPRESSED AIR LINE TO BRACKET
325
COTTER PIN LEVER TO ROD
325
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
327
SCREW CONNECTOR
328
NUT PUMP TO BRACKET
328
NUT , Replaced By: N913004006001
329
WOODRUFF KEY
330
COVERING INTERMEDIATE BEARING
999
WIRE CABLE MODULATOR TO 000 300 03 62
999
SCREW WIRE CABLE TO TRANSMISSION
999
JOINT , Replaced By: A3009910022, +001A3073010060, +001N071803010102, +001N071805010403
999
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
999
BALL PIVOT LEVER
999
COVERING , Replaced By: A6153010088
999
BRACKET FLYWHEEL HOUSING
999
ROD PULL ROD
999
LEVER , Replaced By: A6153000328
999
WIRE CABLE FROM ENGINE TO TRANSMISSION, NOT USED
999
BRACKET WIRE CABLE, NOT USED
999
LEVER MODULATOR
999
LEVER , Replaced By: A6253000128
999
ROD PULL ROD
999
BRACKET WIRE CABLE, NOT USED
999
BRACKET WIRE CABLE, NOT USED
999
BRACKET WIRE CABLE TO ENGINE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
