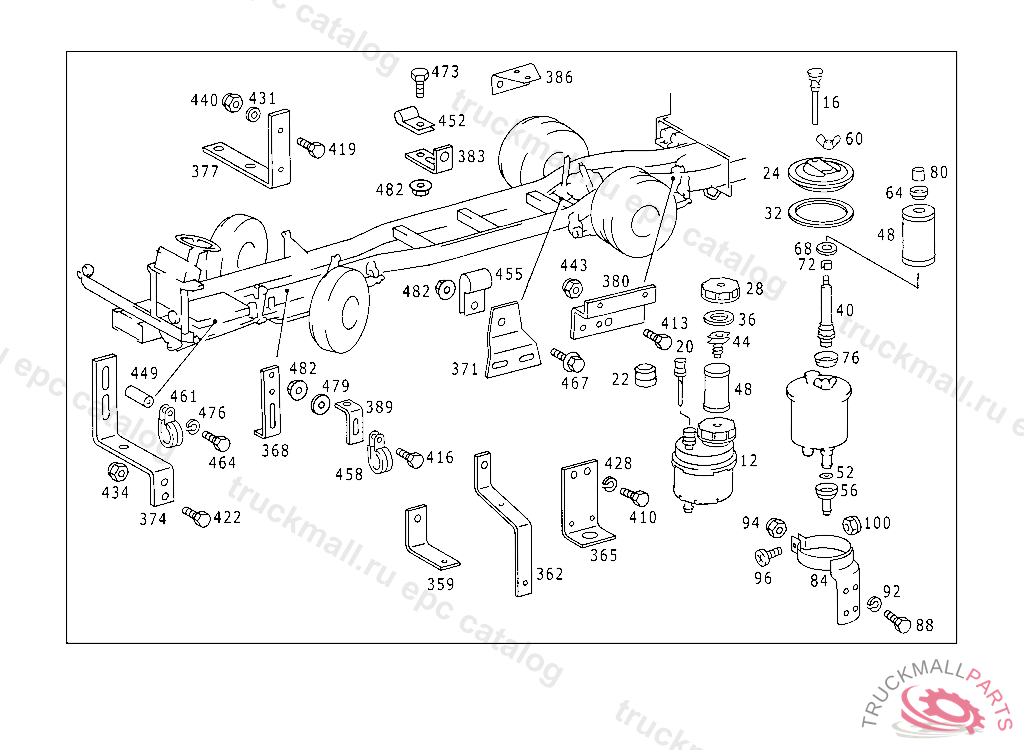

Поз.
Артикул
Описание
12
TANK OIL
12
TANK , Replaced By: A0004664502
16
PIPETO 000 466 38 02
20
OIL DIPSTICK
20
OIL DIPSTICK , Replaced By: A0004660867
22
PROTECTIVE CAP
24
COVERTO 000 466 38 02
28
FILLER CAP
32
SEAL RINGTO 000 466 38 02
36
SEAL RING
40
FILTER CARRIERTO 000 466 38 02
44
BRACKET
48
FILTER
52
SEAL RINGTO 000 466 38 02
56
CONNECTORTO 000 466 38 02
60
NUTTO 000 466 38 02
64
CENTERING RINGTO 000 466 38 02
68
SPACER WASHERTO 000 466 38 02
68
WASHER , Replaced By: A9402680552
72
SPACER TUBETO 000 466 38 02
76
COVER PLATETO 000 466 38 02
80
RUBBER SLEEVETO 000 466 38 02
84
BRACKET OIL TANK
88
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
92
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
NUT STRAP TO BRACKET
96
SCREW OIL TANK TO BRACKET
100
NUT OIL TANK TO BRACKET
371
BRACKET LINE MOUNTING,6 900220, 10/205 297554, 50/60
374
BRACKET LINE MOUNTING
377
BRACKET STEERING-TO-POWER-CYLINDER DELIVERY LINE, TO BE ADAPTED DURING ASSEMBLY
380
BRACKET LINE MOUNTING
383
BRACKET , Replaced By: A3464296040
389
BRACKET , Replaced By: A3464296040
389
BRACKET OIL LINE MOUNTING
389
BRACKET , Replaced By: A3464296040
389
BRACKET , Replaced By: A3812951940
410
SCREW PIPE CLAMP
413
SCREW BRACKET TO CROSS CONNECTION STRUT
419
SCREW BRACKET TO FRAME
419
SCREW CLAMP TO EXHAUST PIPE
431
WASHER RADIATOR TO RUBBER MOUNTING
440
NUT STRAP TO BRACKET
443
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
449
BRACKET , Replaced By: A3464296040
449
SPACER TUBE , Replaced By: A4082910153
452
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
455
CLAMP DELIVERY AND SUCTION LINES TO STEERING
458
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
458
CLAMP DELIVERY AND SUCTION LINES TO FRAME
458
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
461
CLAMP LINE MOUNTING
464
SCREW CABLE HARNESS MOUNTING
467
SCREW AT FILTER BRACKET
473
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
476
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
479
WASHER COMPRESSED AIR LINE TO BRACKET
482
NUT AT FILTER BRACKET
