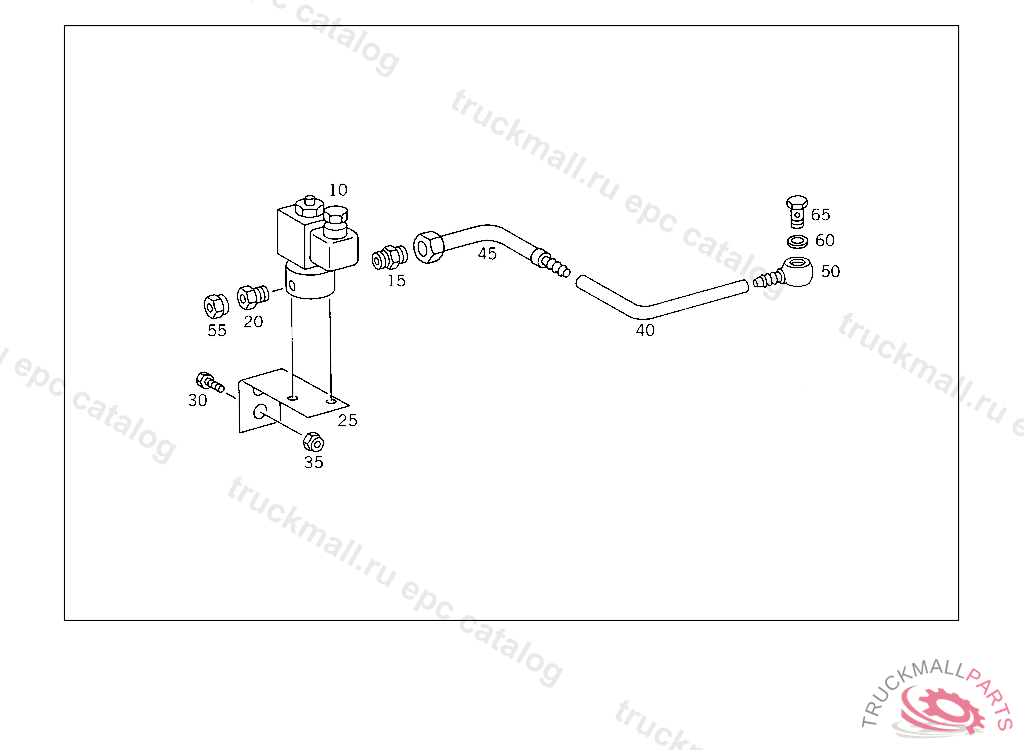

Поз.
Артикул
Описание
10
VALVE FUEL SHUT-OFF,064911
10
VALVE FUEL
15
FITTING AT VALVE
15
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6009970072
15
FITTING FUEL LINES TO SHUT-OFF VALVE,064911
20
FITTING PRESSURE RATIO VALVE,CONNECTION: "11,12,21,22,30"
20
FITTING , Replaced By: A0049975072
25
BRACKET LINE MOUNTING, NOT USED
30
SCREW BRACKET TO CAB MOUNTING CONSOLE
35
NUT BRACKET TO SIDE MEMBER
40
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
45
ELBOW FITTING RETURN
50
BANJO UNION , Replaced By: N000000000363
55
NUT. UNION NUT RETURN
60
SEAL RINGTO 000 553 03 05,000 553 18 05,
65
HOLLOW SCREW FUEL LINE TO FEED PUMP
65
HOLLOW SCREW , Replaced By: N915036010108
999
NUT PLATFORM MOUNTING
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
BRACKET LINE MOUNTING
999
BRACKET
999
FITTING RETURN
