Поз.
Артикул
Описание

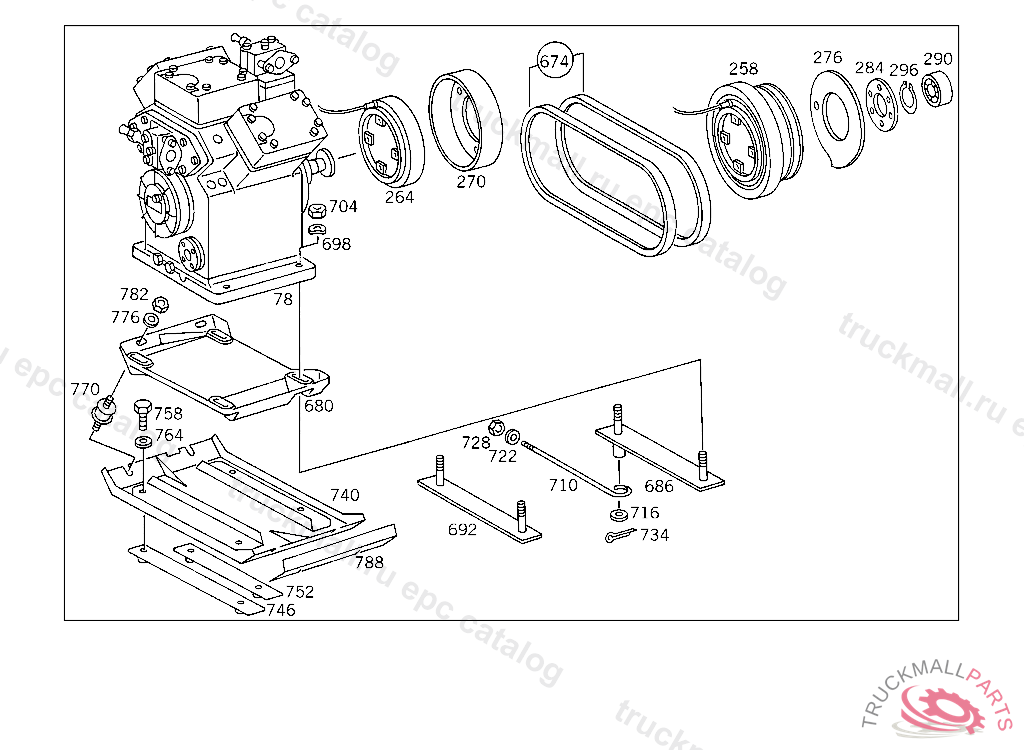

78
COMPRESSOR POWER CONTROLLED
258
COUPLING
264
MAGNET
270
COUPLING
276
WASHER
284
SPRING
290
THRUST BEARING
296
LOCK RING DRIVE GEAR
674
V-BELT SET2 PIECES 2522 MM, 10/20 5 331282 50/60 6 900297
680
BEARING BRACKET REFRIGERANT COMPRESSOR
680
BEARING BRACKET , Replaced By: A3575520018
686
MOUNTING PLATE ,056262, Replaced By: A3575500239, +001A3575520274, +001N000094003219
686
MOUNTING PLATE FRONT,056263
692
MOUNTING PLATE REAR
698
SPRING WASHER STEERING COLUMN BRACKET TO CAB
704
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
704
NUT , Replaced By: N308673010000
710
PIN ,056262, Replaced By: A3575520274, +001N000094003219
710
PIN BEARING PLATE TO MOUNTING PLATE,056263
716
WASHER BRACKET TO COVERING
716
WASHER , Replaced By: N009021010209
722
WASHER
728
NUT STRAP TO SUPPORT
734
COTTER PIN CYLINDER TO BRACKET
740
MOUNTING PLATE SUBSTRUCTURE
746
MOUNTING PLATE MOUNTING PLATE TO SUBSTRUCTURE
752
MOUNTING PLATE MOUNTING PLATE TO SUBSTRUCTURE
758
SCREW , Replaced By: N304017010002
758
SCREW BRACKET TO SIDE MEMBER
764
WASHER RADIATOR TO RUBBER MOUNTING
764
WASHER , Replaced By: N000125010532
770
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
776
WASHER RADIATOR TO RUBBER MOUNTING
776
WASHER , Replaced By: N000125010532
782
NUT , Replaced By: N910113010000
782
NUT STRAP TO BRACKET
788
PROTECTIVE PLATE V-BELT DRIVE
999
MAGNET (MAGNET COIL),POWER CONTROL, FROM IDENT NO.007644 (FROM COMPRESSOR J 5500)
999
SCREW SPACER RING TO FLANGE
999
MOUNTING PLATE FRONT
999
MOUNTING PLATE REAR
999
SCREW , Replaced By: A0009843429
