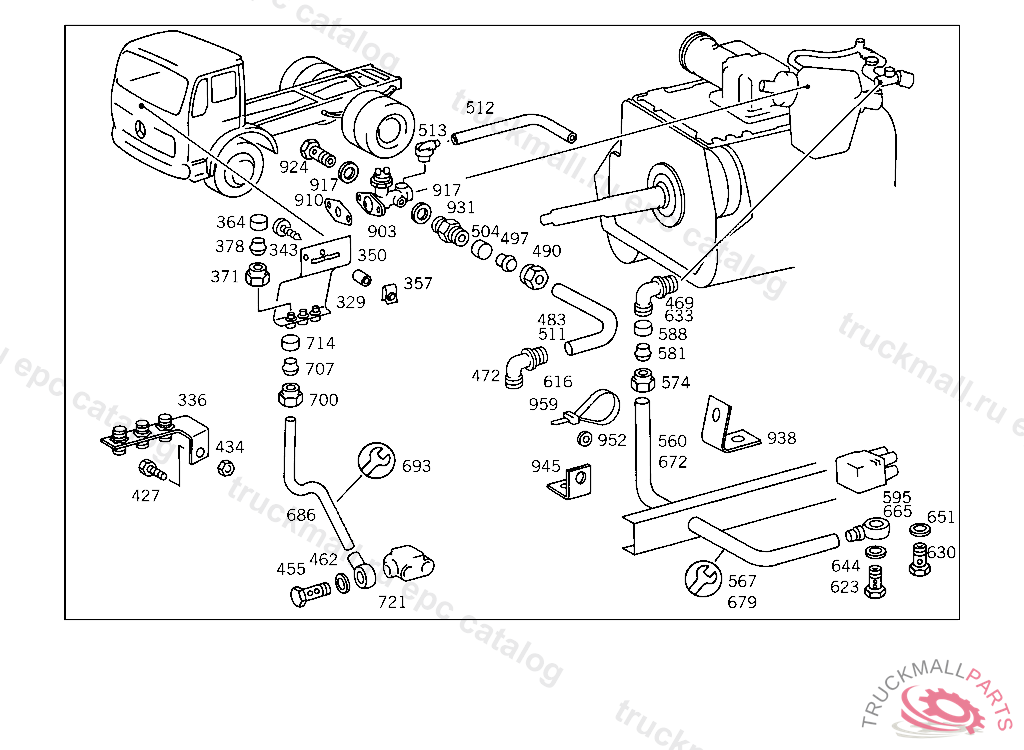

Поз.
Артикул
Описание
329
BRACKET LINE TO BRACKET
329
BRACKET LINE MOUNTING
336
BRACKET LINE CONNECTIONS,5 075341
343
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
350
SPACER TUBE BRACKET TO CAB
357
LOCK , Replaced By: A1409941045
357
LOCK FUEL LINE
364
SLEEVE LINE MOUNTING
371
UNION NUT LINE MOUNTING, Replaced By: N000000006521
378
GLAND LINE MOUNTING
427
SCREW COVER PLATE TO BRACKET
434
NUT , Replaced By: N913004006001
434
NUT PUMP TO BRACKET
455
HOLLOW SCREW LINE CONNECTION
455
HOLLOW SCREW LINE CONNECTION
455
HOLLOW SCREW LINE CONNECTION
462
SEAL RING LINE CONNECTION
462
SEAL RING LINE CONNECTION
462
SEAL RING LINE CONNECTION
469
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
469
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
472
ELBOW FITTING 3/2-WAY VALVE
483
PLASTIC TUBE2X4MM, ORDER BY THE METER
483
PLASTIC TUBE2X4MM, ORDER BY THE METER
483
PLASTIC TUBE2X4MM, ORDER BY THE METER
490
UNION NUT LINE MOUNTING, Replaced By: N000000006521
497
GLAND LINE MOUNTING
504
SLEEVE LINE MOUNTING
511
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
511
PLASTIC PIPE RISING PIPE 4X6 MM
511
PLASTIC PIPE RISING PIPE 4X6 MM
511
PLASTIC PIPE RISING PIPE 4X6 MM
511
PLASTIC PIPE RISING PIPE 4X6 MM
511
PLASTIC PIPE RISING PIPE 4X6 MM
511
PLASTIC PIPE RISING PIPE 4X6 MM
512
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
512
PLASTIC PIPE AERATION, ORDER BY THE METER
513
BREATHER , Replaced By: A3933280065
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
560
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
560
PLASTIC PIPE AERATION, ORDER BY THE METER
560
PLASTIC PIPE AERATION, ORDER BY THE METER
567
FITTING , Replaced By: A0029905971
567
FITTING (PARTS KIT),LINE RUPTURE
574
UNION NUT LINE CONNECTION
581
GLAND LINE CONNECTION
588
SLEEVE LINE CONNECTION
595
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
616
LOOM TIE LINE MOUNTING 280 MM
623
HOLLOW SCREW LINE CONNECTION
623
HOLLOW SCREW LINE CONNECTION
630
HOLLOW SCREW LINE CONNECTION
633
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
633
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
644
SEAL RING LINE CONNECTION
651
SEAL RING , Replaced By: N007603010110
665
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
672
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
672
PLASTIC PIPE RISING PIPE 4X6 MM
679
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
686
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
686
PLASTIC PIPE RISING PIPE 4X6 MM
686
PLASTIC PIPE RISING PIPE 4X6 MM
686
PLASTIC PIPE RISING PIPE 4X6 MM
693
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
700
UNION NUT
707
GLAND , Replaced By: A0019901667
714
SLEEVE LEAK LINE
721
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
903
VALVE NEUTRAL POSITION
910
GASKET , Replaced By: A3852613680
910
GASKET 3/2-WAY VALVE
917
SEAL RING , Replaced By: N007603010110
924
HOLLOW SCREW LINE CONNECTION
931
FITTING , Replaced By: A0019975372
931
FITTING NEUTRAL POSITION 3/2-WAY VALVE, CONNECTION: "2"
938
BRACKET , Replaced By: A6454310740
938
BRACKET FUEL LINE TO BELL HOUSING
945
ANGLE LINE MOUNTING
952
WASHER , Replaced By: N000125008443
959
LOOM TIE LINE MOUNTING
959
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET VIBRATION ABSORBER TO TRANSMISSION,4 915383
999
COVER 6-SPEED,SHIFT LEVER KNOB
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
BOOT SHIFTING ROD
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
HANDLE , Replaced By: A6202680142, +001A6202680157
999
SHIFT LEVER ,5 018216
999
HANDLE (SHIFT LEVER HANDLE)
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD ,4 912225
999
BOOT SHIFTING LEVER
999
SHIFTING ROD SHIFTING SHAFT
999
SPACER TUBE VIBRATION ABSORBER TO BRACKET
999
GUMMED LABEL EIGHT-SPEED,ASHTRAY
999
BRACKET 1ST SPEED ROCKER ARM
999
BRACKET RIGHT
999
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
SHIFT LEVER
999
JOINT SHIFTING ROD TO TRANSMISSION
999
BRACKET VIBRATION ABSORBER
999
BRACKET AT CLUTCH PEDAL UNIT
999
BRACKET 4/2-WAY VALVE
999
COVER SHIFT LEVER TO TRANSMISSION
999
SCREW SHIFTING ROD TO TRANSMISSION
999
SENDER UNIT OVERREVVING
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
SWITCH , Replaced By: A0025458114
999
SWITCH , Replaced By: A0005459009
999
PIN NEUTRAL POSITION
999
JOINT VIBRATION ABSORBER
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 3.00 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.80 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.60 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 1.60 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 1.80 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.40 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.20 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.00 MM
999
SEAL RING NEUTRAL POSITION
999
SEAL RING , Replaced By: N007603018100
999
VIBRATION ABSORBER
999
THREADED BUSHING NEUTRAL POSITION
999
VALVE , Replaced By: A0012602457
999
VALVE , Replaced By: A0002601457
