Главная
›
Mercedes
›
ENGINE
›
OM 422
›
422.906 MANNHEIM
›
01 ENGINE HOUSING
›
001 OIL SEPARATOR IL.2
Mercedes N304017008034 - Болт крепления
OM 422 422.906 MANNHEIM

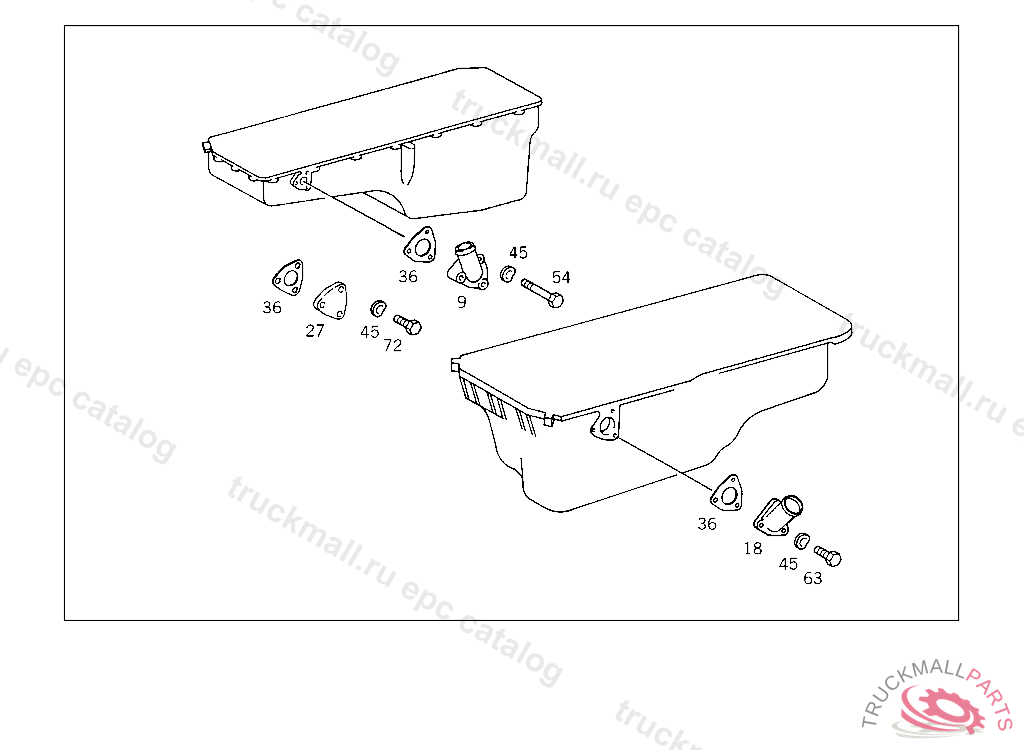

01 ENGINE HOUSING - 001 OIL SEPARATOR IL.2
Поз.
Артикул
Описание
9
A4030180601
OIL FILLER NECK
9
A4030180801
OIL FILLER NECK
18
A4020180001
OIL FILLER NECK
27
A4030140345
FLANGE
36
A4420180080
GASKET OIL FILLER NECK
36
A4030180180
GASKET , Replaced By: A4420180080
45
N000137008204
SPRING WASHER , Replaced By: N000137008212
45
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
54
N000931008246
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
63
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
63
N000933008153
SCREW , Replaced By: N304017008034
72
N000933008154
SCREW , Replaced By: N304017008021
72
N304017008021
SCREW PIPE CLAMP
999
N304017008018
SCREW SUPPORT TO FENDER
999
N000931008046
SCREW , Replaced By: N304017008018
999
A4220180001
OIL FILLER NECK
999
A4040180101
OIL FILLER NECK
999
A4040140045
FLANGE
999
A0009883135
CAP
