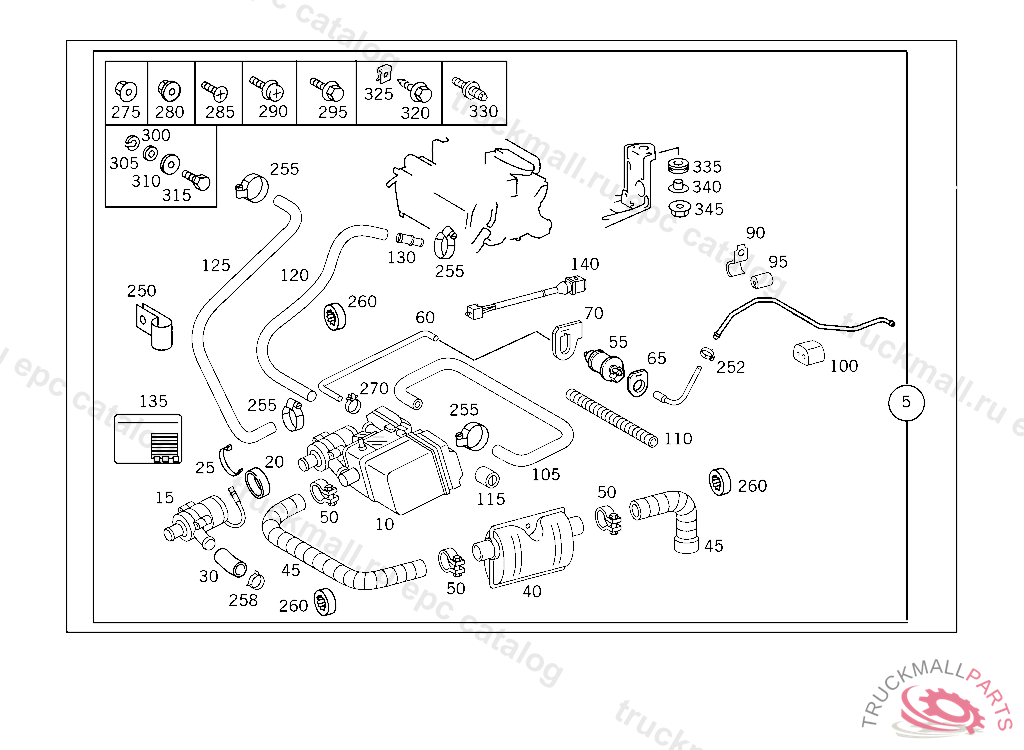

Поз.
Артикул
Описание
5
STATIONARY PREHEATER
5
TELESTART
10
HEATER UNITDIESEL
40
MUFFLER
45
PIPELINE , TO BE ADAPTED DURING ASSEMBLY
50
CLAMP EXHAUST PIPE
135
STICKERDIESEL
140
SWITCH THERMOSTAT
250
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
250
CLAMP COOLING WATER HOSES
250
CLAMP CABLE HARNESS MOUNTING 48/20
250
CLAMP HOSE TO FLANGE AND TO VALVE
250
CLAMP LINE MOUNTING
252
LOOM TIE. CLIP
255
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
258
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
260
RUBBER MOUNTING BETWEEN HEATER UNIT AND EXHAUST MUFFLER,B 377200
270
CLAMP RISING PIPE,5 4734955 909351
270
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
275
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
280
NUT COVERING TO CAB FIRE WALL
285
SCREWM5X16,M 5 X 16
290
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
295
SCREW CABLE HARNESS MOUNTING
295
SCREW LICENSE PLATE TO BRACKET
295
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
300
SPRING WASHER ALTERNATOR CONNECTION D+
305
WASHER COMPRESSED AIR LINE TO BRACKET
310
WASHER COMPRESSED AIR LINE TO BRACKET
315
TAPPING SCREW BRACKET TO SUPPORT
320
TAPPING SCREW6,3 X 13
320
COMBINATION BOLT BRACKET TO FRAME
325
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
330
STUD30 MM
330
STUD45 MM
335
RUBBER MOUNT
340
BUSHING
345
NUT
