Поз.
Артикул
Описание

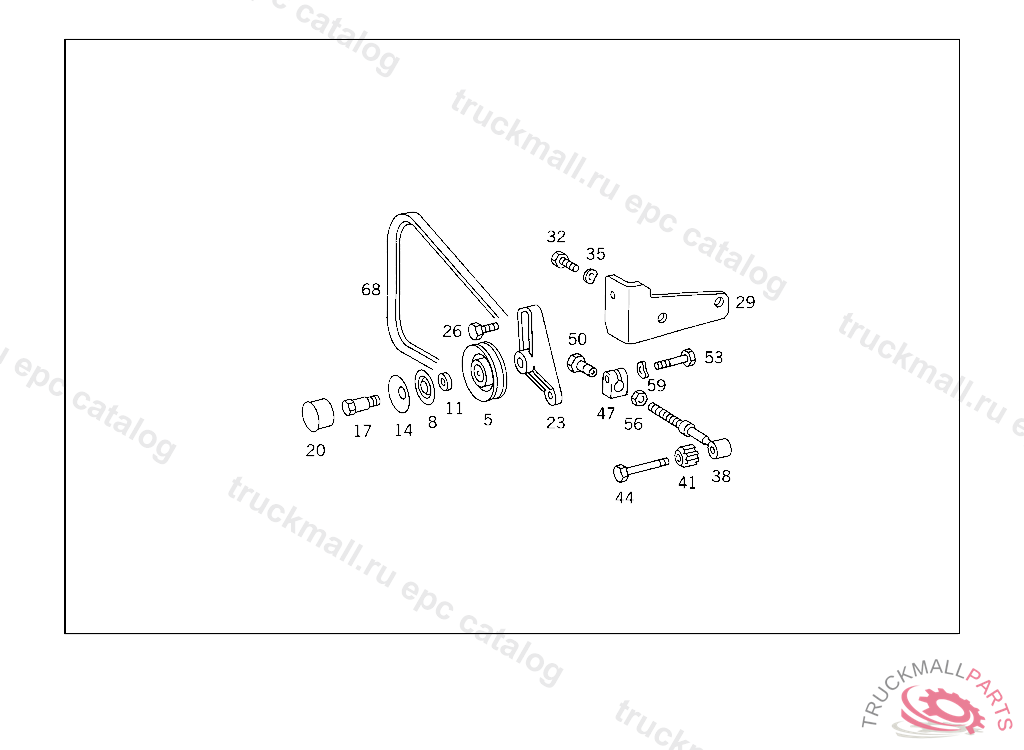

5
PULLEY , Replaced By: A1161300460
8
SEAL RING TIGHTENER PULLEY TO LEVER
11
SPACER RING TIGHTENER PULLEY TO LEVER
14
COVER PLATE TIGHTENER PULLEY TO LEVER
17
FITTED SCREW TIGHTENER PULLEY TO LEVER
20
CAP TIGHTENER PULLEY TO LEVER
23
LEVER TIGHTENER PULLEY
26
SCREW BRACKET TO FRAME M 12X35
29
BRACKET TIGHTENER PULLEY,093247
29
BRACKET TIGHTENER PULLEY
32
SCREW BRACKET IN CYLINDER CRANKCASE
35
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
38
CLAMPING BOLT
38
CLAMPING BOLT (CLAMPING BOLT)
38
CLAMPING BOLT , Replaced By: A4211500072
38
CLAMPING BOLT COMPLETE
41
BUSHING
41
BUSHINGTO 355 150 03 72,366 150 13 72
44
SCREW CROSS MEMBER TO FRAME
44
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
47
CLAMPING PIECE TIGHTENER PULLEY
47
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
47
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
50
NUT TIGHTENER PULLEY TO LEVER
53
SCREW , Replaced By: N308676012031
53
SCREW ,5 903514, Replaced By: N000960012353
53
SCREW , Replaced By: N308676012011
53
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
53
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
56
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
59
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
59
SPRING WASHER CAB FLOOR
68
V-BELT12.5X1400
68
V-BELT FROM ELECTRIC MOTOR TO AIR COMPRESSOR 12.5X1375 LA,061991
