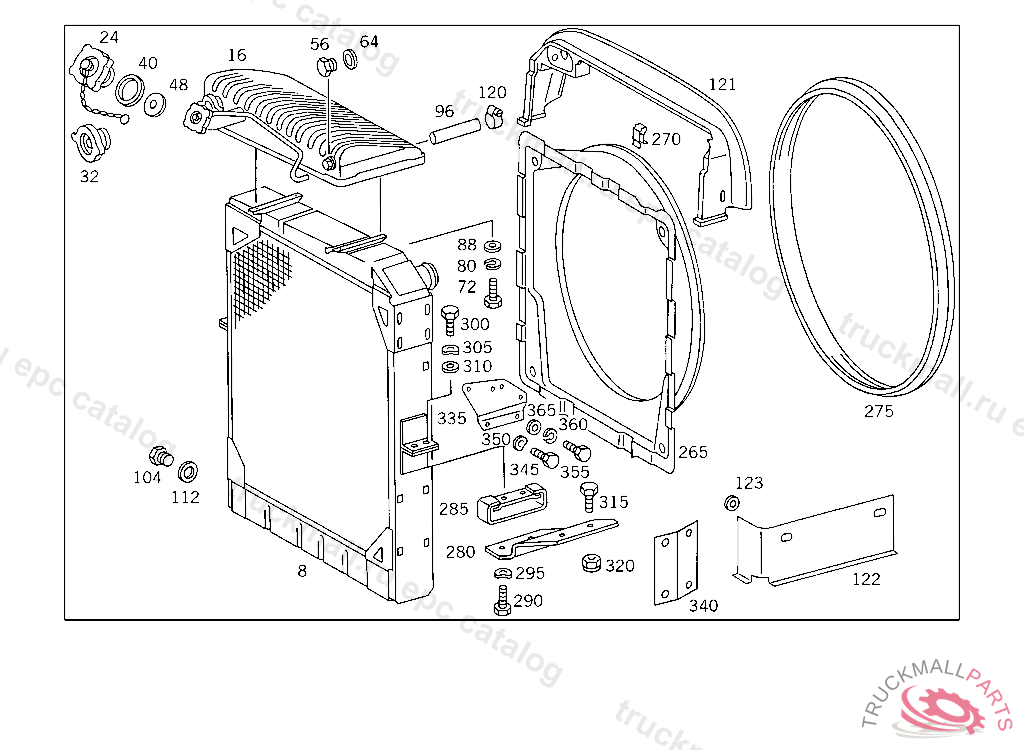

Поз.
Артикул
Описание
8
RADIATORBEHR
8
RADIATOR
8
RADIATOR"BEHR"
16
TANK EXPANSION TANK
16
TANK ON RADIATOR
24
RADIATOR CAP FILLER NECK
24
RADIATOR CAP FILLER NECK
32
RADIATOR CAP CENTRAL
32
RADIATOR CAP CENTRAL
40
GASKET O.D., 52 MM
48
GASKET O.D., 37 MM
56
SCREW PLUG WATER DRAIN
56
SCREW PLUG , Replaced By: N007604014101
64
SEAL RING FUEL LINE TO FEED PUMP
72
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
72
SCREW , Replaced By: N304017008016
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
88
WASHER EXHAUST MUFFLER TO STRAP
88
WASHER , Replaced By: N000125008443
96
HOSE OVERFLOW, EXPANSION TANK
104
SCREW PLUG WATER DRAIN
104
SCREW PLUG , Replaced By: N007604014101
112
SEAL RING FUEL LINE TO FEED PUMP
120
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
120
CLAMP , Replaced By: N916017011001
121
BOOT RADIATOR
122
BRACKET BOOT
123
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
123
SPACER RING , Replaced By: A3059900740
123
WASHER , Replaced By: N000125006421
123
WASHER COMPRESSED AIR LINE TO BRACKET
265
FAN SHROUD RADIATOR
265
FAN SHROUD RADIATOR
270
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
275
BOOT FAN SHROUD TO FAN RING
280
SUPPORT RADIATOR,LEFT,K 096749
285
RUBBER MOUNTING RADIATOR
290
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
290
SCREW , Replaced By: N304017010028
295
SPRING WASHER STEERING COLUMN BRACKET TO CAB
300
SCREW END PIECE TO EXHAUST PIPE M 10X25
305
SPRING WASHER STEERING COLUMN BRACKET TO CAB
310
WASHER RADIATOR TO RUBBER MOUNTING
315
SCREW CONSOLE TO SIDE MEMBER
320
NUT SUPPORT TO SIDE MEMBER
335
BRACKET , NOT USED
340
BRACKET OIL DIPSTICK TO RADIATOR
340
BRACKET BRACKET TO OIL FILLER PIPE BRACKET
345
SCREW PUMP TO BRACKET
345
SCREW , Replaced By: N304017006016
350
SPRING WASHER LICENSE PLATE TO BRACKET
355
SCREW CLAMP TO BRACKET AND TO PIPE
360
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
365
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
BRACKET OIL FILTER, NOT USED
999
RECEPTACLE SILICONE GREASE
