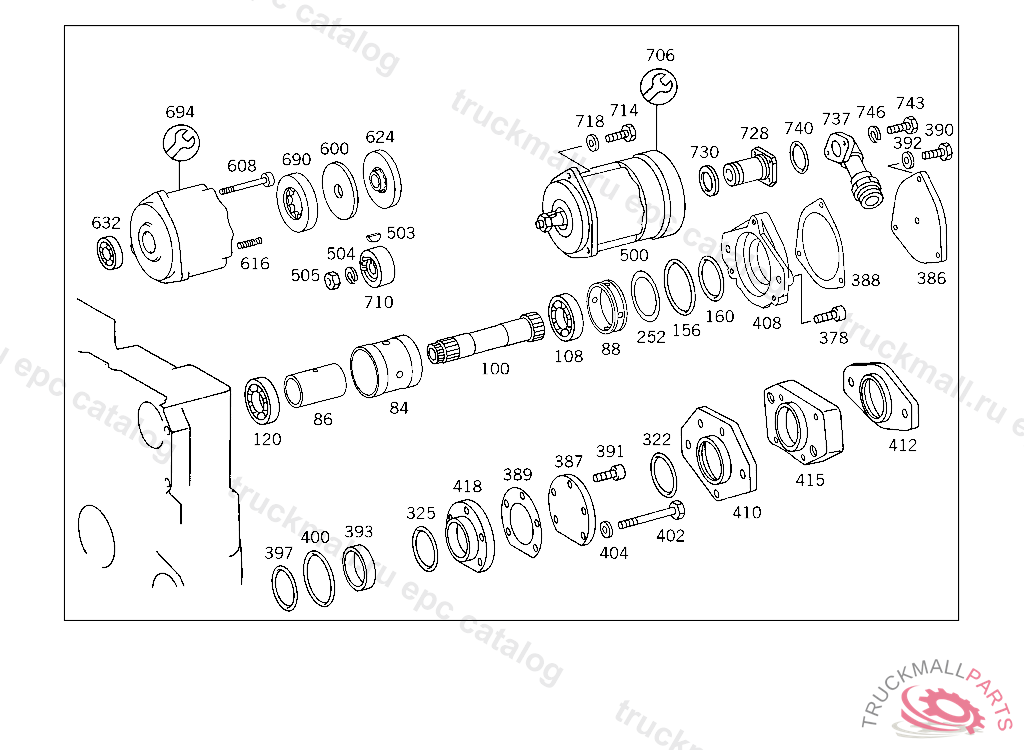

Поз.
Артикул
Описание
84
SPACER TUBE
84
SPACER TUBE P.T.O.
86
SPACER TUBE
88
SPACER TUBE HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
100
SHAFT P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
100
SHAFT P.T.O., 401-403 083703 404 000682
100
SHAFT , 401-403 083702 404 000681, Replaced By: A4032300325, +001A4032340525
108
ANG. CONTACT BALL BEARING P.T.O.
108
GROOVED BALL BEARING OUTPUT SHAFT
120
CYLINDR. ROLLER BEARING P.T.O.
156
SEAL RING HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
160
SEAL RING STEERING NUT BEARING 75X3 MM
252
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1.8 MM
252
FITTED WASHER AS REQUIRED 1.4 MM
252
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1,2 MM
252
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1.0 MM
252
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1,6 MM
322
SEAL RING INTERMEDIATE FLANGE
325
SEAL RING INTERMEDIATE FLANGE
378
CAPSCREW W HEXAL. DRIVE BRACKET TO PUMP M12X25
378
SCREW , Replaced By: A0059906104
386
FLANGE TO PLUG HYDRAULIC PUMP CONNECTION OPENING
387
COVER
387
COVER HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
388
GASKET TO PLUG HYDRAULIC PUMP CONNECTION OPENING
389
SEAL RING INTERMEDIATE FLANGE
389
GASKET TO PLUG HYDRAULIC PUMP CONNECTION OPENING, 401-403,421-423,441-443 732916 407,427,447 050937 424,444 015022
390
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
391
SCREW
391
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
391
SCREW SHEAVE PULLEY TO BRACKET M8X40
391
HEXALOBULAR BOLT. SCREWM 8X45
391
SCREW , Replaced By: N000000000190
391
SCREW , Replaced By: N000000001448
392
WASHER , Replaced By: N000125008443
392
WASHER EXHAUST MUFFLER TO STRAP
393
SPACER TUBE HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
397
SEAL RING INTERMEDIATE FLANGE
400
SEAL RING HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
402
SCREW CLAMP ON BRACKET
402
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
404
WASHER , Replaced By: N000125008443
404
WASHER EXHAUST MUFFLER TO STRAP
408
FLANGE P.T.O.
410
FLANGE
410
FLANGE
410
FLANGE
410
FLANGE
412
FLANGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 722624, Replaced By: A4442360245
415
FLANGE
418
FLANGE
418
FLANGE
500
HYDRAULIC PUMPBOSCH, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
503
WOODRUFF KEY POWER STEERING PUMP
504
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
505
NUT BRACKET TO SIDE MEMBER
600
SPACER WASHER HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
608
SCREW CASE,REAR, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
608
SCREW , Replaced By: N000912008180
616
SPRING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
616
SPRING HOUSING,INSIDE
624
BEARING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
632
BEARING HOUSING,FRONT, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
690
CYLINDR. ROLLER BEARING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
694
SEAL RING GASKET KIT, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
694
SEAL RING , Replaced By: A0139979546
694
REPAIR KIT , Replaced By: A0189973747, +001A0059971945
706
REPAIR KIT SHIMS, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
710
HUB
714
SCREW BRACKET TO ENGINE
718
WASHER EXHAUST MUFFLER TO STRAP
718
WASHER , Replaced By: N000125008443
728
INTERMEDIATE PIECE
730
SEAL RING
737
FLANGE HYDRAULIC PUMP
740
SEAL RING HYDRAULIC PUMP
743
SCREW COVER PLATE TO BRACKET
746
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
ROUND SECTION SEAL RING HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SCREW HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SCREW BRACKET TO EXHAUST PIPE BRACKET
999
SCREW HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE M 8X30
999
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
999
SCREW. CAP BOLT COVER TO CASE M8X25
999
SCREW , Replaced By: N000912008202
999
SCREW
999
SCREW , Replaced By: N000912006064
999
WASHER BRACKET TO CROSS MEMBER
999
WASHER PULL ROD TO SHIFT LEVER
999
SHAFT P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FLANGE P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
HOUSING P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FLANGE P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
HOUSING P.T.O., TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FLANGE P.T.O.
999
FLANGE
999
SPACER TUBE (SHIFT LEVER),768699
999
HUB
999
HUB
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421440635
999
LEVER (SHIFT LEVER),768699
999
STOP (SHIFT LEVER),768699
999
FLANGE P.T.O.
999
FLANGE HYDRAULIC PUMP TO P.T.O.
999
GASKET , Replaced By: A4442340080
999
HOUSING , Replaced By: A4072340320
999
GASKET
999
EXPANSION PLUG SUPPORT TO SIDE MEMBER
999
SCREW
999
FLANGE , Replaced By: A4032360845
999
GASKET , Replaced By: A4422340180
999
GASKET , Replaced By: A4422340080
999
GUIDE
999
CAP TO PLUG AIR COMPRESSOR,REAR
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
999
SPACER TUBE FUEL LINE TO BRACKET
999
FLANGE GASKET COVER TO TIMING CASE
999
REPAIR KIT LOCK RING, NO LONGER AVAILABLE
999
REPAIR KIT DRIVE MOUNTING PARTS, NO LONGER AVAILABLE
