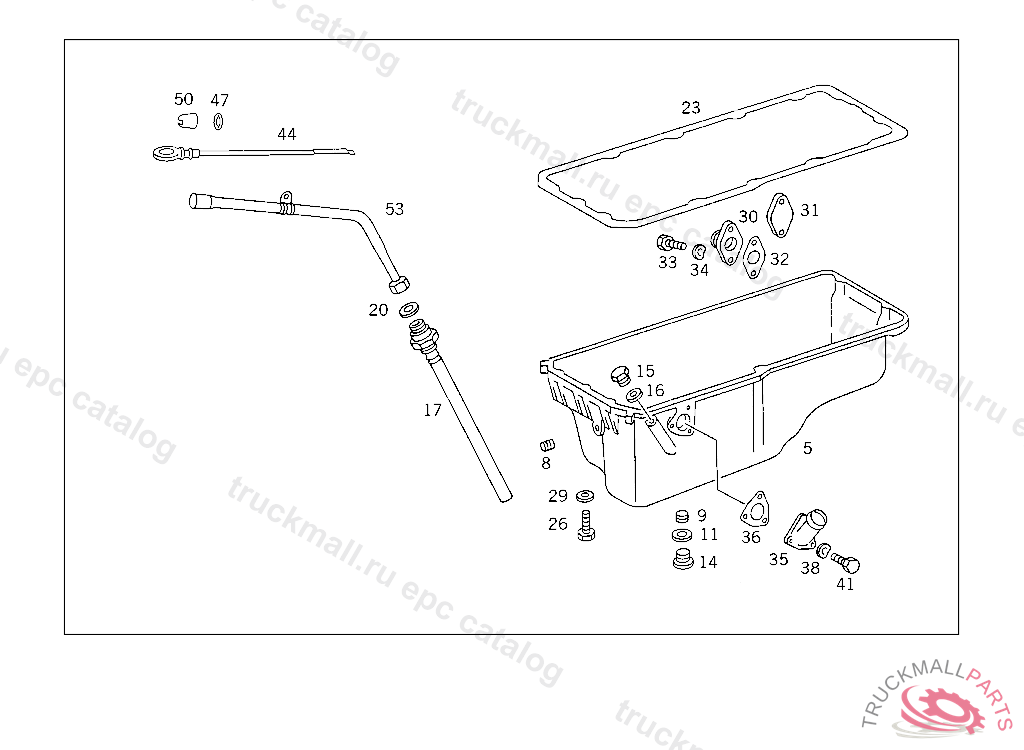

Поз.
Артикул
Описание
5
OIL PAN
5
OIL PAN ,266291, Replaced By: A4430100113
8
THREADED INSERT
11
SEAL RING OIL DRAIN 26X34 MM
14
SCREW PLUG
17
SUCTION PIPE OIL SCAVENGING,ON OIL PAN
20
WASHER SUCTION PIPE TO OIL PAN
23
GASKET , Replaced By: A4430140022
23
GASKET OIL PAN
26
SCREW CLAMP ON BRACKET
29
WASHER , Replaced By: N000125008443
29
WASHER EXHAUST MUFFLER TO STRAP
35
OIL FILLER NECK
36
GASKET , Replaced By: A4420180080
36
GASKET OIL FILLER NECK
38
SPRING WASHER , Replaced By: N000137008212
38
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
41
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
41
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
44
OIL DIPSTICK
47
SEAL RING
50
CAP
53
GUIDE TUBE OIL DIPSTICK
53
GUIDE TUBE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 733625, Replaced By: A4420102466
999
FITTING OIL SCAVENGING
999
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
