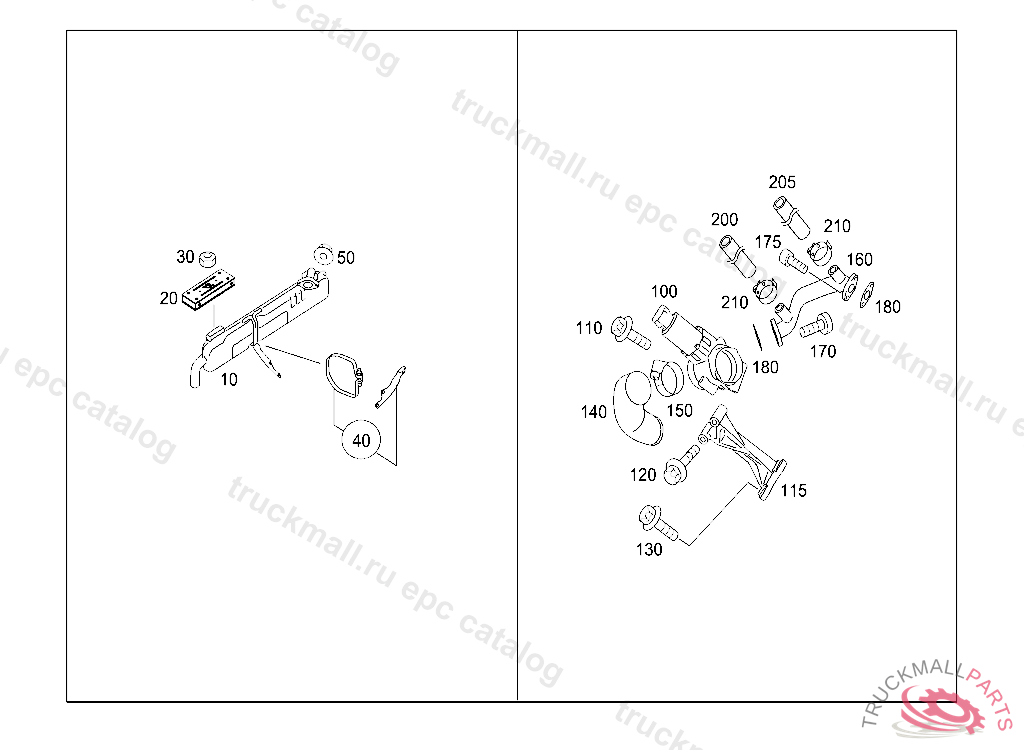

Поз.
Артикул
Описание
10
SPORTS EXHAUST HIGH-GRADE STEEL
10
EXHAUST SYSTEM DIESEL / D PARTICLE FILTER
10
EXHAUST SYSTEM DIESEL / D
20
VIBRATION DAMPER RED
20
VIBRATION DAMPER
20
TORX SCREW M6 X 20 - 8.8 AT BRACKET M8 X 20 - 8.8 E12
30
NUT HEX M6 - 8 VIBRATION ABSORBER
40
BRACKET WITH EXHAUST CLAMP
50
HEXAGON NUT SCREENING PLATE,5 163561
100
MIXING CHAMBER EXHAUST GAS RECIRCULATION
110
SCREW TORX M7 X 23 ON MIXING CHAMBER M8 X 50
115
CARRIER MIXING HOUSING
120
SCREW TORX M7 X 23 MIXING CHAMBER AT CARRIER M8 X 70
130
TORX SCREW M6 X 20 - 8.8 ENGINE SUPPORT AT CYLINDER HEAD M8 X 24 - 10.9 E12,M8 X 24
140
AIR LINE MIXING HOUSING C , J 28466520060123
140
AIR LINE MIXING HOUSING C
140
AIR LINE MIXING HOUSING C MIXER HOUSING ON BOOST AIR DISTRIBUTION LINE, J 28466420060123
150
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
160
EXHAUST GAS RECIRCULATION , 20060123
160
EXHAUST GAS RECIRCULATION , 20060123
160
EXHAUST GAS RECIRCULATION , 20060123
170
HEXALOBULAR BOLT. SCREW BRACKET TO CHARGE AIR DISTRIBUTOR LINE M 6X20
175
SCREW BEARING BRACKET TO TRANSMISSION
180
SEAL
200
WATER HOSE LONG
205
WATER HOSE SHORT
210
CLAMP HOSE TO HEAT EXCHANGER 22MM
