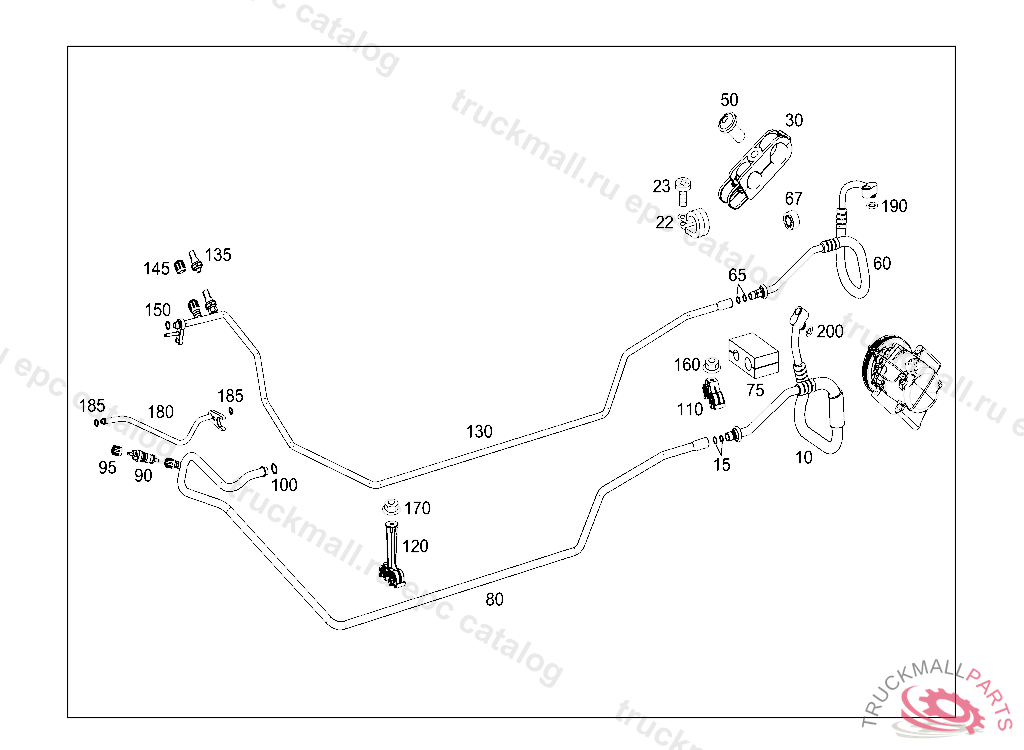

Поз.
Артикул
Описание
10
MOLDED HOSE TO AIR CONDITIONER COMPRESSOR
10
SUCTION HOSE TO AIR CONDITIONER COMPRESSOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 34804520091116, Replaced By: A4518321123
15
O-RING SUCTION LINE TO SEPARATION POINT 12.93 X 1.78
22
CLAMP LINE MOUNTING 15-18 MM,V 207570
23
SCREW BRACKET TO COVERING
30
BRACKET DELIVERY LINE
50
BOLT. SCREW SEAL TO RADIATOR,TOP 6X25 MM
60
PRESSURE HOSE TO AIR CONDITIONER COMPRESSOR
65
O-RING SEPARATION POINT, PRESSURE LINE 10.16 X 1.78
75
SEAL TO INDUCTION LINE
80
INTAKE PIPE SUCTION LINE TO EXPANSION VALVE
80
INTAKE PIPE SUCTION LINE TO EXPANSION VALVE
90
VALVE INSERT TO INDUCTION LINE
95
PROTECTIVE CAP
100
O-RING17,17 X 1,78
110
BRACKET REAR
120
BRACKET FRONT
130
PRESSURE LINE AT CONDENSER
135
PRESSURE SENSOR
135
PRESSURE SENSORM 10, Replaced By: A2110000283
145
PROTECTIVE CAP
150
O-RING10,82 X 1,78
160
NUT BRACKET TO BODY SHELL M6
170
NUT BRACKET TO BODY SHELL M6
180
REFRIGERANT LINE FROM CAPACITOR TO EXPANSION VALVE
180
REFRIGERANT LINE FROM CAPACITOR TO EXPANSION VALVE
185
SEALING RING SUCTION LINE 7.5X2.0
190
O-RING10 X 2.62
200
O-RING TO COMPRESSOR 13.94 X 2.62
