Поз.
Артикул
Описание

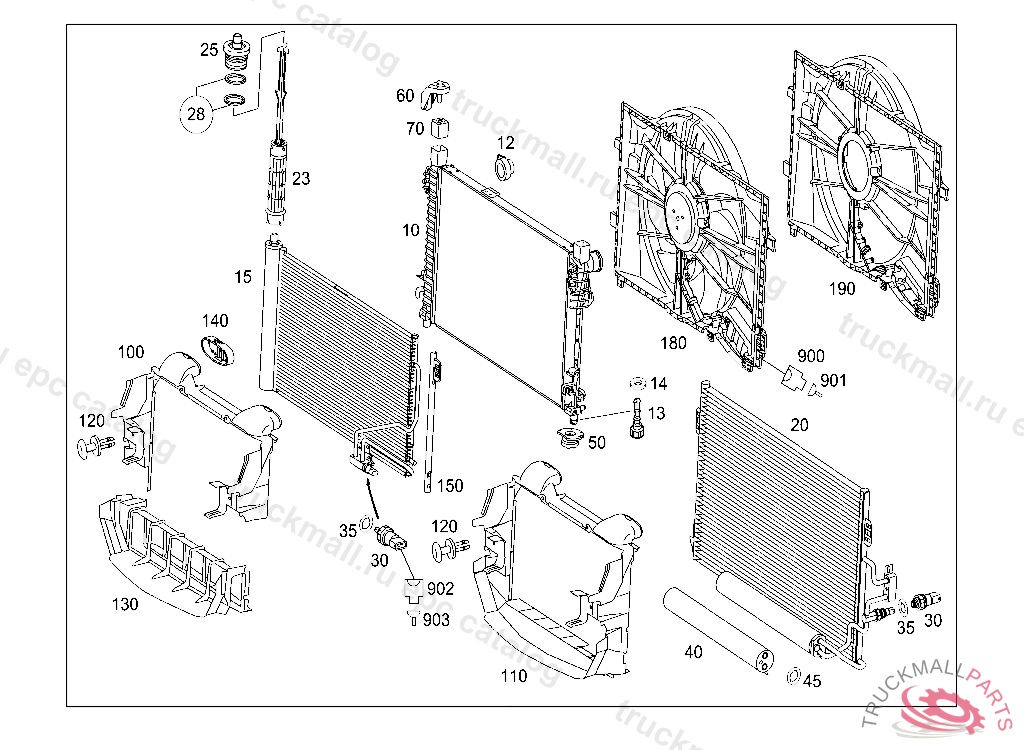

10
RADIATOR RADIATOR
12
SLEEVE TRANSMISSION OIL LINE AT RADIATOR
20
CONDENSER AIR CONDITIONER
30
PRESSURE SENSOR AT CONDENSER M 12, A 55589720030630804 A 91027720060502
35
SEAL RING PRESSURE SENSOR
40
DRYER CARTRIDGE
45
O-RING7.5X2 MM
50
RADIATOR MOUNT RADIATOR BOTTOM
60
BRACKET RADIATOR TOP RIGHT
60
BRACKET RADIATOR, TOP LEFT
70
RUBBER MOUNT RADIATOR BRACING,TOP
110
AIR DUCT AT FRONT MODULE, F 17818920070831
110
AIR BAFFLE AT FRONT MODULE, F 17819020070831
120
RIVET
150
RUBBER SEAL TO LEFT RADIATOR
150
RUBBER SEAL TO RIGHT RADIATOR
180
BLOWER850 W
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
901
CONTACT SPRING. PLUG SOCKET1,0-2,5
902
SOCKET HOUSING. PIN BUSHING HOUSING POLLUTANT SENSOR, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
902
CLUTCH. PIN BUSHING HOUSING SIREN
