Поз.
Артикул
Описание
5

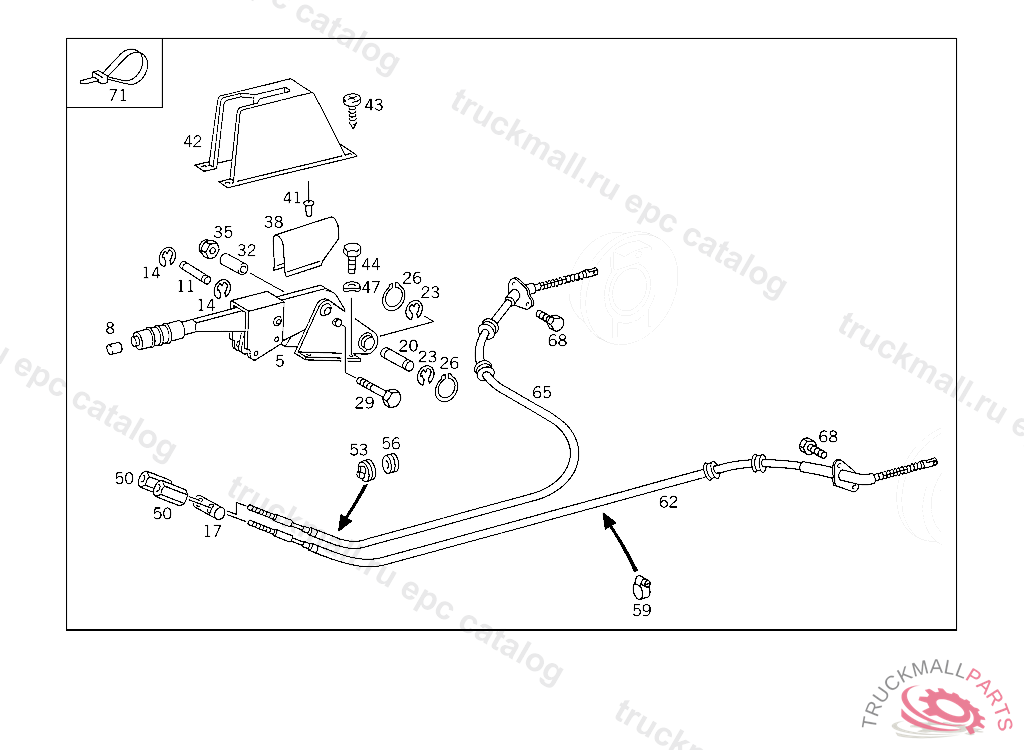

PARKING BRAKE
8
KNOB
11
PIN , Replaced By: A4614270074
11
PIN
14
LOCK PLATE RELEASE LEVER TO SHAFT
17
PIN
17
PIN , Replaced By: A4614270174
20
PIN , Replaced By: A4614270274
20
PIN
23
LOCK PLATE INTERMEDIATE BEARING
26
LOCK RING BEARING BRACKET,4 972621
29
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
29
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
32
SPACER TUBE
35
NUT SWITCH TO FLOOR PLATE
38
COVERING
41
RIVET
42
COVERING PARKING BRAKE
43
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
43
SHEET METAL SCREW BRACKET TO FLOOR PLATE
44
SCREW , Replaced By: N304017006049
44
SCREW BRACKET TO BATTERY CASE
47
SPRING WASHER LICENSE PLATE TO BRACKET
50
NUT BRAKE CABLE TO HAND BRAKE LEVER
53
GROMMET CABLE THRU VEHICLE FLOOR
56
GROMMET BRAKE CABLE PASSAGE IN CONSOLE
59
CLAMP , Replaced By: N000000000671
59
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
62
BRAKE CABLE LEFT,ON LEFT BRAKE DB, 2300 MM
62
BRAKE CABLE LEFT,ON LEFT BRAKE DB,2240 MM
62
BRAKE CABLE , Replaced By: A4634200785
62
BRAKE CABLE , Replaced By: A4634200585
62
BRAKE CABLE LEFT DB,2240 MM, FROM AXLE K 005108
62
BRAKE CABLE LEFT DB,2090 MM, FROM AXLE K 005108
62
BRAKE CABLE LEFT,ON LEFT BRAKE DB, 2090 MM
65
BRAKE CABLE RIGHT DB,2240 MM, FROM AXLE K 005108
65
WIRE CABLE RIGHT, ON RIGHT BRAKE DB,2300 MM
65
BRAKE CABLE , Replaced By: A4634200885
65
BRAKE CABLE , Replaced By: A4634200685
65
BRAKE CABLE RIGHT, ON RIGHT BRAKE DB 2090 MM, FROM AXLE-NO. K005108
65
BRAKE CABLE RIGHT, ON RIGHT BRAKE DB,2240 MM
65
BRAKE CABLE RIGHT, ON RIGHT BRAKE DB, 2090 MM
68
SCREW , Replaced By: N304017008016
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
LOOM TIE LINE MOUNTING 280 MM
