Поз.
Артикул
Описание

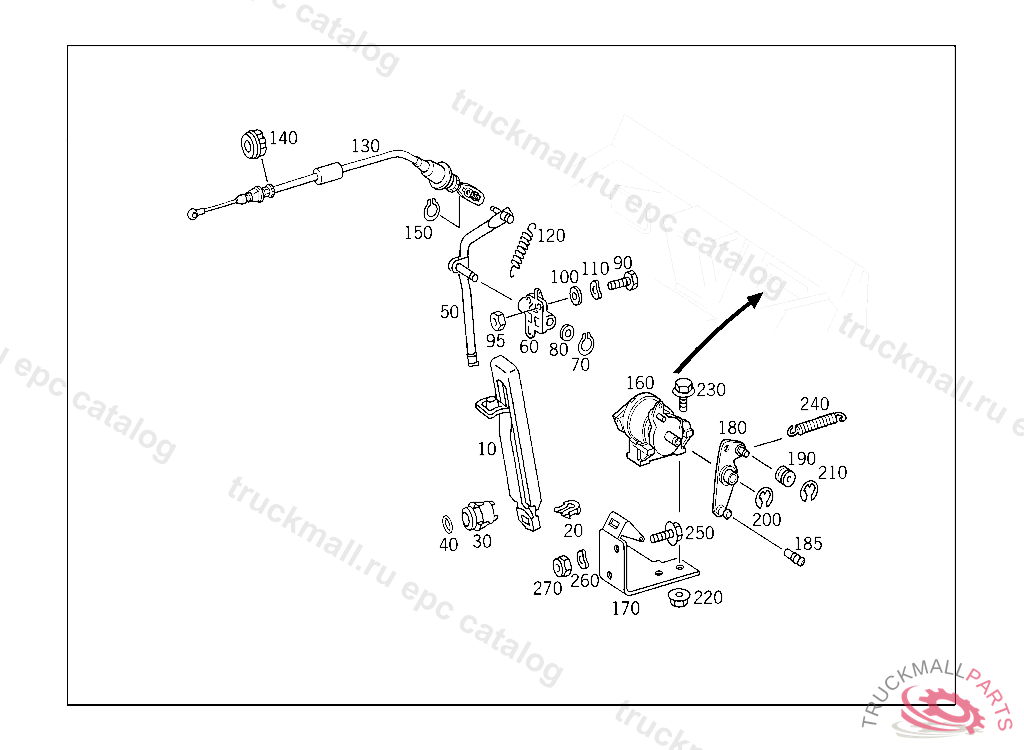

10
ACCELERATOR PEDAL
20
CLIP
30
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
40
SEAL RING KICK-DOWN SWITCH
50
LEVER ACCELERATOR PEDAL
60
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
70
LOCK RINGTO 000 553 37 01,000 553 39 01,
80
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
95
NUT SPRING-LOADED PUSH ROD
100
WASHER COMPRESSED AIR LINE TO BRACKET
110
SPRING WASHER LICENSE PLATE TO BRACKET
120
SPRING
130
BOWDEN CABLE TO ACCELERATOR PEDAL LEVER, X 16755320060816
140
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
150
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
150
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
160
SENDER UNIT
170
BRACKET PEDAL VALUE SENSOR, X 16755320060816
180
LEVER CONTROL LEVER
185
BALL PIVOT
190
ROLLER , NOT USED
200
LOCK PLATE , 656999
210
LOCK PLATE ROLLER TO LEVER
220
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
230
SCREW PUMP TO BRACKET
240
SPRING , NOT USED
250
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
260
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
270
NUT
