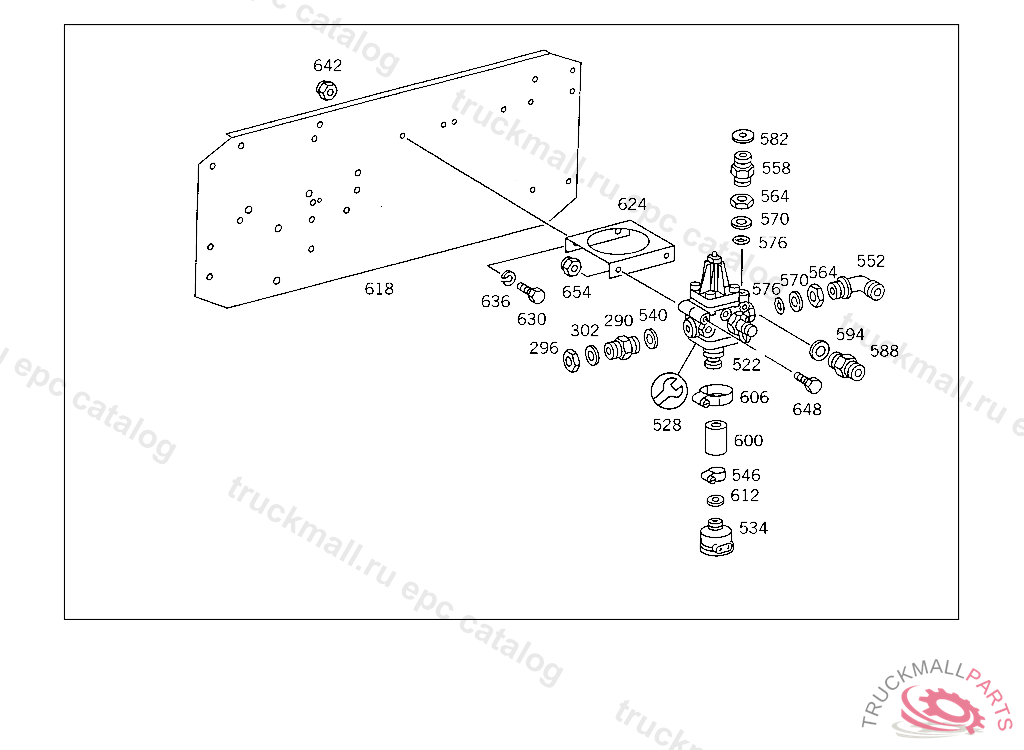

Поз.
Артикул
Описание
290
FITTING SHUTTLE VALVE,CONNECTION: "20"
290
FITTING SHUTTLE VALVE,CONNECTION: "20"
296
NUT CHECK VALVE TO AIR RESERVOIR
302
WASHER
522
VALVE PRESSURE REGULATOR WABCO
522
VALVE PRESSURE REGULATOR WABCO
522
VALVE PRESSURE REGULATOR WABCO
522
PRESSURE REGULATOR , Replaced By: A0034314806
528
REPAIR KITTO 003 431 48 06
528
REPAIR KIT PRESSURE REGULATOR WABCO
534
MUFFLER TRAILER CONTROL VALVE
534
MUFFLER , Replaced By: A0004302370
534
MUFFLER PRESSURE REGULATOR BREATHING
534
MUFFLER PRESSURE REGULATOR BREATHING
540
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
546
CLAMP25-40X13 MM
546
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
552
ELBOW FITTING PRESSURE REGULATOR,CONNECTION: "21",051560
552
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
552
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
558
FITTING AIR RESERVOIR,CONNECTION: "13"
558
FITTING AIR RESERVOIR,CONNECTION: "13"
558
FITTING AIR RESERVOIR,CONNECTION: "13"
564
NUT CHECK VALVE TO AIR RESERVOIR
570
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
576
O-RING CHECK VALVE TO AIR RESERVOIR
582
SEAL RING LINE CONNECTION
582
SEAL RING LINE CONNECTION
588
FITTING LINE CONNECTION
588
FITTING LINE CONNECTION
588
FITTING LINE CONNECTION, Replaced By: N000000006446
588
FITTING LINE CONNECTION
588
FITTING LINE CONNECTION, Replaced By: N000000006446
594
SEAL RING LINE CONNECTION
600
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
606
CLAMP HOSE TO PRESSURE REGULATOR
612
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
618
BRACKET PRESSURE REGULATOR,067387
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT,048105
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT,048105
618
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,FRONT
624
BRACKET PRESSURE REGULATOR
624
BRACKET PRESSURE REGULATOR,067387
630
SCREW BRACKET TO SIDE MEMBER
636
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
642
NUT STRAP TO BRACKET
642
NUT , Replaced By: N910113010000
648
SCREW REAR AXLE REGULATING SOLENOID VALVE
654
NUT , Replaced By: N913004008001
999
ANTI-FREEZE DEVICE
999
PRESSURE REGULATOR , Replaced By: A0024316506
999
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET FUEL LINE TO BELL HOUSING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
