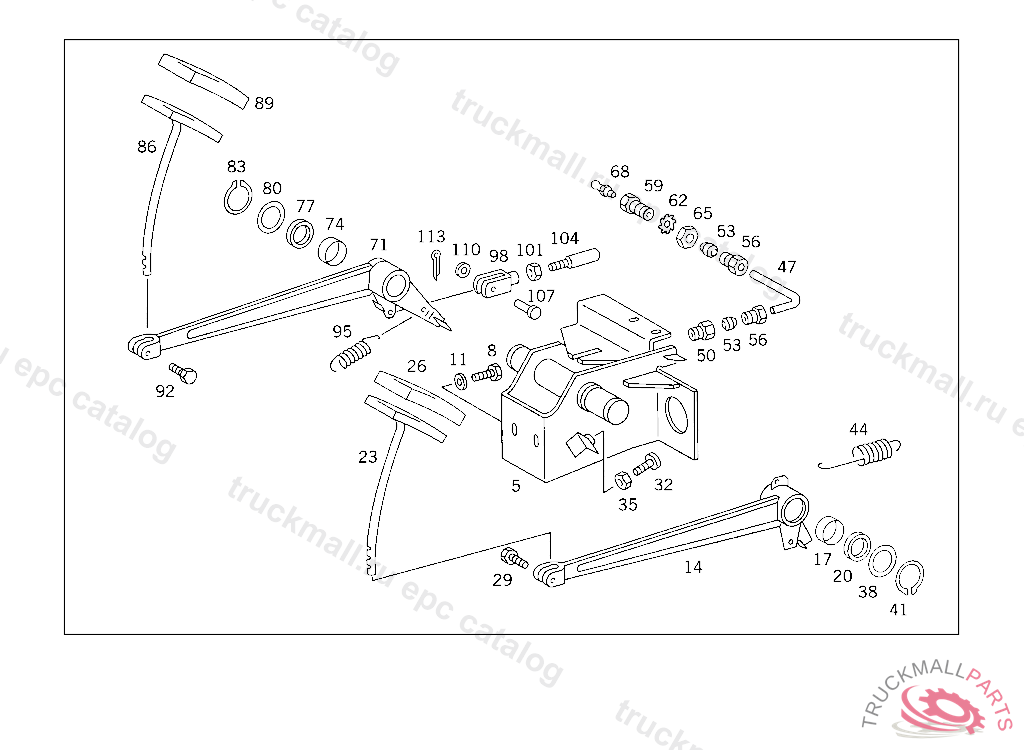

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
8
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
8
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
11
WASHER , Replaced By: N000125010532
11
WASHER RADIATOR TO RUBBER MOUNTING
14
PEDAL CLUTCH
14
PEDAL CLUTCH
17
BUSHING RELEASE SHAFT,TOP 35X39 MM
17
BUSHING CLUTCH PEDAL TO 373 290 70 16
20
SEAL RING BRAKE PEDAL TO 301 290 02 18
23
PEDAL PLATE CLUTCH
26
PAD BRAKE PEDAL
29
SCREW END PIECE TO EXHAUST PIPE M 10X25
32
STOP CLUTCH PEDAL STOP
35
NUT , Replaced By: N304035008001
38
WASHER CLUTCH PEDAL TO BEARING BRACKET
41
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
44
SPRING CLUTCH PEDAL RESET
47
LINE PEDAL ASSEMBLY LUBRICATION 4X0.7 MM, LENGTH AVAILABLE 25000 MM
50
CONNECTOR TRAILER COUPLING,FRONTVOGEL
53
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
56
UNION SCREW RELEASE COLLAR LUBRICATION
59
BULKHEAD FITTING RELEASE BEARING LUBRICATION
62
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
65
NUT JOINT TO BRACKET
65
NUT , Replaced By: N308675014001
68
GREASE NIPPLE
71
PEDAL BRAKE
71
PEDAL BRAKE
74
BUSHING CLUTCH PEDAL TO 373 290 70 16
74
BUSHING RELEASE SHAFT,TOP 35X39 MM
77
SEAL RING BRAKE PEDAL TO 301 290 02 18
80
WASHER CLUTCH PEDAL TO BEARING BRACKET
83
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
86
PEDAL PLATE BRAKE,213841
89
PAD BRAKE PEDAL
92
SCREW END PIECE TO EXHAUST PIPE M 10X25
95
SPRING BRAKE PEDAL RELEASE SPRING
98
YOKE , Replaced By: A0009961401
101
NUT BATTERY CABLE
101
NUT BRACKET TO SUPPORT AND TO END PIECE
104
ROD FROM BRAKE PEDAL TO BRAKE VALVE
107
PIN PULL ROD TO CLUTCH LEVER
110
WASHER , Replaced By: N000433010510
113
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
