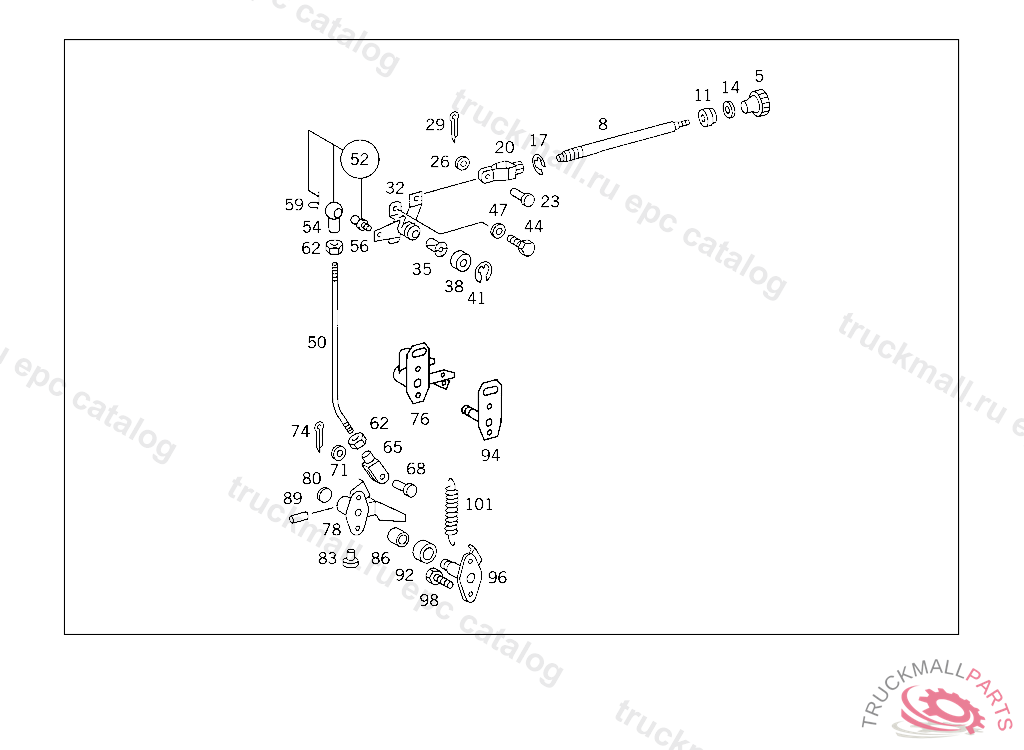

Поз.
Артикул
Описание
5
KNOB , FROM CHASSIS: 023 009981 072 004629 073 001470
8
SPINDLE ENGINE SHUT-OFF, FROM IDENT NO. 039910 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 FROM IDENT NO. 039677 301.265 WITH COUNTRY CODE 837 FROM IDENT NO. 039677
11
DAMPING RING
14
WASHER PRECISION CONTROL
17
LOCK PLATE
20
YOKE PRECISION CONTROL
23
PIN YOKE TO CONTROL LEVER
26
WASHER , Replaced By: N000988008024
29
COTTER PIN ROLLER TO LEVER
32
LEVER CONTROL
35
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
38
COVERING INTERMEDIATE BEARING
41
LOCK PLATE
44
SCREWM 6X12
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
WASHER PLUG SOCKET TO BRACKET
50
ROD FROM CONTROL LEVER TO SHUT-OFF LEVER
52
ANGLE JOINT ROD TO LEVER
56
BALL STUD. BALL PIVOT ROD TO LEVER
62
NUT TACHOGRAPH TO BRACKET
65
YOKE ROD TO LEVER
68
PIN YOKE TO SHUT-OFF LEVER,BOTTOM
71
WASHER FUSE
74
COTTER PIN CLAMP TO BATTERY CASE,PB004444
76
LEVER (SHUT-OFF LEVER)
80
EXPANSION PLUG SHUT-OFF LEVER
83
GREASE NIPPLE
86
BUSHING ,950252
89
CYLINDRICAL PIN
92
SEAL RING
94
PIN , Replaced By: A3003002525
98
SCREW COVER TO SPRING SADDLE
101
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
999
LEVER ENGINE SHUT-OFF
