Mercedes A2025006803 -

C 43 AMG 202.093

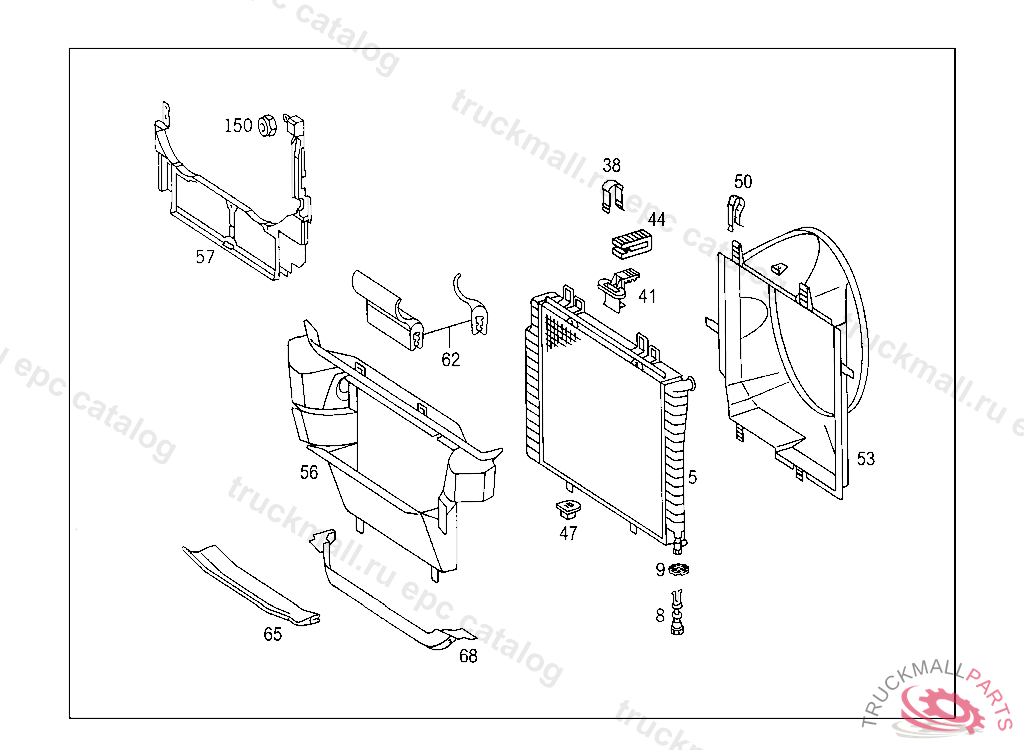

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A2025006803
RADIATOR , Replaced By: A2025007403
8
A0005000185
SCREW WATER DRAIN
9
A0005010176
WASHER WATER DRAIN
38
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
41
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
44
A2025041112
RUBBER MOUNTING , Replaced By: A2105040412, +002A2105040146
47
A1405040212
RUBBER MOUNTING RADIATOR TO SUPPORT
50
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
53
A2025054255
FAN SHROUD
68
A2025050288
COVERING BOTTOM, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
