Поз.
Артикул
Описание
5

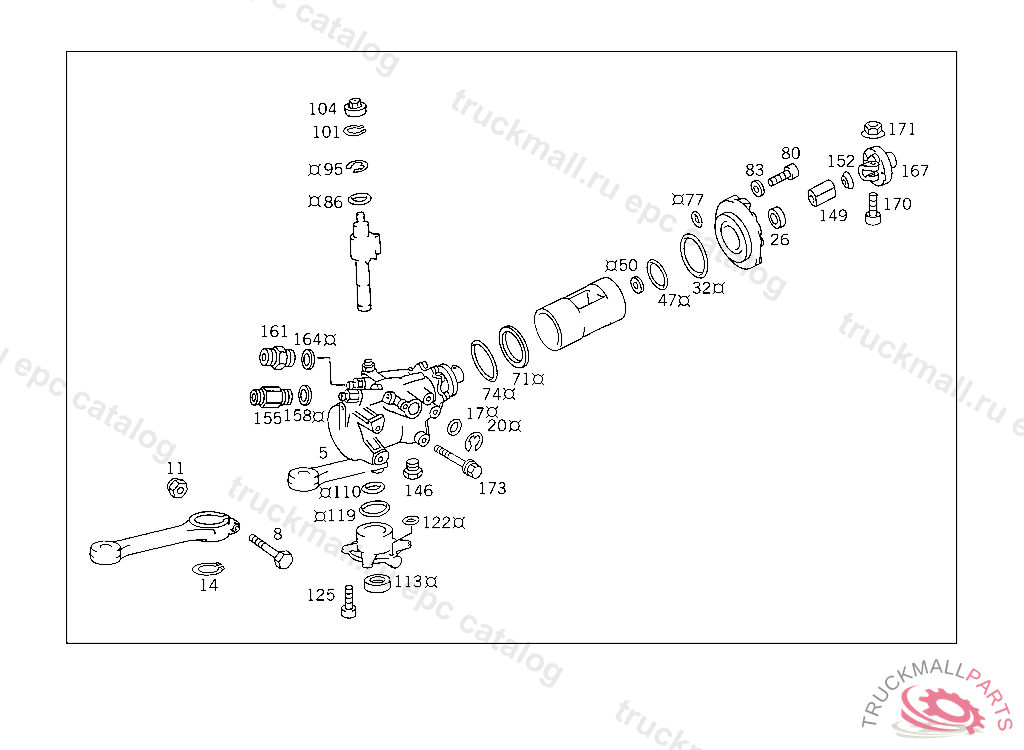

STEERING BOX ASSEMBLY WITH PITMAN ARM
8
SCREW SHIFT LEVER TO FRONT SHIFTING TUBE
8
SCREW , F 980774 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE TO F 980773 WITH CODE 801
11
NUT STRAP TO BRACKET
14
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
17
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
20
LOCK CONTROL VALVE
26
SEAL RING
32
SEAL RING STEERING NUT BEARING 75X3 MM
47
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
50
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
71
SEAL RING
74
SEAL RING
77
SEAL RING VALVE
80
SCREW. CAP BOLT COVER TO CASE M8X25
83
WASHER BRACKET TO CROSS MEMBER
86
SEAL RING
95
LOCK
101
LOCK RINGTO 000 553 37 01,000 553 39 01,
104
NUT
110
SEAL RING
113
SEAL RING , Replaced By: A0119976846
113
SEAL RING
119
SEAL RING
122
SEAL RING VALVE
125
SCREW
146
SCREW PLUG
149
BUSHING
152
LOCK STOP TO BEARING BRACKET
155
FITTING HIGH PRESSURE, F269811
158
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
161
FITTING LOW PRESSURE
164
SEAL RINGTO 000 553 03 05,000 553 18 05,
167
STEERING COUPLING
170
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
171
NUT STEERING COUPLING TO STEERING GEAR,A 166260
173
SCREW STEERING TO FRAME
