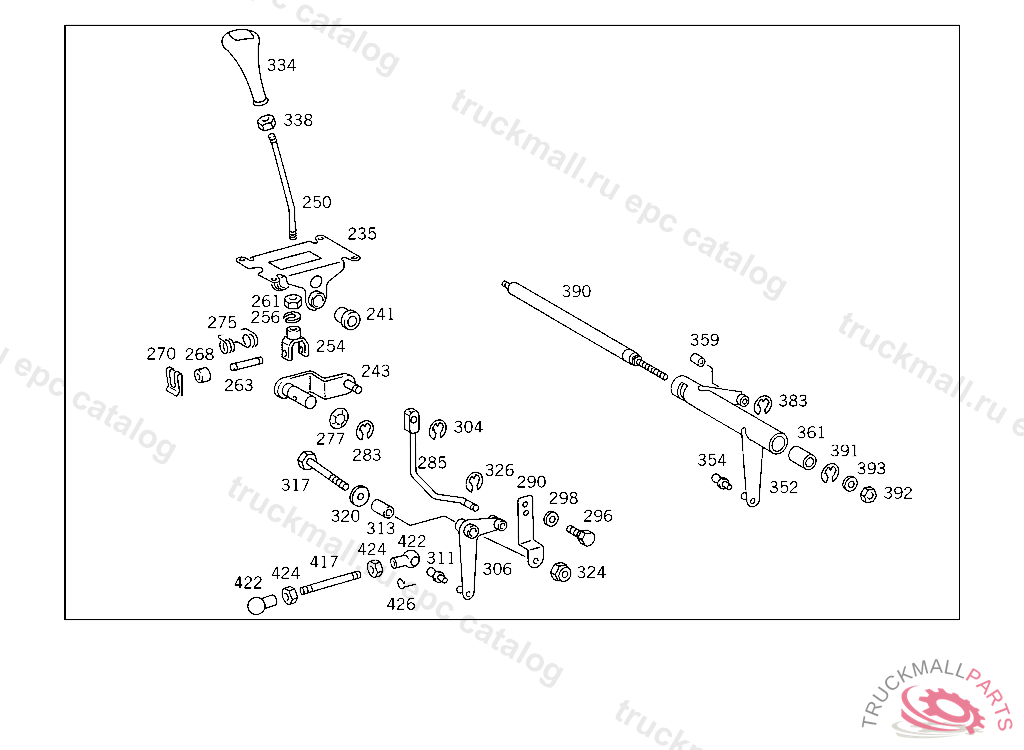

Поз.
Артикул
Описание
235
BEARING BRACKET SHIFTING LEVER
241
BUSHING SHIFT LEVER TO BRACKET, DISCONTINUED,PART IS NO LONGER REQUIRED
243
SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6012600938
243
SHAFT BEARING BRACKET
250
SHIFT LEVER
254
YOKE
256
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
261
NUT SHIFT LEVER UPPER PART M 10X1
263
PIN BRACKET TO SHIFT LEVER,K 032407
268
BUSHING BRACKET TO SHIFT LEVER,K 032407
270
LOCK
275
SPRING SHIFT LEVER BEARING
277
SPRING WASHER LEVER TO BRACKET
283
LOCK PLATE
285
SHIFTING ROD ,P 068310
285
SHIFTING ROD
285
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6012601533
285
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6012601633
285
SHIFTING ROD ,P 068309, Replaced By: A6012601733, +001A6012603382
290
PLATE
290
PLATE
296
SCREW OIL LINE TO CRANKCASE
298
WASHER SWITCH TO FIRE WALL
304
LOCK PLATE RELEASE LEVER TO SHAFT
306
LEVER
311
BALL PIVOT BOTTOM B13X5 MM
313
BUSHING LEVER TO BRACKET
317
SCREW AT SHIFT LEVER M 8 X 45,P 234011
320
WASHER BRACKET TO LEFT SIDE MEMBER
320
WASHER , Replaced By: N009021008213
324
NUT , Replaced By: N913004008001
324
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
326
LOCK PLATE LEVER TO BRACKET
334
HANDLE GEARSHIFT LEVER KNOB
338
NUT , Replaced By: N308675010000
338
NUT PUSH ROD
352
SHIFTING TUBE ,P 068309, Replaced By: A6012603482, +001A6012601733
352
SHIFTING TUBE , Replaced By: A6012603382
352
SHIFTING TUBE ,P 068310
354
BALL PIVOT BOTTOM B13X5 MM
359
BUSHING SHIFTING TUBE
361
BUSHING ,781683, 10/50820177, 20/60
383
LOCK PLATE LEVER TO BRACKET
390
PIN SHIFT CASE
391
LOCK RING SHIFT LEVER TO PIVOT PIN
392
NUT
393
WASHER RADIATOR TO RUBBER MOUNTING
393
WASHER , Replaced By: N000125010532
417
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
422
BALL SOCKET ROD TO BALL PIVOT
424
NUT , Replaced By: A0009900851
424
NUT AT SHIFT LEVER
424
NUT
426
SECURING CLIP. CIRCLIP
999
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
SLAVE CYLINDER , Replaced By: A0012956807
999
SLAVE CYLINDER CLUTCH OPERATION TEVES
999
STOP FULL THROTTLE
999
SLEEVE LINK
999
BOOT
999
HANDLE (GEARSHIFT LEVER KNOB)
999
HANDLE SHIFT LEVER,556499
999
SLOTTED GATE
999
PLATE PLATE TO SHIFT CASE,P 068310
999
BOOT CAB SEALING,781683, 10/50820177, 20/60
999
WASHER
999
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
COVER PLATE MASTER CYLINDER TO CONSOLE
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
HOSE
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
SCREW PLUG
999
HOSE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE, 10/50 FROM IDENT NO. 240085-499999-P 000001 ALSO INSTALLED ON 230112-230115,230202,230331-230335,234605,234726,235450,238246,238997,239955. 20/60 FROM IDENT NO. 240114-499999 ALSO INSTALLED ON 237249,239122 FROM IDENT NO. 556500 ALSO INSTALLED ON 548162,551144,551145,551405,551606,552633 P 000001 UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
ROD LINK
999
ROD
999
ROD
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
STAY BRAKE FLUID RESERVOIR
