Поз.
Артикул
Описание
5

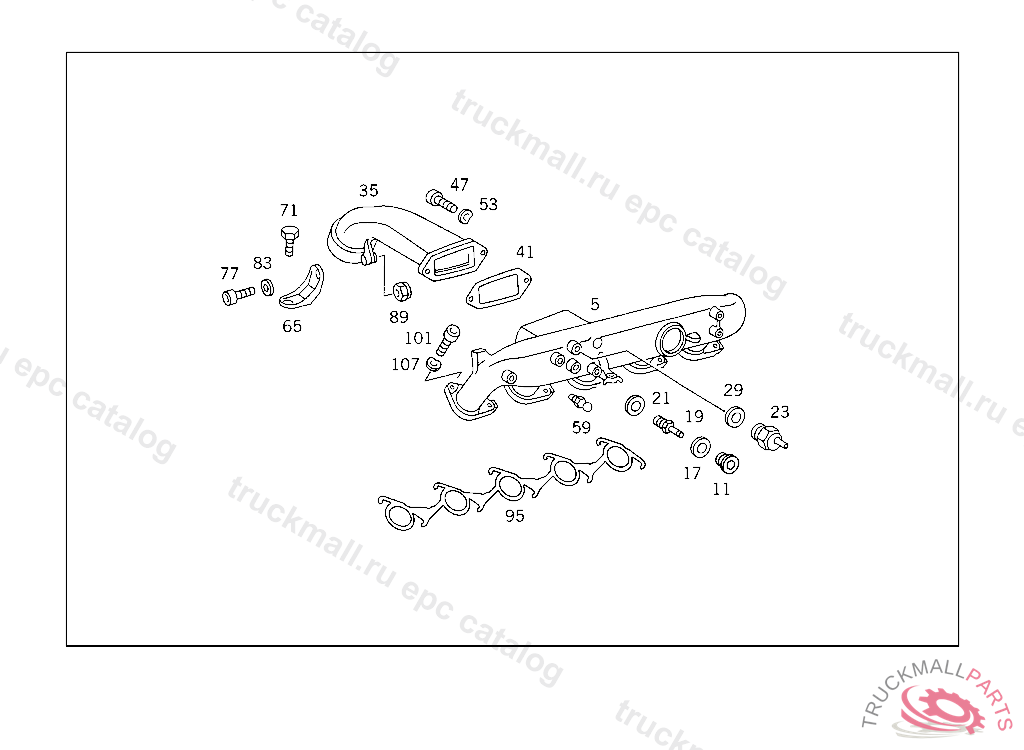

AIR LINE INTAKE MANIFOLD
11
SCREW PLUG , Replaced By: N000000000648
11
SCREW PLUG, FILLING HOUSING,BOTTOM
17
SEAL RINGTO 001 431 72 14
17
SEAL RING RELAY VALVE,CONNECTION: "41"
19
CONNECTOR
21
SEAL RING SCREW PLUG
23
SENDER UNIT CHARGING AIR LINE
29
SEAL RING
35
CHARGING AIR LINE TURBOCHARGER TO EXHAUST MANIFOLD
41
GASKET
41
GASKET , Replaced By: A6020960080
47
SCREW , Replaced By: N000912006175
47
SCREW , Replaced By: A0019907212
47
SCREW SHIM TO LEAF SPRING
53
SPRING WASHER LICENSE PLATE TO BRACKET
59
BALL PIVOT
65
BRACKET TURBOCHARGER TO EXHAUST MANIFOLD
71
SCREW PUMP TO BRACKET
71
SCREW , Replaced By: N304017006016
77
SCREW OIL LINES TO ENGINE,001498
83
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
89
NUT , Replaced By: N913023006001
89
NUT , Replaced By: N910112006001
95
GASKET , Replaced By: A6021410280
95
GASKET , Replaced By: A6021410580
95
GASKET , Replaced By: A6021410880
95
GASKET , Replaced By: A6031410880
95
GASKET INTAKE MANIFOLD TO CYLINDER HEAD, TO BE ADAPTED DURING ASSEMBLY
101
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
107
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
107
SPRING WASHER , Replaced By: N000137008212
