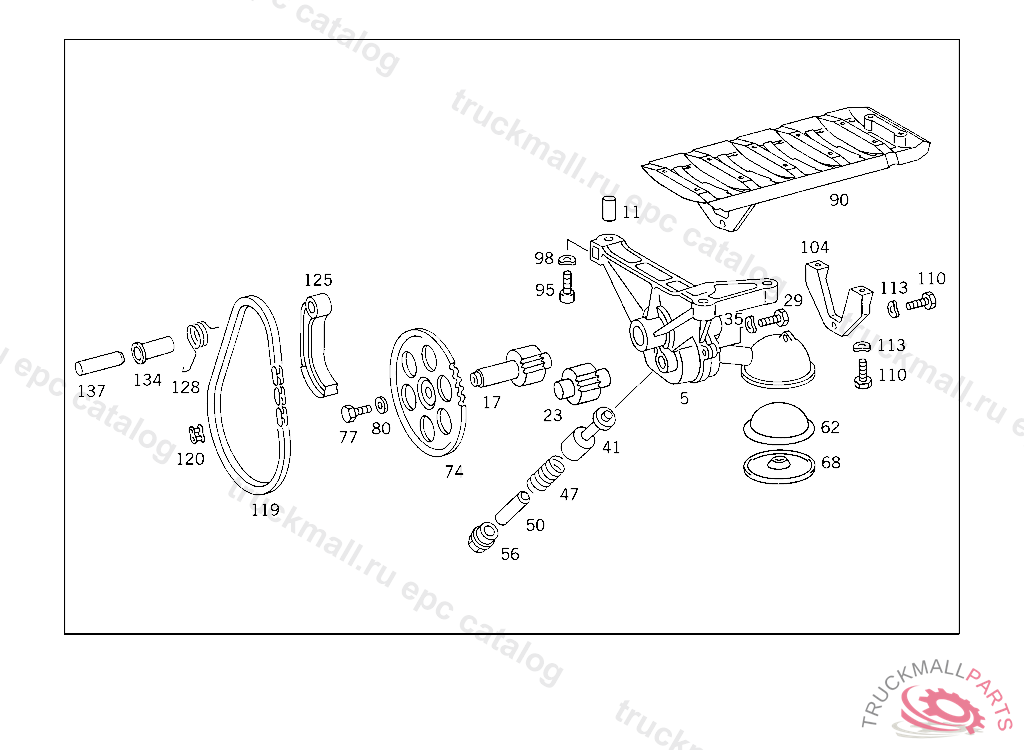

Поз.
Артикул
Описание
5
OIL PUMP
5
OIL PUMP , Replaced By: A6031802201
5
OIL PUMP , Replaced By: A6031803001
11
SLEEVE
17
DRIVE SHAFT
23
SHAFT
29
SCREW LICENSE PLATE TO BRACKET
29
SCREW , Replaced By: N304017006020
35
SPRING WASHER LICENSE PLATE TO BRACKET
41
PISTON PRESSURE RELIEF VALVE TO 602 180 02 01/ 04 01/ 09 01
41
PISTON PRESSURE RELIEF VALVE TO 602 180 29 01
47
SPRING PRESSURE RELIEF VALVE
50
PIN PRESSURE RELIEF VALVE
50
PIN , Replaced By: A6011810174
56
SCREW PLUG PRESSURE RELIEF VALVE
62
STRAINER
68
END RING
74
DRIVE GEAR
74
DRIVE GEAR , Replaced By: A6031810112
77
SCREW , Replaced By: N304017008023
77
SCREW CABLE HARNESS MOUNTING
80
WASHER DRIVE GEAR TO DRIVE SHAFT
95
SCREW , Replaced By: N000912008204
95
SCREW. CAP BOLT SEAT MOUNTING M8X35
98
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
98
SPRING WASHER , Replaced By: N000137008212
104
REINFORCEMENT OIL SUCTION BASKET
110
SCREW PUMP TO BRACKET
110
SCREW , Replaced By: N304017006018
110
SCREW , Replaced By: N304017006016
110
SCREW COVER PLATE TO COVER PLATE M 6 X 12
113
SPRING WASHER LICENSE PLATE TO BRACKET
119
ROLLER CHAIN , Replaced By: A0039970094
119
ROLLER CHAIN , Replaced By: A0039970094
119
ROLLER CHAIN , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 942,946,947,993043644, Replaced By: A0039977494
119
ROLLER CHAIN
120
CHAIN LOCK LINK , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 942,946,947,993043644, Replaced By: A0009973298
120
CHAIN LOCK LINK
125
CLAMPING BRACKET OIL PUMP CHAIN TIGHTENER
128
SPRING OIL PUMP CHAIN TIGHTENER
134
BUSHING OIL PUMP CHAIN TIGHTENER
137
CYLINDRICAL PIN OIL PUMP CLAMPING BRACKET BEARING
