Поз.
Артикул
Описание

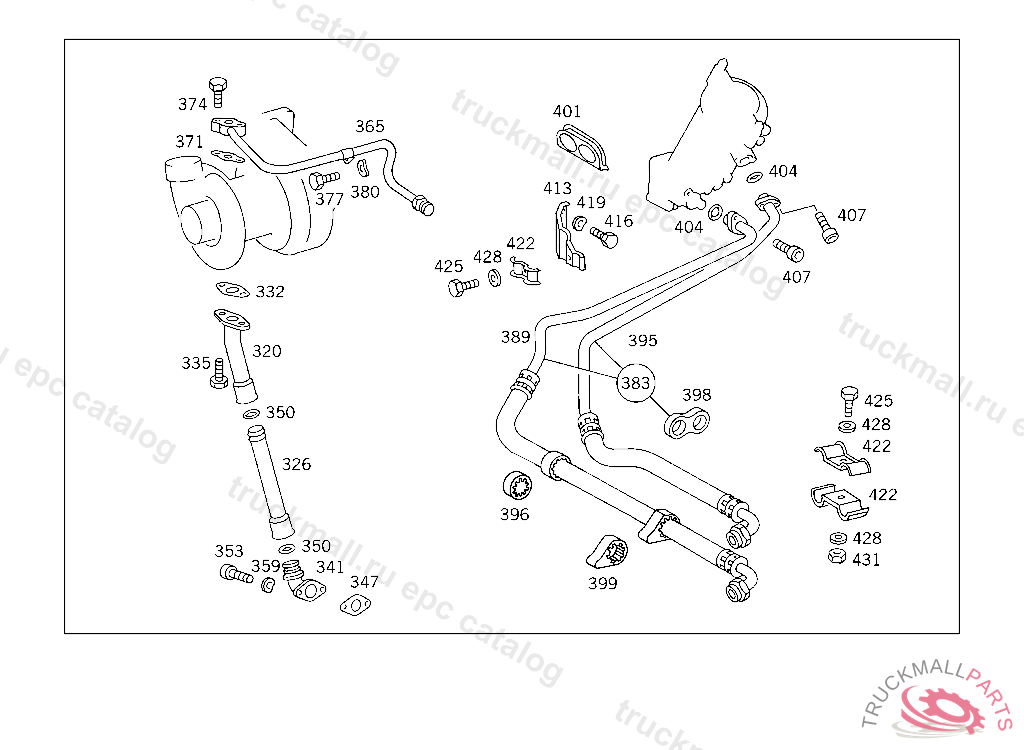

320
OIL LINE , 960 049513 963 004190 971 007421
320
OIL LINE FROM TURBOCHARGER TO CYLINDER CRANKCASE, 960 049514 963 004191 971 007422
326
OIL LINE FROM TURBOCHARGER TO CYLINDER CRANKCASE
332
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6031870580
332
GASKET FLANGE TO TURBOCHARGER
335
SCREW PIPE CLAMP
335
SCREW , Replaced By: N304017008021
341
FLANGE , Replaced By: A6031872045
341
FLANGE OIL RETURN LINE TO CYLINDER CRANKCASE, 960 049513 963 004190 971 007421
341
FLANGE OIL RETURN LINE TO CYLINDER CRANKCASE, 960 049514 963 004191 971 007422
347
GASKET OIL RETURN LINE TO CYLINDER CRANKCASE
347
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6031870680
350
SEAL RING OIL LINE TO OIL FILTER
353
SCREW BEARING BRACKET TO TRANSMISSION
353
SCREWM 6X16
359
SPRING WASHER LICENSE PLATE TO BRACKET
365
OIL LINE
371
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6031870480
371
GASKET LUBRICATING OIL LINE TO TURBOCHARGER
371
GASKET FLANGE TO TURBOCHARGER
374
SCREW , Replaced By: N000000000190
374
SCREW
377
SCREWROCKINGER,TYP 59 U150
377
SCREW , Replaced By: A0009847929
377
SCREW , Replaced By: N304017006018
377
SCREW COVER PLATE TO COVER PLATE M 6 X 12
380
SPRING WASHER LICENSE PLATE TO BRACKET
383
OIL LINE FROM OIL FILTER TO OIL COOLER
383
OIL LINE , Replaced By: A6031800930
383
OIL LINE , Replaced By: A6031800930
398
RUBBER RING OIL LINES TO 603 180 20 30, 603 180 21 30
401
BRACKET OIL LINES TO 603 180 20 30, 603 180 21 30
404
SEAL RING OIL LINE TO OIL FILTER
407
SCREW
413
BRACKET OIL LINE TO CRANKCASE
416
SCREW , Replaced By: N304017006018
416
SCREW COVER PLATE TO COVER PLATE M 6 X 12
419
SPRING WASHER LICENSE PLATE TO BRACKET
422
CLAMPING PIECE OIL LINE TO BRACKET, 962133 N 000001 P 000001
425
SCREW LICENSE PLATE TO BRACKET
425
SCREW , Replaced By: N304017006020
428
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
