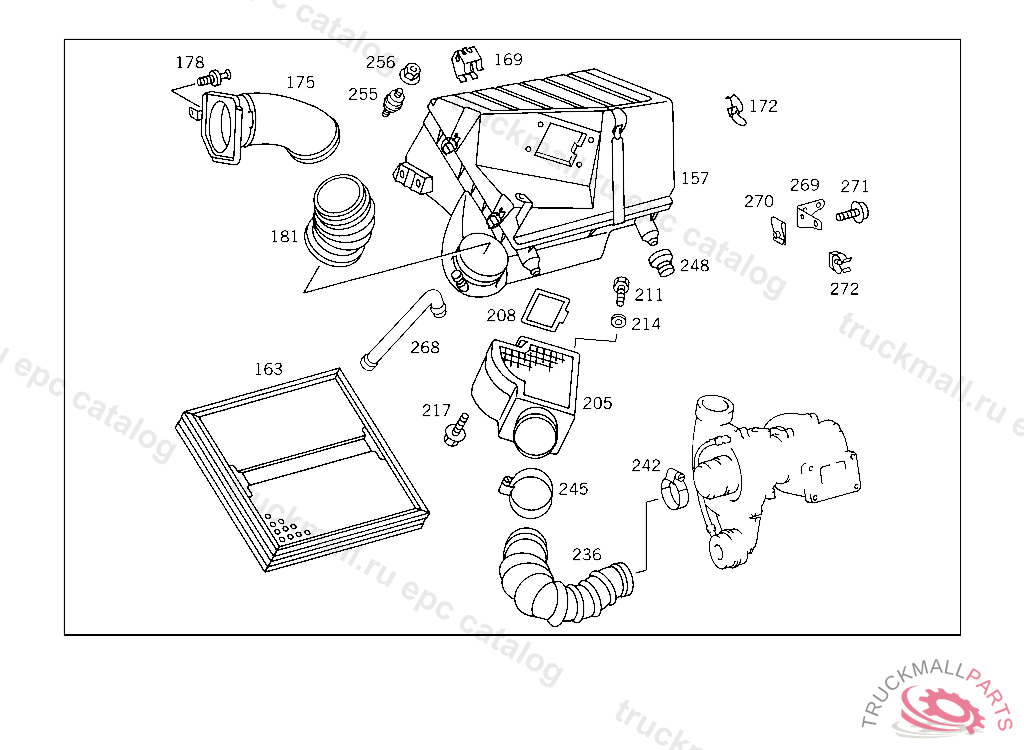

Поз.
Артикул
Описание
157
AIR CLEANERMANN & HUMMEL
163
FILTER ELEMENT
169
CLIP
172
FASTENER
172
FASTENER , Replaced By: A6010900258
175
SCOOP COLD AIR INTAKE
178
RIVET
181
BOOT
205
INDICATOR AIR-FLOW SENSOR
208
SEAL RING MUFFLER FILTER TO AIR-FLOW SENSOR
211
SCREW COVER PLATE TO BRACKET
214
WASHER COMPRESSED AIR LINE TO BRACKET
214
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
217
COMBINATION BOLT BRACKET TO TIMING CASE COVER M 6X16
217
SCREW BEARING BRACKET TO TRANSMISSION
236
INTAKE PIPE
242
LOOM TIE LINE MOUNTING
242
CLAMP , Replaced By: A0069972790
245
CLAMP BOOT TO STEERING
248
RUBBER BUFFER MUFFLER FILTER TO STAY
255
BUFFER HEATER UNIT
256
NUT , Replaced By: N913023006001
256
NUT , Replaced By: N910112006001
256
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
268
HOSE DRAIN HOSE TO MUFFLER FILTER
269
BRACKET PRESSURE CONVERTER ON AIR CLEANER
270
LOCK. NUT , Replaced By: A0039941745
271
SCREW BEARING BRACKET TO TRANSMISSION
271
COMBINATION BOLT BRACKET TO TIMING CASE COVER M 6X16
272
BRACKET JACK FIXTURE
