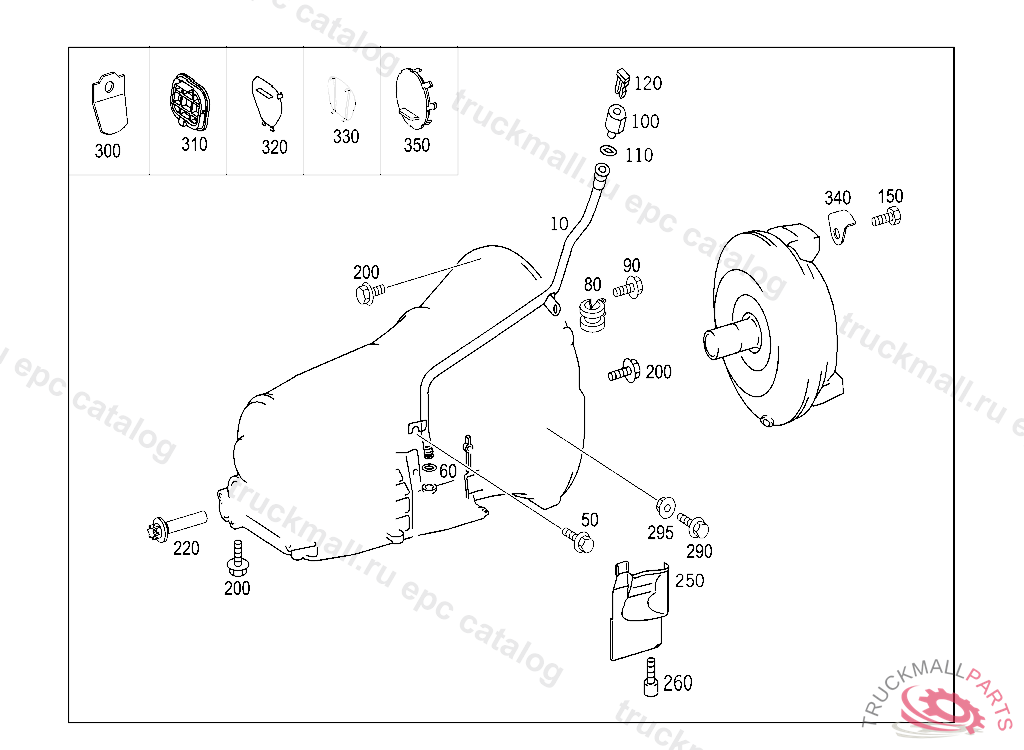

Поз.
Артикул
Описание
10
OIL FILLER PIPE , A 59748720030929 E 02000020070101
10
OIL FILLER PIPE , A 59748620030929 F 50935720031102 R 13237320031113
50
HEXAGON HEAD BOLT
60
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
80
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
MOUNTING CLAMP OIL FILLER TO ENGINE
90
HEXAGON HEAD BOLT
100
COVER OIL FILLER PIPE
110
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
120
DOWEL PIN OIL FILLER PIPE
150
SCREWM 8X18
200
SCREW PLATE TO FRAME M 10X45
220
HEXALOBULAR BOLT ENGINE-TRANS. CONNECTION W. BRACKET FOR EXHAUST MANIFOLD M10X50
250
COVER TRANSMISSION CASE AND OIL PAN
260
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
330
EXPANSION PLUG MOUNTING OPENING FOR TRANSDUCER
