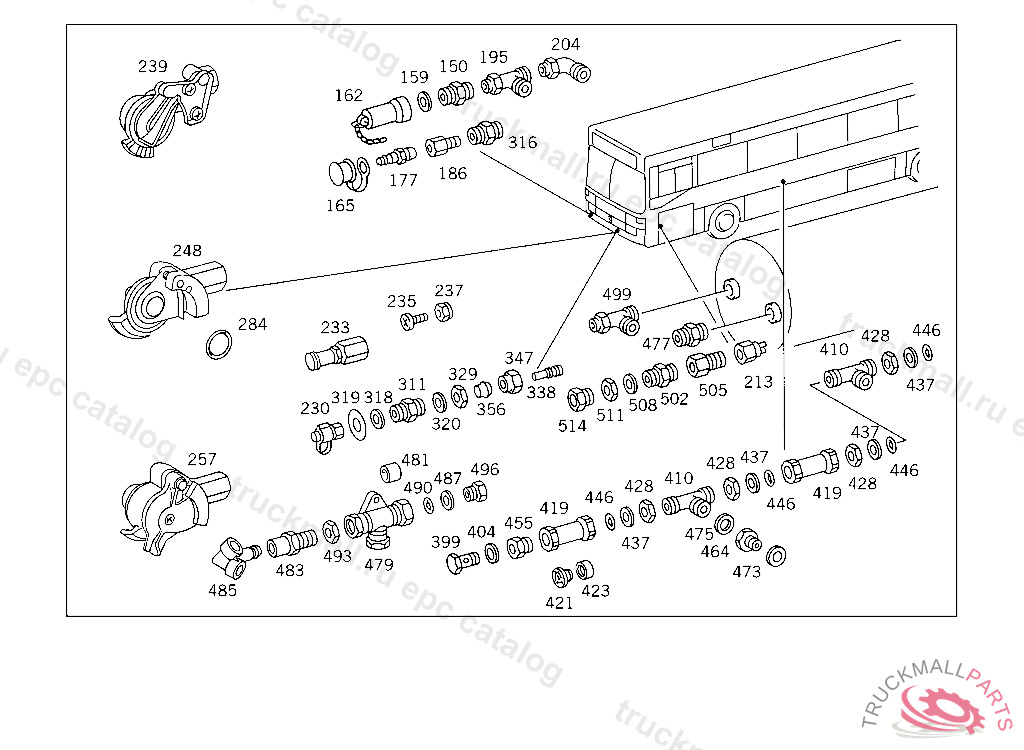

Поз.
Артикул
Описание
150
FITTING
159
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
162
PROTECTIVE CAP
165
PROTECTIVE CAP TEST CONNECTION
177
CONNECTOR DOOR I ENTRANCE
186
FITTING REFILLING CONNECTION
186
FITTING DOOR I ENTRANCE
195
T-FITTING 3/2-WAY VALVE
204
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
213
PRESSURE SWITCH MAKE PULSE 0.5BAR
230
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
233
TEST CONNECTION
235
SCREW STEP SWITCH
237
NUT TWO-WAY VALVE TO BRACKET
239
BRAKE LINE COUPLING AT REAR CROSS MENBER
248
BRAKE LINE COUPLING AT REAR CROSS MENBER
257
BRAKE LINE COUPLING AT REAR CROSS MENBER
284
SEAL RINGBOSCH
311
FITTING SHUTTLE VALVE
311
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
316
FITTING FITTING TO SUBSTRUCTURE
318
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
319
GUIDE SIGN
320
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
329
NUT BRACKET TO SIDE MEMBER
338
FITTING RELAY VALVE,CONNECTION: "10",950459
347
UNION NUT LINE CONNECTION
347
UNION NUT LINE CONNECTION, Replaced By: N000000006239
356
GLAND , Replaced By: A0019901967
356
SEAL CONE LINE CONNECTION
399
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
399
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
404
SEAL RINGTO 006 997 00 72
410
T-FITTING , Replaced By: N074317000100
419
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
421
VALVE SEAT RINGWABCO,5 433388
423
BUSHINGWABCO,5 433388
428
NUT CHECK VALVE TO AIR RESERVOIR
437
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
446
O-RING CHECK VALVE TO AIR RESERVOIR
455
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
464
FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
473
SEAL RINGTO 000 553 03 05,000 553 18 05,
475
SEAL RING LINE CONNECTION
477
FITTING AT AIR RESERVOIR
479
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
481
VALVE BODYTO 002 429 95 44
483
FITTING LINE CONNECTION
485
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
487
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
490
O-RING CHECK VALVE TO AIR RESERVOIR
493
NUT CHECK VALVE TO AIR RESERVOIR
496
SCREW. UNION SCREW LINE CONNECTION
499
T-FITTING POWER STEERING
502
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
505
ADAPTER FITTING TEST CONNECTION
508
WASHER
511
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
514
SCREW. UNION SCREW LINE CONNECTION
514
SCREW. UNION SCREW , Replaced By: A0009973734
999
REPAIR KIT CHECK TO 003 429 07 44
999
VALVE CONEBOSCH
999
COVERWABCO
999
REPAIR KITKNORR
999
CONNECTOR REFILLING CONNECTION,FRONT
999
SWITCH (PRESSURE SWITCH) 0.5 BAR
999
FITTING , Replaced By: A0009977172
999
REPAIR KITWABCO
999
FITTING SHUTTLE VALVE,CONNECTIONS: "2,11,12"
