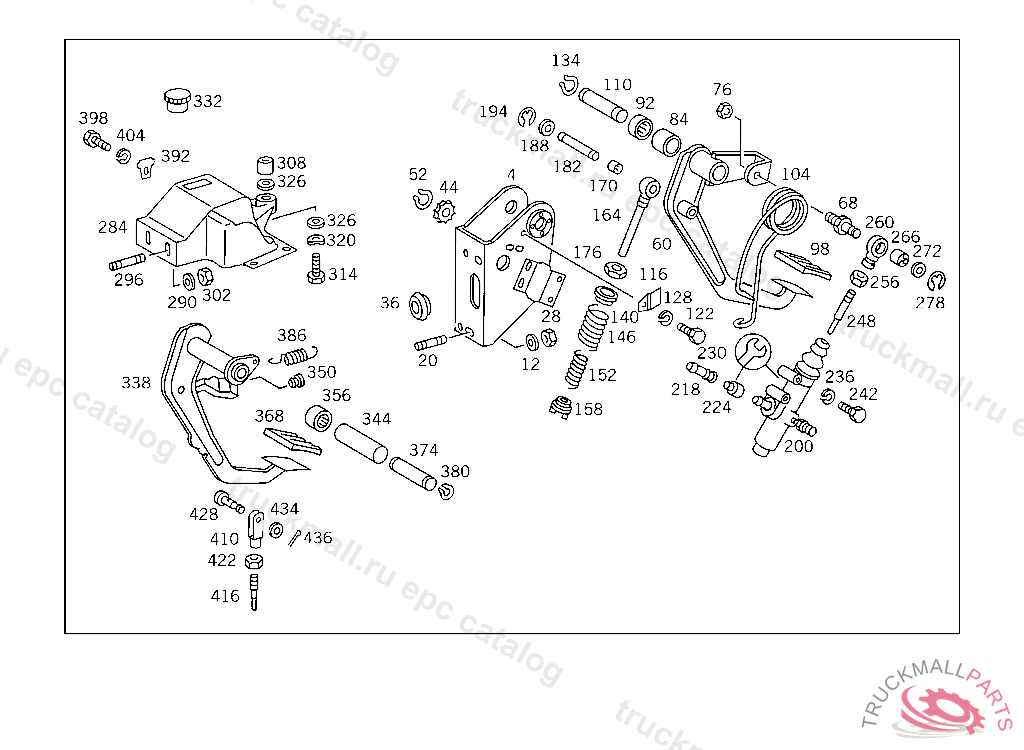

Поз.
Артикул
Описание
4
BEARING BRACKET CLUTCH, IN CASE OF PEDAL BEARING BRACKET WITH SHIMS,DELIVER ADDITIONALLY: 3X 000939 008136,1X 620 290 03 34 UP TO IDENT NO. 5 238024, SEE SERVICE INFORMATION 29/4
12
WASHER EXHAUST MUFFLER TO STRAP
12
WASHER , Replaced By: N000125008443
20
STUD BOLT BRACKET TO CROSS MEMBER
20
STUD BOLT BRACKET TO TRANSMISSION
28
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
28
NUT , Replaced By: N913004008001
28
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
36
GROMMET FIRE WALL,LEFT,IN FRONT LEGROOM,5 2380255 301948
44
STOP PEDAL ASSEMBLY
52
LOCK STOP TO BEARING BRACKET
52
LOCK RING , Replaced By: A0079942041
60
PEDAL CLUTCH PEDAL,4 915383
68
PIN CLUTCH PEDAL,5 238024
76
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
76
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
76
NUT , Replaced By: N913004008001
84
SPACER TUBE CLUTCH PEDAL
92
NEEDLE BEARING
98
PAD BRAKE
104
SPRING CLUTCH PEDAL RESET
110
PIVOT PIN PEDAL TO BEARING BRACKET
116
LOCK PEDAL TO BEARING BRACKET
122
SCREW PUMP TO BRACKET
122
SCREW , Replaced By: N304017006016
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
134
LOCK RING
140
SPRING RETAINER SPRING TO PUSH ROD
146
SPRING (DEAD CENTER SPRING) 35 MM
152
SPRING (DEAD CENTER SPRING) 23.2 MM
158
SPRING RETAINER SPRING TO PUSH ROD
164
ROD OVER-CENTER ACTING SPRING
164
ROD OVER-CENTER ACTING SPRING
170
NEEDLE BEARING JOINT TO PIN
170
NEEDLE BEARING JOINT TO PIN
170
NEEDLE BEARING JOINT TO PIN
176
NUT PUSH ROD
176
NUT , Replaced By: N308675010000
182
PIN PUSH ROD TO PEDAL
188
WASHER BRACKET TO CROSS MEMBER
194
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
200
MASTER CYLINDER CLUTCH,LESS DE-AERATION
200
MASTER CYLINDER , Replaced By: A0012956006
218
INTERMEDIATE PIECE CLUTCH MASTER CYLINDER
224
PLUG
230
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON TO 001 295 60 06
230
REPAIR KIT TO MASTER CYLINDER HAVING ALUMINUM PISTON TO 000 295 68 06,001 295 29 06
230
REPAIR KIT , Replaced By: A0002903412
236
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
242
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
248
ROD MASTER CYLINDER
256
NUT , Replaced By: N304035008001
256
NUT
260
ARTICULATION PIECE CLUTCH MASTER CYLINDER
260
ARTICULATION PIECE CLUTCH MASTER CYLINDER
266
NEEDLE BEARING JOINT TO PIN
266
NEEDLE BEARING JOINT TO PIN
266
NEEDLE BEARING JOINT TO PIN
272
WASHER BRACKET TO CROSS MEMBER
278
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
284
BEARING BRACKET BRAKE
290
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
296
STUD BOLT BRACKET TO CROSS MEMBER
302
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
302
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
302
NUT , Replaced By: N913004008001
308
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
314
SCREW CLUTCH TO FLYWHEEL
320
SPRING WASHER STEERING COLUMN BRACKET TO CAB
326
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
326
WASHER , Replaced By: A4039900040
332
EXPANSION PLUG , Replaced By: A0009973220
332
PLUG , Replaced By: A0009972020
332
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
332
PLUG CAB FLOOR SEALING
338
PEDAL BRAKE
338
PEDAL BRAKE
344
SPACER TUBE
350
STOP
356
NEEDLE BEARING
368
PAD BRAKE
374
PIVOT PIN PEDAL TO BEARING BRACKET
380
LOCK RING
386
SPRING BRAKE PEDAL RELEASE SPRING
392
LOCK , Replaced By: A6732920073
392
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
398
SCREW COVER PLATE TO COVER PLATE M 6 X 12
398
SCREW , Replaced By: N304017006018
404
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
410
YOKE OPERATING ROD,K 202311
416
ROD , Replaced By: A9702900039
416
ROD PISTON ROD AND PUSH ROD
422
NUT
422
NUT , Replaced By: N304035008001
428
PIN ROD TO BRAKE PEDAL
434
WASHER BRACKET TO CROSS MEMBER
436
COTTER PIN LEVER TO ROD
436
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
LOOM TIE LINE MOUNTING 280 MM
999
NEEDLE BEARING JOINT TO PIN
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
999
ANGLE LINE MOUNTING
999
REPAIR KIT DEAD CENTER SPRING
999
LINE FROM VALVE TO CONNECTION FITTING 1500 MM, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS MOUNTING
999
BRACKET BRACKET TO ENGINE,REAR
999
BRACKET HYDRAULIC LINE TO TRANSMISSION
999
BRACKET AT SIDE MEMBER,5 157364
999
BRACKET AT SIDE MEMBER
999
BRACKET FUEL LINES TO TRANSMISSION
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT STRAP TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
