Поз.
Артикул
Описание

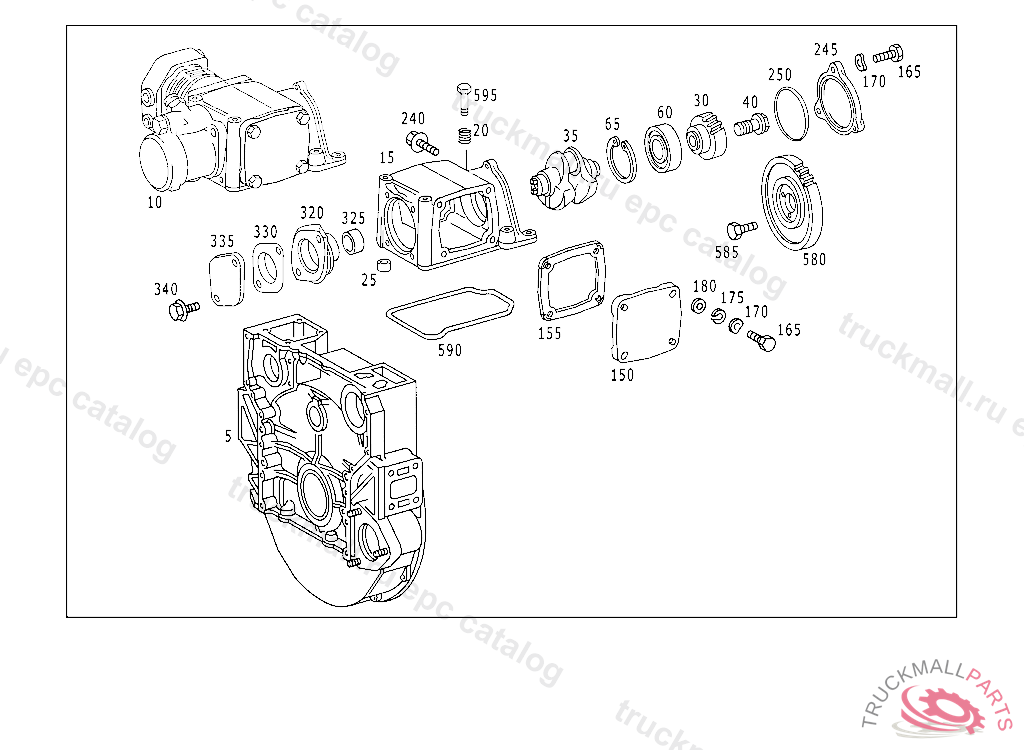

5
TIMING CASE , Replaced By: A4030104633
5
TIMING CASE ,259824, Replaced By: A4230101033, +010A4039900504
5
TIMING CASE
5
TIMING CASE
10
COMPRESSOR
10
COMPRESSOR
10
COMPRESSOR
10
COMPRESSOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 401-403 264430 404 006644 407 028975 421-423 129290 424 002427 427 000747, Replaced By: A4071301515
10
COMPRESSOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 401-403 264430 404 006644 407 028975 421-423 129290 424 002427 427 000747, Replaced By: A4271300215
10
COMPRESSOR , Replaced By: A4471300415
10
COMPRESSOR , 407 030937 427 002638 447 001444
10
COMPRESSOR , 407 030936 427 002637 447 001443
10
COMPRESSOR
10
COMPRESSOR
10
COMPRESSOR ONE-CYLINDER,WATER-COOLED, ATTACHED VERTICALLY ON THE LEFT
10
COMPRESSOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
COMPRESSOR
10
COMPRESSOR
15
HOUSING
15
HOUSING ,048084
15
HOUSING , Replaced By: A4071300610, +001A4031301045
15
HOUSING , Replaced By: A4471310215, +001A4471310121, +001A4471310280, +002N000931008210
15
HOUSING , Replaced By: A4071300610
15
HOUSING , Replaced By: A4471310015, +001A4471310121, +001A4471310280, +002N000931008210
15
HOUSING
15
HOUSING
20
THREADED INSERT
20
THREADED INSERT ,5 462573
20
THREADED INSERT
25
SPACER TUBE
30
GEAR AIR COMPRESSOR DRIVE
30
GEAR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 969083, Replaced By: A4421300530
30
CRANKSHAFT , Replaced By: A4031310816
30
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311416, +001A4031301645, +001A0001321410
30
CRANKSHAFT , Replaced By: A4031300314
30
DRIVE GEAR , Replaced By: A4031300030
30
DRIVE GEAR , Replaced By: A4031300030
30
DRIVE GEAR , Replaced By: A4071321005
30
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
30
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
30
DRIVE GEAR
35
CRANKSHAFT , Replaced By: A4031310716
35
CRANKSHAFT , Replaced By: A4031310816
35
CRANKSHAFT , Replaced By: A4031311016
35
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311216, +001A4071300445, +001A0001321410
35
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311416, +001A4031301645, +001A0001321410
35
CRANKSHAFT ,888000, Replaced By: A4031311316, +001A4031301645, +001A0001321410
35
CRANKSHAFT , Replaced By: A4031300214
35
CRANKSHAFT , Replaced By: A4031300114
35
CRANKSHAFT , Replaced By: A4031300314
35
CRANKSHAFT , Replaced By: A4031310616
35
CRANKSHAFT ,888001
35
CRANKSHAFT
35
CRANKSHAFT AIR COMPRESSOR, 401-403,421-423,440-443,445,446888001 407,427,447062252
40
SCREW DRIVE GEAR TO CRANKSHAFT
60
CYLINDR. ROLLER BEARING AIR COMPRESSOR BEARING
60
SELF-ALGN.ROLLER BEARING DRIVE GEAR TO CRANKSHAFT
60
SELF-ALGN.ROLLER BEARING , Replaced By: A0009810535
60
CYLINDR. ROLLER BEARING , Replaced By: A0079813001
60
CYLINDR. ROLLER BEARING , Replaced By: A0029819301
60
GROOVED BALL BEARING , Replaced By: A0079813001
65
LOCK RING , Replaced By: A0029947441
65
LOCK BEARING FLANGE IN TIMING CASE & AIR COMPRESSOR HOUSING,RESP.
150
CAP TO PLUG AIR COMPRESSOR OPENING,128243
150
CAP , Replaced By: A4031310921
150
CAP , Replaced By: A4031311021
150
CAP , Replaced By: A4421310021
155
GASKET , Replaced By: A4421310080
155
GASKET
155
GASKET , Replaced By: A4421312080
155
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
155
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
155
GASKET OIL FILTER TO CYLINDER CRANKCASE
155
GASKET OIL FILTER TO CYLINDER CRANKCASE
165
SCREW STOP TO BATTERY CASE
165
SCREW CLUTCH TO FLYWHEEL,760271
165
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
165
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
165
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
170
SPRING WASHER , Replaced By: N000137008212
170
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
175
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
180
WASHER EXHAUST MUFFLER TO STRAP
240
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
240
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
245
CAP COVER TO AIR COMPRESSOR HOUSING,048083048474
245
CAP COVER TO AIR COMPRESSOR HOUSING
250
GASKET COVER TO AIR COMPRESSOR HOUSING
250
SEAL RINGTO 388 476 71 69
250
SEAL RING COVER TO AIR COMPRESSOR HOUSING
250
SEAL RING , Replaced By: A0149976148
320
FLANGE , Replaced By: A4031300845, +001A0149976148
320
FLANGE , Replaced By: A4031300845
320
FLANGE , Replaced By: A4031301045
320
FLANGE
320
FLANGE , Replaced By: A4071300445
320
FLANGE AIR COMPRESSOR BEARING FLANGE
320
FLANGE AIR COMPRESSOR,424.900-000-012333
325
BUSHING
325
BUSHING LONG 19 MM, 003192
325
BUSHING , Replaced By: A0001314250
330
GASKET , Replaced By: A4031310480
330
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
330
GASKET , Replaced By: A3661310080
330
FLANGE GASKET COVER TO TIMING CASE
335
CAP , Replaced By: A4031310821
335
CAP TO PLUG AIR COMPRESSOR,REAR
340
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
340
SCREW BRACKET TO SIDE MEMBER M10X35
340
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
580
DRIVE GEAR , Replaced By: A4071300030
580
GEAR DRIVE GEAR ON CAMSHAFT
585
SCREW CONNECTOR TO REAR SHIFTING ROD
585
SCREW , Replaced By: N304017010043
590
GASKET
590
GASKET , Replaced By: A4071310280
590
GASKET , Replaced By: A4071310580
590
LINE , Replaced By: A4071310080
595
SCREW FAN TO CRANKSHAFT PULLEY
595
SCREW BRACKET TO EXHAUST PIPE BRACKET
595
SCREW WATER PUMP COVER TO WATER PUMP HOUSING M 8X28
595
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
999
SPACER RING PRESSURE DISC TO INTERMEDIATE PLATE
999
COVER000 460 24 80/25 80,001 466 06 01
999
COVER , Replaced By: A0004666505
999
COVERTO 000 460 23 80
999
LOCKING CAP
999
SEALING COMPOUND TUBE OF SEALANT, WITH REAR CRANKSHAFT SEALING TO BE REWORKED,UP TO ENGINE 283201
999
SEALANT , Replaced By: A0019892920
999
SEALING COMPOUND TIMING CASE COVER TO TIMING CASE, UP TO ENGINE 978,979 331710 YEAR OF MANUFACTURE 1994
999
SPRING
999
SEAL RING , INCLUDED IN GASKET KIT,NO LONGER AVAILABLE INDIVIDUALLY
999
CAP
999
PISTON , Replaced By: A0001302519, +001A4032002152, +003N000908026001, +003N007603026106
999
PISTON , Replaced By: A0001302519, +001A4032002152, +003N000908026001, +003N007603026106
999
CYLINDER HEAD , Replaced By: A0001302419, +001A4032002152, +003N000908026001, +003N007603026106
999
CYLINDER HEAD , Replaced By: A0001302419, +001A4032002152, +003N000908026001, +003N007603026106
999
CONNECTING ROD
999
GASKET , Replaced By: A4421310080
999
GASKET
999
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311416, +001A4031301645, +001A0001321410
999
CRANKSHAFT , Replaced By: A4031300214
999
CRANKSHAFT , Replaced By: A4031300314
999
BRACKET
999
EXPANSION PLUG
999
INTAKE PIPE
999
COMPRESSOR , NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
HOUSING , Replaced By: A4071300610, +001A4031301045
999
HOUSING , Replaced By: A4471310215, +001A4471310121, +001A4471310280, +002N000931008210
999
HOUSING , Replaced By: A4071300610
999
COMPRESSOR
999
GASKET
999
CAP
999
LINE COOLING WATER INLET FOR AIR COMPRESSOR
999
BRACKET AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
999
LOCKING CAP TO LOCK COOLING WATER BOTTOM OUTLET
999
TIMING CASE
999
EXPANSION PLUG
999
LINE HORIZONTAL AIR COMPRESSOR TO VERTICAL AIR COMPRESSOR
999
CYLINDER LINER WITH PISTON,AIR-COOLED
999
GASKET , Replaced By: A4421312080
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
999
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
999
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
999
LINE
999
LINE FROM DISTRIBUTOR TO AIR COMPRESSOR
999
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
999
BRACKET AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
999
BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SCREWM 8X28
999
CLAMP , Replaced By: A0069970490
