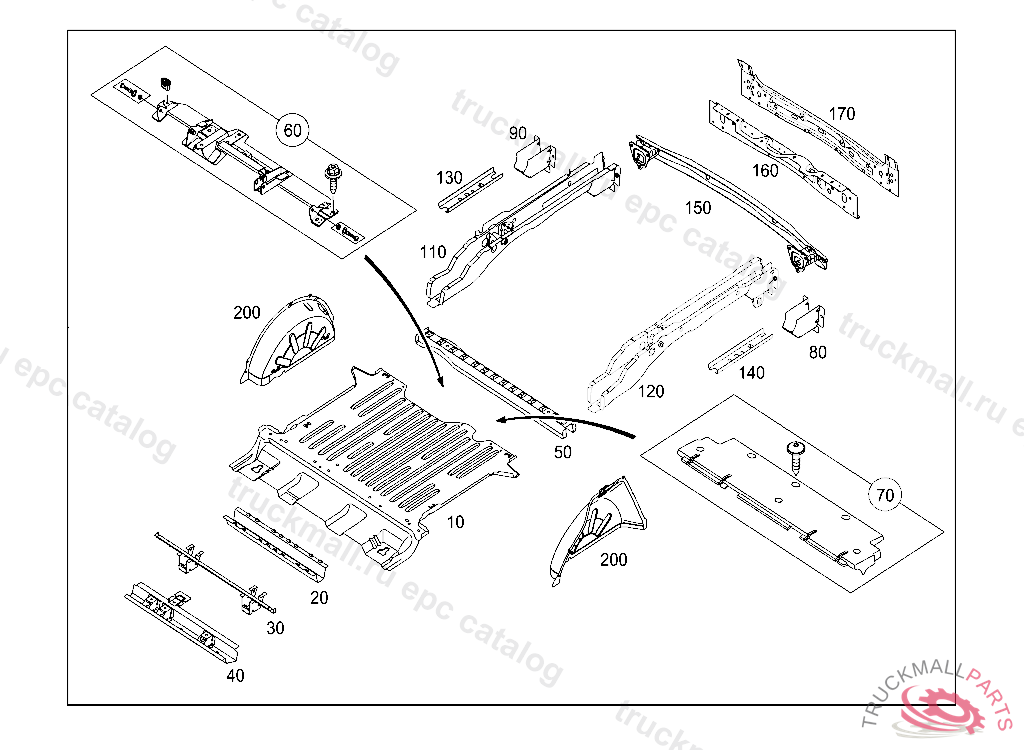

KASTENWAGEN - 415.601 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
10
REAR-END FLOOR REAR BOTTOM
20
CROSS MEMBER FRONT
30
BRACKET FRONT
50
CROSS MEMBER UNDER LOADING FLOOR
60
CROSS MEMBER
70
CARGO FLOOR
80
CONSOLE LEFT REAR
90
CONSOLE LEFT REAR
110
LONGITUDINAL MEMBER RR REAR RIGHT OUTSIDE
120
LONGITUDINAL MEMBER RR REAR LEFT OUTSIDE
130
REINFORCING RAIL AT LEFT OUTER CROSSMEMBER
140
REINFORCING RAIL AT LEFT OUTER CROSSMEMBER
150
END CROSS MEMBER , Replaced By: A4156124400
150
CROSS MEMBER REAR CROSS MEMBER
150
END CROSS MEMBER
160
REAR APRON REAR
170
REAR APRON REAR
