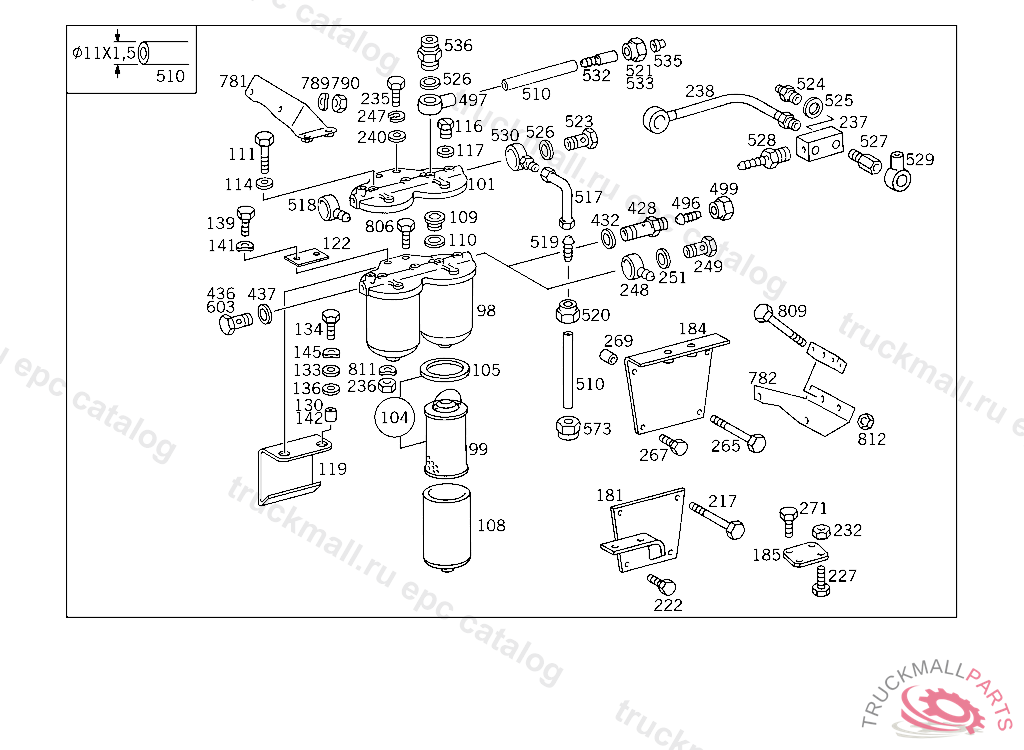

Поз.
Артикул
Описание
98
FILTER MULTI-STAGE FUEL FILTER
98
FILTER , Replaced By: A4420900352
99
FILTER ELEMENT ,D 031294
99
FILTER ELEMENT REPAIR KIT
101
FILTER HEAD FUEL FILTER
101
FILTER HEADTO 442 090 03 52
104
TS AIR FILTER ELEMENT WITH SEAL RING
104
FILTER ELEMENT , Replaced By: A0000901451
105
SEAL RING FUEL FILTER COVER
105
SEAL RING ,D 031246
108
HOUSING
109
SCREW PLUGTO 000 553 03 05,000 553 18 05,
109
SCREW PLUG , Replaced By: N000908014009
110
SEAL RING INJECTION PUMP
110
SEAL RINGTO 000 553 03 05,000 553 18 05,
111
SCREWTO 001 477 20 01,001 477 21 01
114
SEAL RING SCREW PLUG
116
SCREW BREATHER TO 422 090 02 52
117
SEAL RING SCREW PLUG
119
BRACKET , Replaced By: A4220900041
119
BRACKET FUEL FILTER
119
BRACKET DOUBLE FUEL FILTER,MULTI-STAGE FUEL FILTER
122
MOUNTING LEDGE MULTI-STAGE FUEL FILTER TO 403 092 08 40
130
SPACER TUBE FUEL FILTER TO BRACKET
133
FITTED WASHER AS REQUIRED 1.0 MM
134
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 12X40 MM
134
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
134
SCREW BRACKET MOUNTING
134
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
136
WASHER
139
SCREW BEARING BRACKET TO FRAME
139
SCREW BRACKET MOUNTING
139
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
139
HEXAGON HEAD BOLT , Replaced By: A0029902704
139
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
139
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
139
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
139
SCREW , Replaced By: N000961012051
139
SCREW , Replaced By: N308676012012
141
SPRING WASHER CAB FLOOR
142
SPACER TUBE MULTI-STAGE FUEL FILTER
145
SPRING WASHER CAB FLOOR
181
BRACKET FUEL FILTER
184
BRACKET FUEL FILTER
184
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4070900341
185
BRACKET FUEL FILTER
217
SCREW BRACKET TO ALTERNATOR
222
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
222
SCREW , Replaced By: N304017008016
227
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
227
SCREW BRACKET MOUNTING
232
NUT BRACKET TO SIDE MEMBER M12X1.5
232
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
235
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
235
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
235
SCREW BRACKET TO SIDE MEMBER M10X35
235
SCREW LEFT AND RIGHT CONSOLES TO CAB
235
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
235
SCREW , Replaced By: N000961012051
235
SCREW , Replaced By: N308676012015
235
SCREW , Replaced By: N308676012012
235
SCREW ,5 903514, Replaced By: N000960012353
235
SCREW , Replaced By: N304017012022
235
SCREW , Replaced By: N304017010051
235
SCREW BEARING BRACKET TO FRAME
235
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
235
SCREW MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER M 12X45
235
SCREW BRACKET TO SIDE MEMBER
235
CYLINDRICAL HEAD SCREW. SCREW TIGHTENER PULLEY TO LEVER M 12X1.5X30, 362 842770 364 012804 EXCEPT FOR 012768,012771,021773,012776,012779-012785 366 048719
235
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
235
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
235
SCREW TORSION BAR TO SHACKLE,5 903514
235
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
235
SCREW TRANSMISSION
235
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
235
SCREW BRACKET MOUNTING
235
HEXAGON HEAD BOLT , Replaced By: A0029902704
235
SCREW
235
SCREW MOUNTING PARTS M 12X65
235
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
235
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
236
NUT STRAP TO SUPPORT
237
BRANCH-OFF FITTING BRACKET TO TIMING CASE COVER
238
LINE FROM FUEL DISTRIBUTOR TO FEED PUMP
238
LINE FROM FUEL FILTER TO INJECTION PUMP
238
LINE FROM FUEL FEED PUMP TO FILTER
240
WASHER
240
WASHER RADIATOR TO RUBBER MOUNTING
247
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
247
LOCK WASHER FITTING TO BRACKET
248
BANJO UNION , Replaced By: N000000000363
248
BANJO UNION FEED
249
HOLLOW SCREW FUEL LINE TO FEED PUMP
249
HOLLOW SCREW , Replaced By: N915036010108
251
SEAL RING INJECTION PUMP
265
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
265
SCREW ANTI-FREEZE PUMP TO BRACKET,950272
265
SCREW BRACKET TO ALTERNATOR
267
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
267
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
267
SCREW , Replaced By: N304017008016
267
SCREW , Replaced By: N304014008018
267
HEX. HEAD. SCREW , Replaced By: N000931008221
267
SCREW BRACKET TO PLATE
267
SCREW 3/2-WAY VALVE TO BRACKET
269
SPACER TUBE BRACKET TO INTAKE MANIFOLD
269
SPACER TUBE BRACKET TO INTAKE MANIFOLD
271
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
428
HOLLOW SCREW FITTING LINE CONNECTION
428
HOLLOW SCREW FITTING INJECTION PUMP BLEEDING
432
SEAL RING INJECTION PUMP
436
HOLLOW SCREW FUEL LINE TO FEED PUMP
437
SEAL RINGTO 000 553 03 05,000 553 18 05,
496
CONNECTOR FUEL LEAK,152939
497
BANJO UNION , Replaced By: N000000000363
497
BANJO UNION FEED
499
NUT. UNION NUT RETURN
510
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
517
PIPE ELBOW
518
BANJO UNION , Replaced By: N000000000363
518
BANJO UNION FEED
519
FITTING RETURN
520
NUT. UNION NUT RETURN
521
NUT. UNION NUT RETURN
523
HOLLOW SCREW HEATING CONNECTION
523
HOLLOW SCREW FUEL LINE TO FEED PUMP
524
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
525
SEAL RING FUEL LINE TO FEED PUMP
526
SEAL RING INJECTION PUMP
527
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
527
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
528
CONNECTOR FUEL FEED AND FUEL RETURN TO FUEL DISTRIBUTOR
529
BANJO UNION FUEL LINES AND BREATHING
530
BANJO UNION FUEL TANK-TO-FUEL-PUMP FUEL LINE
532
FITTING
533
NUT. UNION NUT LINE CONNECTION
535
CUTTING RING. GLAND LINE CONNECTION
536
HOLLOW SCREW
573
NUT. UNION NUT RETURN
603
HOLLOW SCREW FUEL LINE TO FEED PUMP
781
BRACKET FUEL FILTER
782
BRACKET DISTRIBUTOR
789
SPRING WASHER STEERING COLUMN BRACKET TO CAB
790
NUT , Replaced By: N913023010002
790
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
806
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
806
SPRING WASHER CAB FLOOR
809
SCREW VALVE TO BRACKET M 8X55
809
SCREW , Replaced By: N304017008043
811
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
811
SCREW LEFT AND RIGHT CONSOLES TO CAB
811
SCREW , Replaced By: N308676012015
811
SCREW CONSOLE TO CONSOLE
811
SPRING WASHER CAB FLOOR
811
SCREW BRACKET MOUNTING
811
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
812
NUT , Replaced By: N304032008006
812
NUT
999
HOLLOW SCREW
999
SCREW FITTING , Replaced By: A4039971172
999
SCREW BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125008443
999
FITTING
999
HOSE , Replaced By: A6050780581
999
HOSE , Replaced By: A6154760326
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 421-422 105120, Replaced By: A4220900441
999
FILTER HEAD
999
BRACKET , Replaced By: A4230900341
999
FILTER , Replaced By: A4420900452
999
BRACKET , Replaced By: A4220901241
999
COVER , Replaced By: A4220920108
999
HOSE , Replaced By: A4079976482
999
BRACKET
999
HOSE , Replaced By: A4079976482
999
BRACKET , Replaced By: A4030900741
999
HOSE , Replaced By: A4279970982
999
HOSE
999
INTERMEDIATE PIECE , Replaced By: A4470780068
999
OIL LINE
999
HOSE , Replaced By: A0119977782
999
HOSE , Replaced By: A0119977782
999
BRACKET
999
BRACKET , NO LONGER AVAILABLE
999
HOSE , Replaced By: A6154760326
999
LINE FROM INJECTION PUMP OVERFLOW LINE TO FUEL FILTER OVERFLOW VALVE
999
LINE FROM PREFILTER TO FEED PUMP
999
ENGINE SUPPORT
999
BRACKET , Replaced By: A4230900341
999
BRACKET , Replaced By: A4030900741
999
BRACKET , Replaced By: A4030920840
999
BRACKET ,002101
999
BRACKET , Replaced By: A4030920540
999
BRACKET FUEL LEAK LINE
999
BRACKET MULTI-STAGE FUEL FILTER
999
HOSE , Replaced By: A6154760326
999
HOSE , Replaced By: A0119977782
999
HOSE , Replaced By: A0119977782
999
SCREENING , Replaced By: A4030700055
999
INTERMEDIATE PIECE , Replaced By: A4020700095
999
SPACER TUBE , Replaced By: A3872680153
