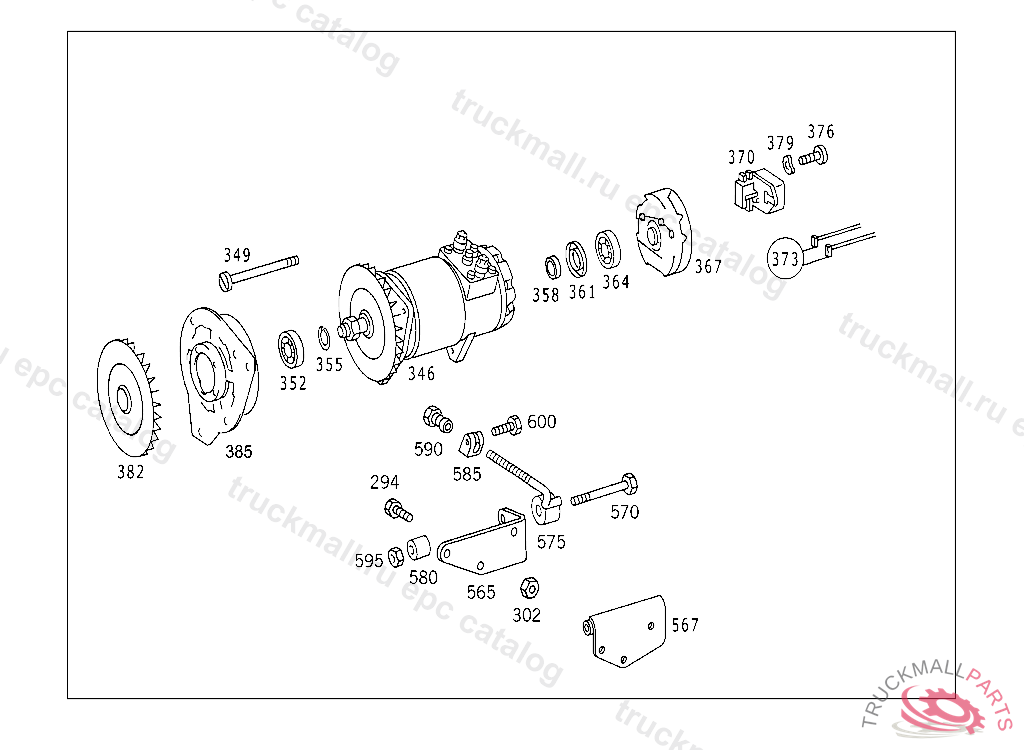

Поз.
Артикул
Описание
294
SCREW BRACKET TO CONSOLE
294
SCREW
294
SCREW , Replaced By: N304017010043
294
SCREW BRACKET TO SIDE MEMBER
302
NUT
346
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
346
ALTERNATOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 048224, Replaced By: A0091542502
346
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
349
SCREW HOUSING
352
BALL BEARING
355
SNAP RING
358
SPACER RING
361
SEAL RING
364
CYLINDR. ROLLER BEARING SLIP RING SIDE
367
RECTIFIER
370
REGULATOR AND CUT-OUT
370
REGULATOR AND CUT-OUT
373
CARBON BRUSH SET
376
SCREW FUSE BOX TO SIDE MEMBER,5 097182
376
SCREW , Replaced By: N000000001933
376
SCREWR & S, M 4X8
376
SCREW
379
SPRING WASHER ALTERNATOR CONNECTION D+
382
FAN
385
BEARING CAP
565
BRACKET
565
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 040594, Replaced By: A4471550927
567
SUPPORT
570
SCREW , Replaced By: N000961012208
570
SCREW BRACKET TO CONSOLE
570
BOLT. SCREW SUPPORT TO ALTERNATOR
575
CLAMPING BOLT (CLAMPING BOLT)
580
BUSHING , NOT USED
580
BUSHING
580
BUSHING
585
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
585
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
585
CLAMPING PIECE TIGHTENER PULLEY
590
NUT TIGHTENER PULLEY TO LEVER
595
NUT STRAP TO SUPPORT
600
SCREW LEFT AND RIGHT CONSOLES TO CAB
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
999
OIL FILLER NECK
999
OIL FILLER NECK
999
PROTECTIVE PLATE
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
SUPPORT REFRIGERANT COMPRESSOR, NOT USED
999
GASKET
999
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 12X1250 MM,D 180260
999
BUSHING
999
BUSHING
999
PULLEY
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
GUIDE TUBE
999
PULLEY THREE-GROOVE
999
INTERMEDIATE PIECE PULLEY
999
SUPPORT ALTERNATOR
999
CLAMPING BOLT (CLAMPING BOLT)
999
COVER
999
GASKET
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
PULLEY TWO-GROOVE
