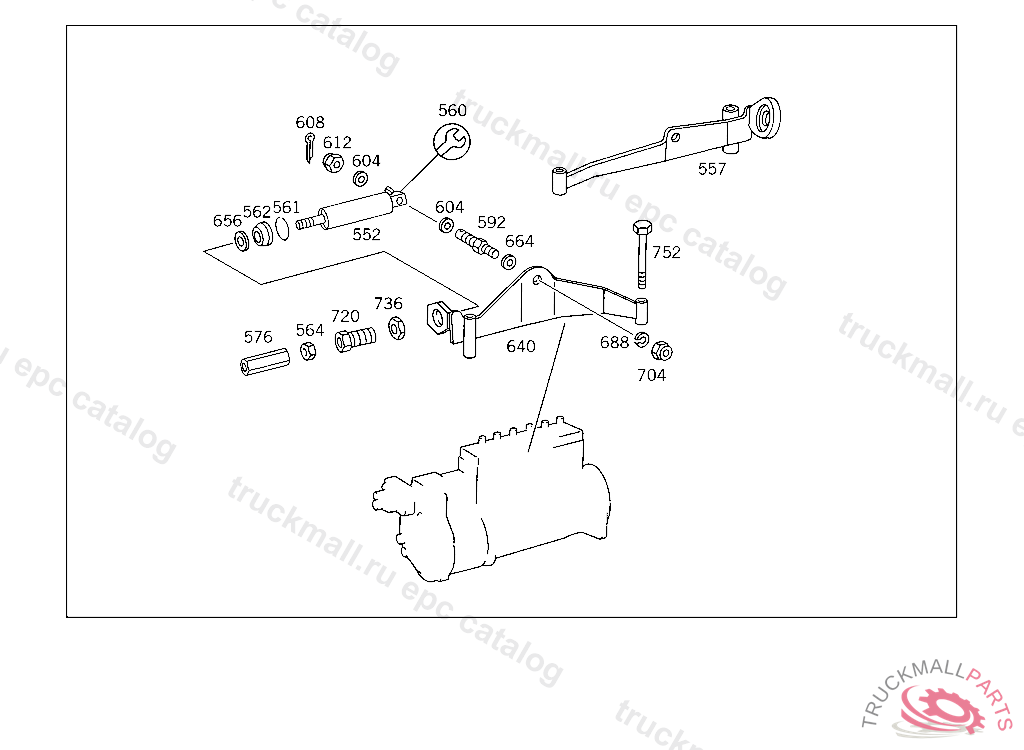

Поз.
Артикул
Описание
552
CYLINDER QUANTITY REDUCTION CONTROL,442-486390
552
CYLINDER (POWER CYLINDER)
552
CYLINDER INTERMEDIATE SPEED STOP
552
CYLINDER (POWER CYLINDER)
557
BRACKET INTERMEDIATE SPEED STOP TO INJECTION PUMP
557
BRACKET INTERMEDIATE SPEED STOP, TO BE ADAPTED DURING ASSEMBLY
557
BRACKET INTERMEDIATE SPEED STOP
560
BUSHINGTO 000 430 30 26/32 26
560
REPAIR KITTO 000 430 48 26,KNORR
560
BUSHING"WABCO"
561
SNAP RING
562
CUPTO 000 072 08 12
564
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
576
PIN INTERMEDIATE SPEED STOP
592
PIN INTERMEDIATE SPEED STOP
592
PIN CYLINDER TO BRACKET
604
WASHER EXHAUST MUFFLER TO STRAP
604
WASHER INTERMEDIATE SPEED STOP
604
WASHER , Replaced By: N000125008443
608
COTTER PIN STRAP TO CONSOLE
612
NUT , Replaced By: N913004008001
640
BRACKET INTERMEDIATE SPEED STOP
656
SEAL RING INTERMEDIATE SPEED STOP
664
WASHER BRACKET TO CROSS MEMBER
664
WASHER , Replaced By: N000125008443
664
WASHER EXHAUST MUFFLER TO STRAP
664
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
688
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
704
NUT , Replaced By: N913004008001
720
SLEEVE INTERMEDIATE SPEED STOP
736
NUT INTERMEDIATE SPEED STOP
752
SCREW BRACKET ON INJECTION PUMP BRACKET
999
PULL ROD FROM REAR CONTROL LEVER TO CONTROL SHAFT 600 MM, TO BE ADAPTED DURING ASSEMBLY
999
NUT L.H. THREAD
999
BALL PIVOT
999
WOODRUFF KEY INJECTION PUMP
999
PIN STRAP TO BRACKET
999
WASHER COVERING TO CAB
999
BRACKET , Replaced By: A4420722840
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 442 513557, Replaced By: A4420722340
999
BRACKET
999
LEVER INJECTION PUMP CONTROL
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420705921
999
CYLINDER (OPERATING CYLINDER), NOT USED
999
BRACKET
999
BRACKET , Replaced By: A4410700740, +001A4411400540, +006N000125008418, +004N000931008320, +002N000933008151, +002N000934008010, +004N007349008006
999
SPRING , Replaced By: A4429935110
999
PIN , Replaced By: A4421440574
999
LEVER ,608852, Replaced By: A4420703521
999
SHAFT CONTROL
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
SHAFT , Replaced By: A4220700723
999
BEARING BRACKET , Replaced By: A4220701524
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
SPRING , Replaced By: A4229930010
999
SPRING , Replaced By: A4039931010
999
SPACER TUBE
999
PIN , Replaced By: A4221440174, +001N999900008004
999
SPACER TUBE CYLINDER TO LEVER, NOT USED
999
PIN , Replaced By: A4030720574
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
LEVER , Replaced By: A4030708321
999
LEVER , Replaced By: A4030707621
999
BEARING BRACKET CONTROL SHAFT,145362,404 001277
999
BEARING BRACKET , Replaced By: A4220701824
999
BEARING BRACKET
999
LEVER , Replaced By: A4410700321
999
CYLINDER , Replaced By: A0000720412
999
BEARING BRACKET , Replaced By: A4030702624
999
BEARING BRACKET , Replaced By: A4030702724, +001A4030721250
999
BRACKET , Replaced By: A4230700140
999
CYLINDER , Replaced By: A0000720112, +001A4030720324, +001A4039910022, +002N000934006007
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
CYLINDER , Replaced By: A0000720112
999
CYLINDER
999
SPACER TUBE , Replaced By: A6673170253
999
BUSHING , Replaced By: A4039920001
999
WASHER , Replaced By: N000988008006
999
LEVER
999
BALL PIVOT LEVER
999
TUBE GUIDE TUBE TO CYLINDER HEAD
999
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0069971672
999
BALL SOCKET PULL ROD TO LEVER
999
BUSHING , Replaced By: A0004340850
999
CYLINDER , Replaced By: A0004304926
999
CYLINDER , Replaced By: A0004302326
999
CYLINDER (OPERATING CYLINDER)
999
CYLINDER , NOT USED
999
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
999
CYLINDER , Replaced By: A0000721512
999
CYLINDER INJECTION PUMP CONTROL
999
CYLINDER , Replaced By: A0004304826
999
CYLINDER , Replaced By: A0000720812
999
CYLINDER , Replaced By: A0000720612, +001A4030720574
999
CYLINDER , 364 021703 366 061186, Replaced By: A0000721512, +001A3649910322, +001N900071008100
999
REGULATING UNIT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 258570/92, Replaced By: A0000720265
999
CYLINDER , Replaced By: A0000723212
999
CYLINDER , Replaced By: A0000701983, +001A4410721740, +001A4412230641
999
CYLINDER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 051317, Replaced By: A0000701583
999
STOP INTERMEDIATE SPEED STOP
999
STOP INTERMEDIATE SPEED STOP
