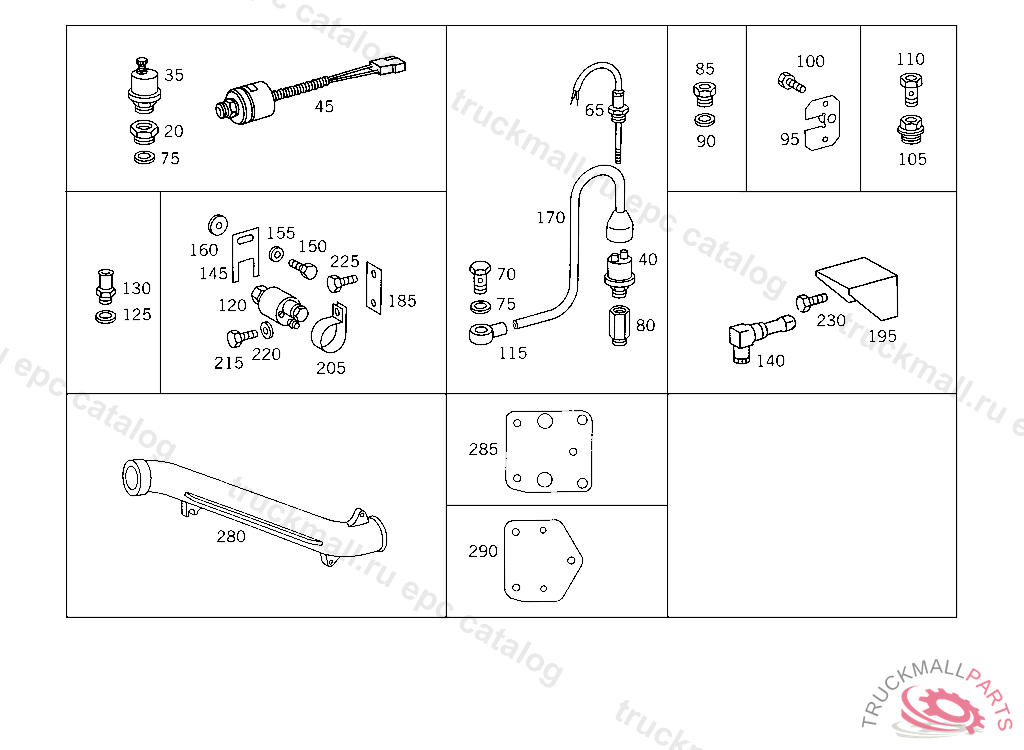

Поз.
Артикул
Описание
20
INTERMEDIATE PIECE OIL PRESSURE GAUGE TO CYLINDER CRANKCASE
20
INTERMEDIATE PIECE
20
INTERMEDIATE PIECE
20
SCREW PLUG , Replaced By: A4420110077
35
SENDER UNIT OIL PRESSURE GAUGE
35
SENDER UNIT OIL PRESSURE GAUGE
35
SENDER UNIT OIL PRESSURE GAUGE SENDER UNIT
35
SENDER UNIT OIL PRESSURE GAUGE
35
PRESSURE SWITCH OIL PRESSURE
40
SENDER UNIT OIL COOLER M 14
40
SENDER UNIT OIL PRESSURE GAUGE WITH WARNING CONTACT
40
SENDER UNIT OIL PRESSURE GAUGE WITH WARNING CONTACT
40
SWITCH OIL PRESSURE GAUGE SENDER UNIT
40
SENDER UNIT TEMPERATURE
40
SENDER UNIT OIL PRESSURE GAUGE WITH WARNING CONTACT
40
SENDER UNIT OIL PRESSURE GAUGE
40
SENDER UNIT , Replaced By: A0125422217
40
SENDER UNIT , Replaced By: A0095424917
45
SENDER UNIT OIL PRESSURE GAUGE WITH WARNING CONTACT
65
SENDER UNIT TEMPERATURE SENDER UNIT
65
TEMPERATURE GAUGE RESISTOR
65
SENDER UNIT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0035429905
70
HOLLOW SCREW
75
SEAL RING VALVE TO VALVE,K 025179
80
INTERMEDIATE PIECE TO PLUG BORE USED FOR OIL PRESSURE GAUGE SENDER UNIT
85
INTERMEDIATE PIECE TEMPERATURE SENDER UNIT TO LEFT FRONT CORE HOLE
90
SEAL RING TEMPERATURE GAUGE SENDER UNIT
95
BRACKET RPM SENSOR
100
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
105
CONNECTOR OIL FEED LINE TO CYLINDER CRANKCASE
110
HOLLOW SCREW OIL FEED LINE TO CYLINDER CRANKCASE
115
BANJO UNION OIL PRESSURE GAUGE CONNECTION
120
SENDER UNIT ELECTRIC TACHOMETER
120
SENDER UNIT , Replaced By: A0095425917
125
SEAL RINGTO 000 553 03 05,000 553 18 05,
130
CONNECTOR AT COOLING WATER OUTLET
140
SENDER UNIT ELECTRIC TACHOMETER,WITH CABLE
145
LOCK SENDER UNIT TO CYLINDER CRANKCASE
150
SCREW BRACKET TO SIDE MEMBER
150
SCREW , Replaced By: N304017010002
155
WASHER , Replaced By: N007349010007
155
WASHER STRUT TO CROSS MEMBER
160
WASHER BRACKET TO APPARATUS SUPPORT
170
CABLE OIL PRESSURE GAUGE SENDER UNIT, ORDER BY THE METER
185
BRACKET
195
BRACKET
205
CLAMP LINE MOUNTING
205
CLAMP , Replaced By: A3829950101
215
SCREW , Replaced By: N304017008021
215
SCREW PIPE CLAMP
215
SCREWM 10X20
220
SPACER TUBE
220
WASHER STRUT TO CROSS MEMBER
220
WASHER , Replaced By: N007349010007
225
SCREW REAR EXHAUST PIPE TO MUFFLER
230
SCREW BRACKET TO INTAKE MANIFOLD
230
SCREW , Replaced By: N007984008003
280
AIR LINE
285
BRACKET CHARGE AIR PIPE
290
BRACKET CHARGE AIR PIPE
999
NUT
999
FITTING TWO-WAY VALVE "12",4 4121264 691315
999
SCREW PLUG OIL COOLER,5 360280
999
HOSE MAIN LUBRICATING LINE,PUMP,DISTRIBUTOR 10X2 MM, ORDER BY THE METER
999
CONNECTOR OIL FEED LINE TO CYLINDER CRANKCASE, NOT USED
999
SEAL RING INJECTION PUMP
999
SEAL RING SOLENOID VALVE A 18X24
999
SCREW PLUG WATER SEPARATOR
999
SCREW PLUG
