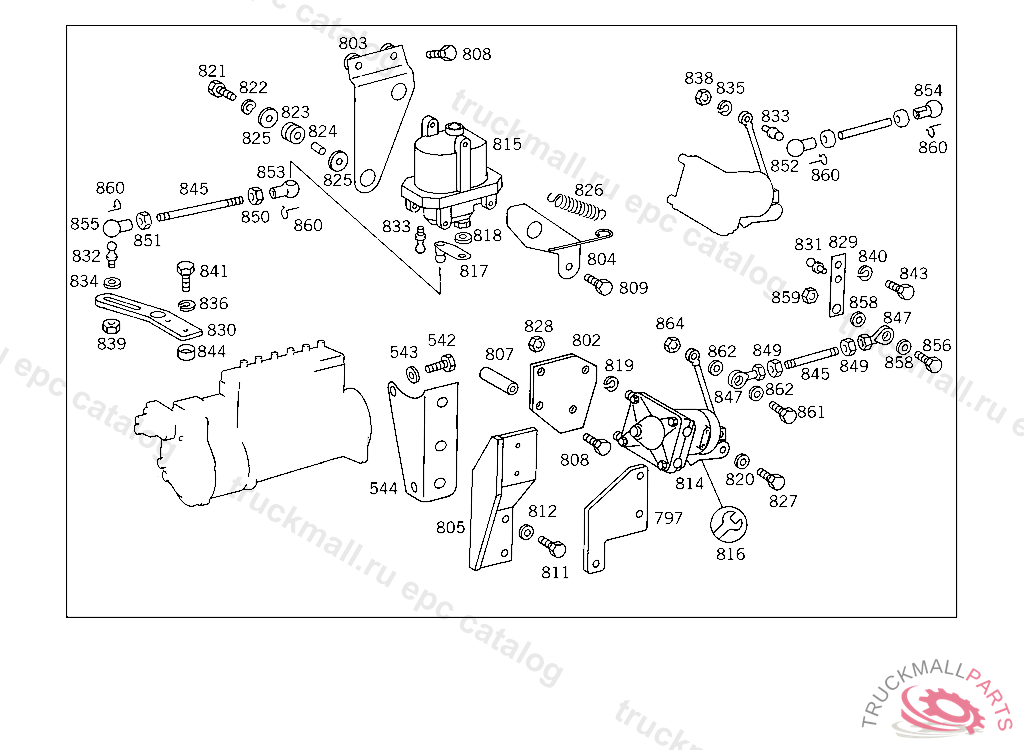

Поз.
Артикул
Описание
542
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
543
WASHER RADIATOR TO RUBBER MOUNTING
544
BRACKETFUER DRUCKLUFTSTELLGERAET
797
BRACKET REGULATING UNIT
797
BRACKET REGULATING UNIT
802
BRACKET
802
BRACKET
802
BRACKET REGULATING UNIT
803
BRACKET
804
BRACKET
805
BRACKET
807
SPACER TUBE BRACKET TO INTAKE MANIFOLD
808
SCREW SOLENOID VALVE TO BRACKET
808
SCREW , Replaced By: A0069909101
808
SCREW , Replaced By: N304014008011
808
SCREW CLUTCH TO FLYWHEEL
808
SCREWM X 110
808
SCREW OIL FILTER TO CYLINDER CRANKCASE
808
SCREW BRACKET TO INJECTION PUMP GOVERNOR HOUSING
808
SCREW , WITH DIESEL ENGINE
809
SCREW , Replaced By: A4429905901
809
SCREW STEERING SUPPORT TO FRAME M 10X75
809
SCREW BRACKET TO INJECTION PUMP M 10X76
811
SCREW SOLENOID VALVE TO BRACKET
812
WASHER , Replaced By: N000125015019
812
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
814
REGULATING UNIT
815
MOTOR REGULATING UNIT
816
REPAIR KIT REGULATING UNIT
817
TIMING LEVER
818
SEAL RING MODULATION PRESSURE CONTROL
819
SPRING WASHER , Replaced By: N000137008212
819
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
820
WASHER EXHAUST MUFFLER TO STRAP
820
WASHER , Replaced By: N000125008443
820
WASHER , Replaced By: N009021006208
820
WASHER COMPRESSED AIR LINE TO BRACKET
821
SCREW , Replaced By: N000000001479
821
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
822
SPRING WASHER LICENSE PLATE TO BRACKET
823
GROMMET ACTUATOR TO BRACKET
823
GROMMET , Replaced By: A1029970081
824
SPACER TUBE OIL LINE TO BRACKET,K 093236
825
WASHER ACTUATOR TO BRACKET
826
SPRING (RELEASE SPRING)
827
SCREW , Replaced By: N304017008021
827
SCREW , Replaced By: N304017008016
827
SCREW PIPE CLAMP
827
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
828
NUT , Replaced By: N910113006001
828
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
828
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
829
LEVER (CONTROL LEVER),447-037487
829
LEVER (CONTROL LEVER)
829
LEVER , Replaced By: A6674710541
829
BRACKET AT CROSS MEMBER
830
LEVER
831
BALL PIVOT
831
BALL PIVOT
832
BALL PIVOT
833
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
834
SEAL RING MODULATION PRESSURE CONTROL
835
SPRING WASHER , Replaced By: N000137008212
835
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
836
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
838
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
839
NUT BALL PIVOT TO LEVER
840
SPRING WASHER LICENSE PLATE TO BRACKET
841
SCREW , WITH DIESEL ENGINE
843
SCREW PUMP TO BRACKET
843
SCREW BRACKET ON LOAD SENSOR
843
SCREW , Replaced By: N304017006016
844
BUSHING FUEL LINE FIXTURE
845
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
845
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
845
ROD FROM FINAL CONTROL ELEMENT TO CONTROL
845
PULL ROD BRACKET TO FRAME
847
BALL PIN PULL ROD, UP TO ENGINE 387047 YEAR OF MANUFACTURE 1995
849
NUT
849
NUT , Replaced By: A0009900851
849
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
850
NUT BALL PIVOT TO LEVER
851
NUT L.H. THREAD
852
BALL SOCKET ROD TO BALL PIVOT
853
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
854
BALL SOCKET
855
BALL SOCKET L.H. THREAD
856
SCREW BRACKET TO CROSS CONNECTION STRUT
856
SCREW , Replaced By: N304017008034
858
WASHER , Replaced By: N000125008443
858
WASHER EXHAUST MUFFLER TO STRAP
859
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
860
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
860
SECURING CLIP. CIRCLIP
861
SCREW BRACKET TO CROSS CONNECTION STRUT
862
WASHER EXHAUST MUFFLER TO STRAP
862
WASHER , Replaced By: N000125008443
864
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
STOP INTERMEDIATE SPEED STOP
999
STOP INTERMEDIATE SPEED STOP
999
CYLINDER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 051317, Replaced By: A0000701583
999
CYLINDER , Replaced By: A0000701983, +001A4410721740, +001A4412230641
999
CYLINDER , Replaced By: A0000723212
999
REGULATING UNIT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 258570/92, Replaced By: A0000720265
999
CYLINDER , 364 021703 366 061186, Replaced By: A0000721512, +001A3649910322, +001N900071008100
999
CYLINDER , Replaced By: A0000720612, +001A4030720574
999
CYLINDER , Replaced By: A0000720812
999
CYLINDER , Replaced By: A0004304826
999
CYLINDER INJECTION PUMP CONTROL
999
CYLINDER , Replaced By: A0000721512
999
CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0000720512, +001A4420720624
999
CYLINDER , NOT USED
999
CYLINDER (OPERATING CYLINDER)
999
CYLINDER , Replaced By: A0004302326
999
CYLINDER (POWER CYLINDER)
999
CYLINDER , Replaced By: A0004304926
999
BUSHING , Replaced By: A0004340850
999
BALL SOCKET PULL ROD TO LEVER
999
FITTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0069971672
999
TUBE GUIDE TUBE TO CYLINDER HEAD
999
BALL PIVOT LEVER
999
LEVER
999
WASHER , Replaced By: N000988008006
999
BUSHING , Replaced By: A4039920001
999
SPACER TUBE , Replaced By: A6673170253
999
CYLINDER
999
CYLINDER , Replaced By: A0000720112
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
CYLINDER , Replaced By: A0000720112, +001A4030720324, +001A4039910022, +002N000934006007
999
BRACKET , Replaced By: A4230700140
999
BEARING BRACKET , Replaced By: A4030702724, +001A4030721250
999
BEARING BRACKET , Replaced By: A4030702624
999
CYLINDER , Replaced By: A0000720412
999
LEVER , Replaced By: A4410700321
999
BEARING BRACKET
999
BEARING BRACKET , Replaced By: A4220701824
999
BEARING BRACKET CONTROL SHAFT,145362,404 001277
999
LEVER , Replaced By: A4030707621
999
LEVER , Replaced By: A4030708321
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 590957, Replaced By: A4420702521
999
PIN , Replaced By: A4030720574
999
SPACER TUBE CYLINDER TO LEVER, NOT USED
999
PIN , Replaced By: A4221440174, +001N999900008004
999
SPACER TUBE
999
SPRING , Replaced By: A4039931010
999
SPRING , Replaced By: A4229930010
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
BEARING BRACKET , Replaced By: A4220701524
999
SHAFT , Replaced By: A4220700723
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
SHAFT CONTROL
999
LEVER ,608852, Replaced By: A4420703521
999
PIN , Replaced By: A4421440574
999
SPRING , Replaced By: A4429935110
999
BRACKET , Replaced By: A4410700740, +001A4411400540, +006N000125008418, +004N000931008320, +002N000933008151, +002N000934008010, +004N007349008006
999
BRACKET
999
CYLINDER (OPERATING CYLINDER), NOT USED
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420705921
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER INJECTION PUMP CONTROL
999
BRACKET
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 442 513557, Replaced By: A4420722340
999
BRACKET , Replaced By: A4420722840
999
WASHER COVERING TO CAB
999
PIN STRAP TO BRACKET
999
WOODRUFF KEY INJECTION PUMP
999
BALL PIVOT
999
PULL ROD FROM REAR CONTROL LEVER TO CONTROL SHAFT 600 MM, TO BE ADAPTED DURING ASSEMBLY
