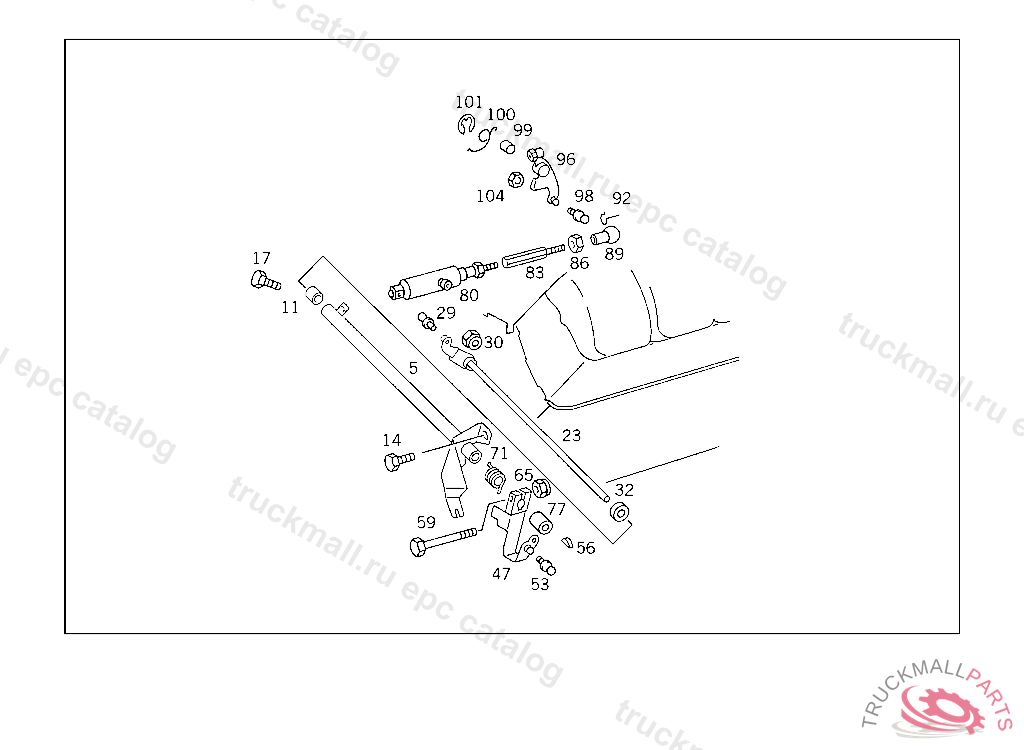

Поз.
Артикул
Описание
5
BEARING BRACKET , Replaced By: A4420701319
11
BUSHING MOUNTING
14
SCREW BEARING BRACKET TO CYLINDER CRANKCASE
17
SCREW , Replaced By: N304017010028
23
SHAFT ,460462
29
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
29
BALL PIVOT ACCELERATOR PEDAL,4 859026
30
NUT , Replaced By: N913004006001
32
COVERING
47
LEVER , Replaced By: A4420701621
53
BALL PIVOT
56
WOODRUFF KEY
59
SCREW CONNECTOR
65
NUT , Replaced By: N913004006001
71
SPRING CONTROL SHAFT LEVER ASSEMBLY TO CONTROL SHAFT
71
SPRING , Replaced By: A4429935010
71
SPRING (RELEASE SPRING)
77
BUSHING
80
CYLINDER INJECTION PUMP CONTROL
80
CYLINDER , Replaced By: A0000721512
83
ROD
86
NUT , Replaced By: A0009900851
89
BALL SOCKET
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
96
LEVER , Replaced By: A4420701721
98
BALL PIVOT LEVER
98
BALL PIVOT , Replaced By: A3129910120
99
BUSHING MOUNTING
100
SPRING CONTROL
101
LOCK PLATE
104
NUT BALL PIVOT TO LEVER
104
NUT SPRING-LOADED PUSH ROD
