Поз.
Артикул
Описание

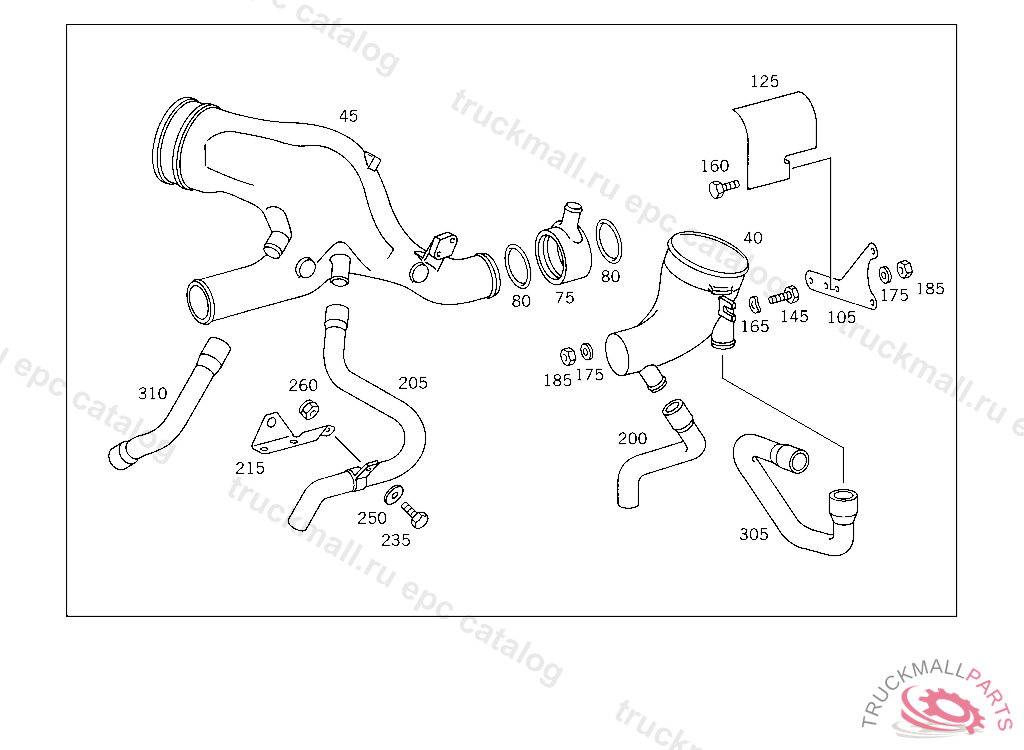

40
INTAKE PIPE (AIR INTAKE PIPE)
45
INTAKE PIPE FROM AIR INTAKE PIPE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
75
CONNECTING PIPE AIR INTAKE PIPE TO TURBOCHARGER
80
SEAL RING AIR INTAKE PIPE TO TURBOCHARGER
105
BRACKET AIR INTAKE PIPE
125
SCREENING ON AIR INTAKE PIPE BRACKET
145
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
160
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
160
CLAMP25-40X13 MM
160
LOOM TIE , Replaced By: N000000000668
165
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
165
SPRING WASHER , Replaced By: N000137008212
175
WASHER , Replaced By: N000125008443
175
WASHER EXHAUST MUFFLER TO STRAP
185
NUT
200
BREATHER PIPE ENGINE BREATHING
200
BREATHER PIPE
205
BREATHER PIPE ENGINE BREATHING
215
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420785641, +001A4420901641
215
BRACKET BREATHER PIPE
235
SCREW STOP TO BATTERY CASE
235
SCREW , Replaced By: N304017006016
235
SCREW PUMP TO BRACKET
250
WASHER BRACKET TO LEFT SIDE MEMBER
250
WASHER , Replaced By: N009021008213
250
WASHER , Replaced By: N009021006208
250
WASHER COMPRESSED AIR LINE TO BRACKET
260
NUT BALL PIVOT TO LEVER
260
NUT ENGINE MOUNTING M8
260
HEXAGON NUT. NUT , Replaced By: N913023008002
305
HOSE
310
HOSE INTAKE LINE, TO BE ADAPTED DURING ASSEMBLY
310
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
310
HOSE AIR COMPRESSOR CONNECTION
999
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE,5 158927
999
SCREW FITTING LUBRICATING LINE
999
HOLLOW SCREW OIL RETURN PIPE
999
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
999
SEAL RINGTO 376 131 74 01
999
SEAL RING PNEUMATIC VALVE
999
INTAKE MANIFOLD (AIR INTAKE PIPE)
999
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE R08263, Replaced By: A5061400601
999
GASKET AIR INTAKE PIPE
999
INTAKE PIPE
999
AIR INTAKE PIPE CONNECTION OF AIR INTAKE PIPES
999
BRACKET MANUAL FEED PUMP
999
BRACKET
999
HOSE (MOLDED HOSE)
999
BRACKET AIR INTAKE PIPE
999
INTAKE PIPE (AIR INTAKE PIPE)
999
INTAKE PIPE (AIR INTAKE PIPE)
999
BRACKET AIR INTAKE PIPE
999
INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
BREATHER PIPE BREATHER LINE TO OIL SEPARATOR
999
INTAKE PIPE (AIR INTAKE PIPE)
999
AIR INTAKE PIPE , SEE SA 18540/72
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 716010, Replaced By: A4420784741
999
BRACKET BREATHER PIPE,702492
999
FITTING INTAKE MANIFOLD
